Brand: ETZIN

Color: Black

Features:

• Strong Compatibility: MSATA hard drive adapter card has strong compatibility and supports M.2 modules in 2280, 2260, 2242 and 2230 formats.
• High Speed Transmission: M.2 to SATA converter adapter high speed data transmission, strong and stable performance, convenient for your operation.
• Two in One: MSATA hard drive adapter card two in one adapter card, supports M.2 or mSATA SSD to SATA.
• PCB Material: M.2 to SATA adapter adopts high quality and strong PCB material, which is wear resistant and durable, and can be used for a long time.
• Plug and Play: SATA M.2 hard drive adapter card is easy to install, no driver is needed, plug and play, and no time is wasted.

model number: EPL-423HS

Part Number: 3N-FZ7T-817N

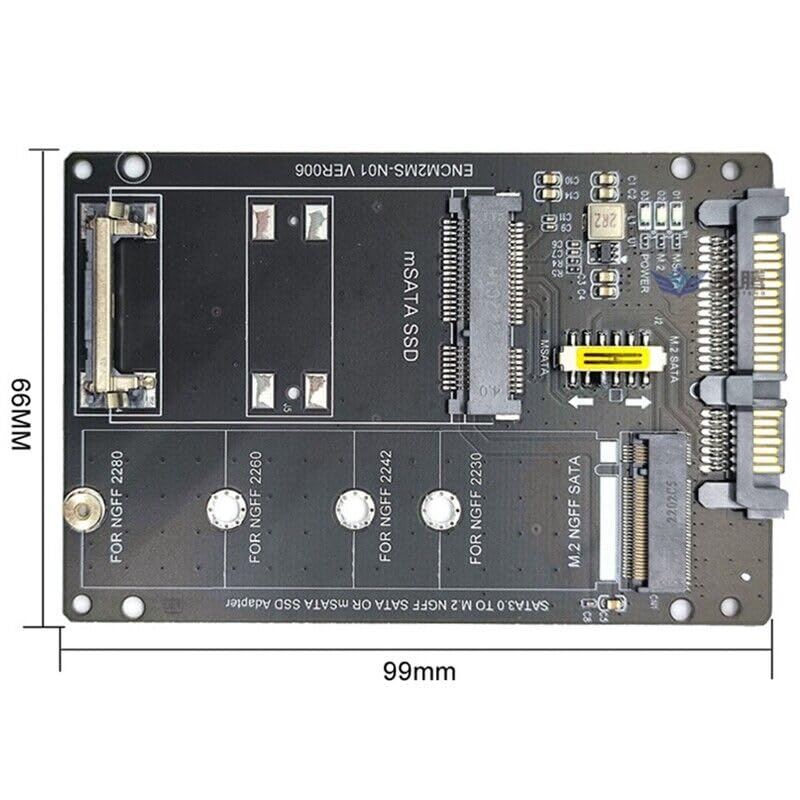

Details: Specifications and functions:
* From M.2 (NGFF) and mSATA to SATAIII module
* Built-in MINI PCI-e 52-pin female connector
* Built-in M.2 (NGFF) B key female connector
* Supports 4 sizes of NGFF M.2 socket SSDs: Type 2230, Type 2242, Type 2260, Type 2280
* Supports high-speed SATA3 / 6Gbps large-capacity storage interface
* Transparent to the operating system and does not require a software driver

* Please note:

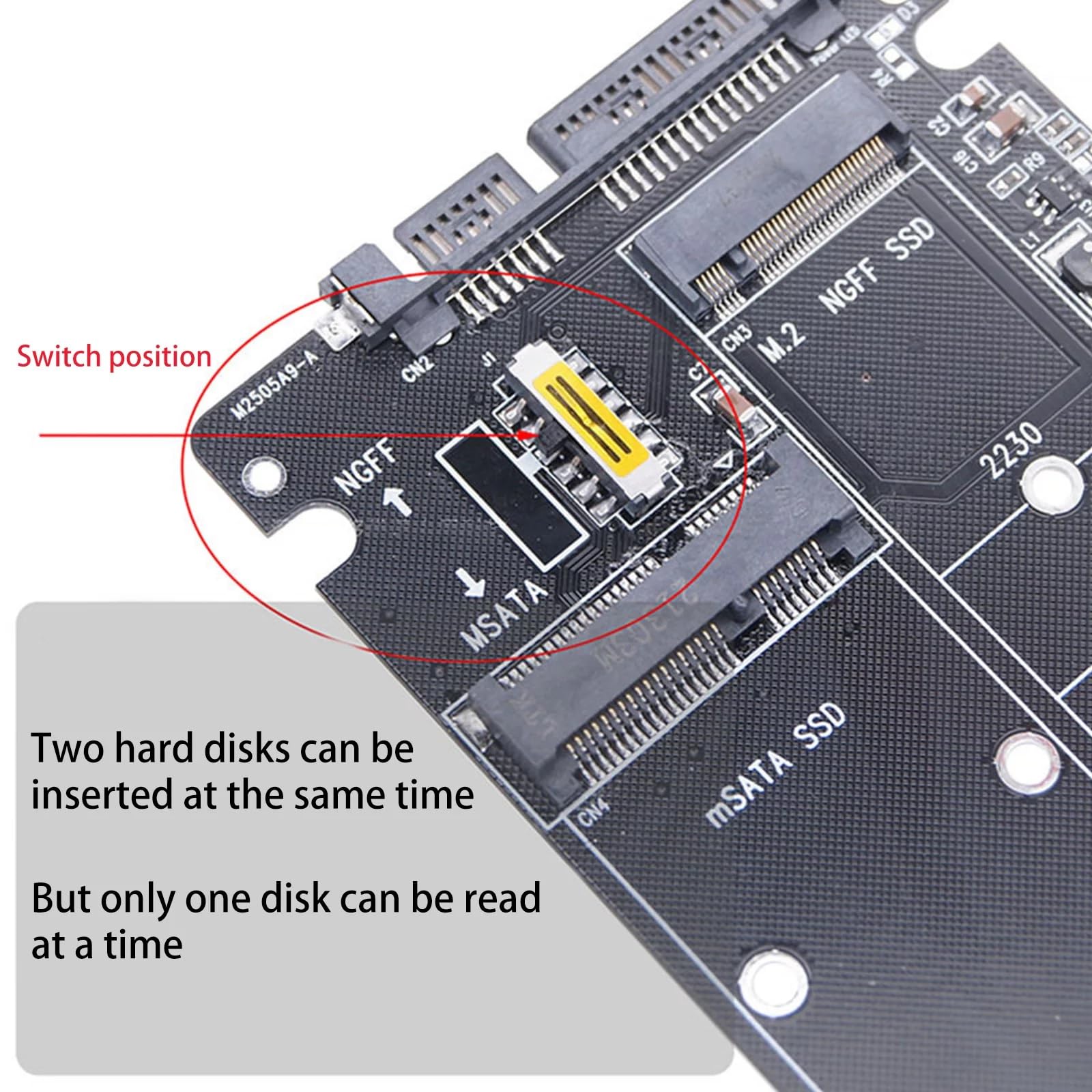

1. MSATA and M.2 NGFF SSD cannot be operated at the same time, you need to use a switch to convert.
2. Only one SSD can be identified at a time.
3. When using SATA M.2 NGFF SSD, adjust the switch to NGFF, and when using mSATA MINI PCI-e SSD, adjust the switch to mSATA.
4. NVMe PCIE x2 and NVMe PCIE x4 SSD are not supported.
5.SATA MINI PCI-E and MICRO SATA SSD are not supported.

Package Dimensions: 4.6 x 3.0 x 0.4 inches
