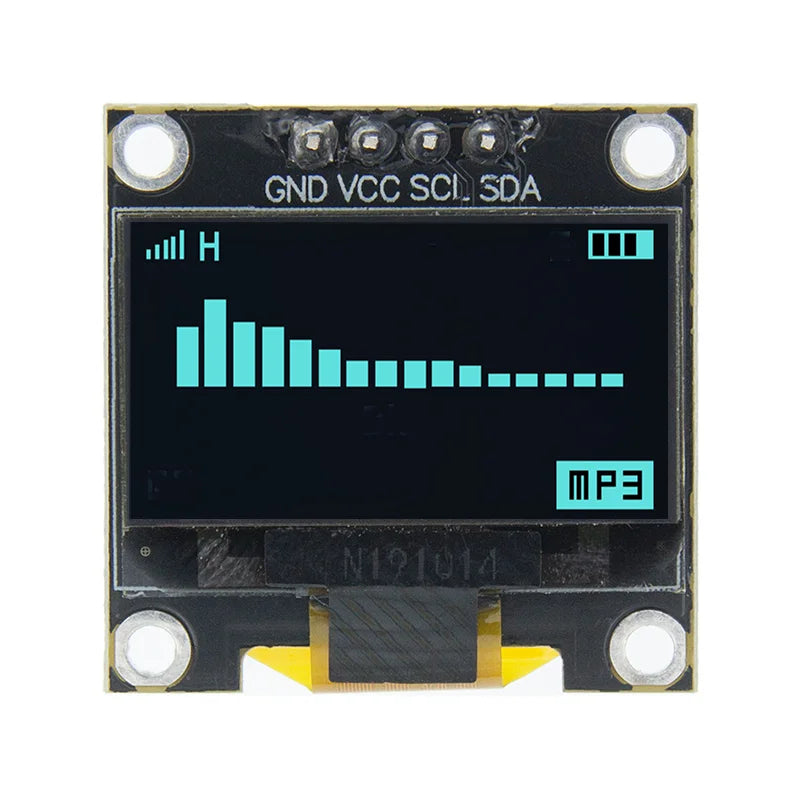

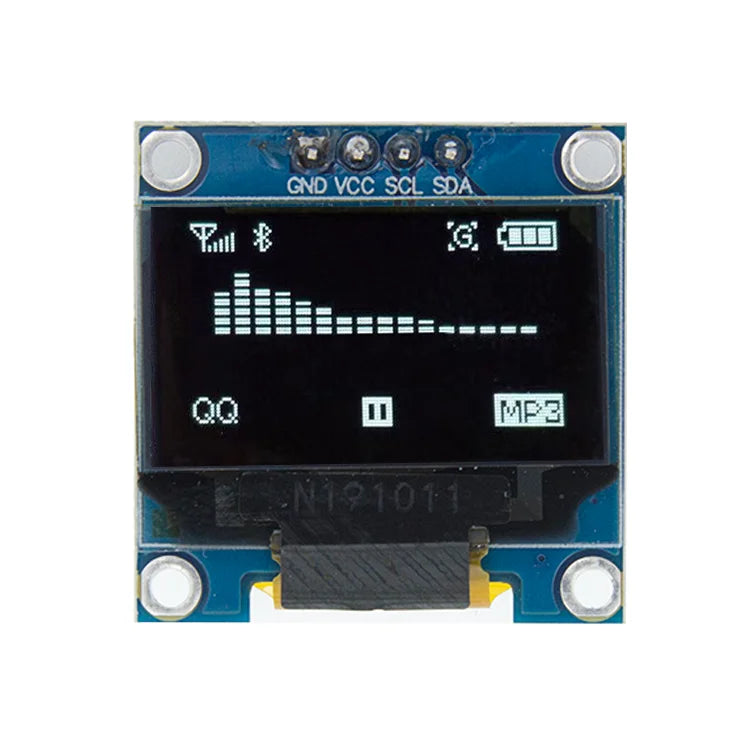

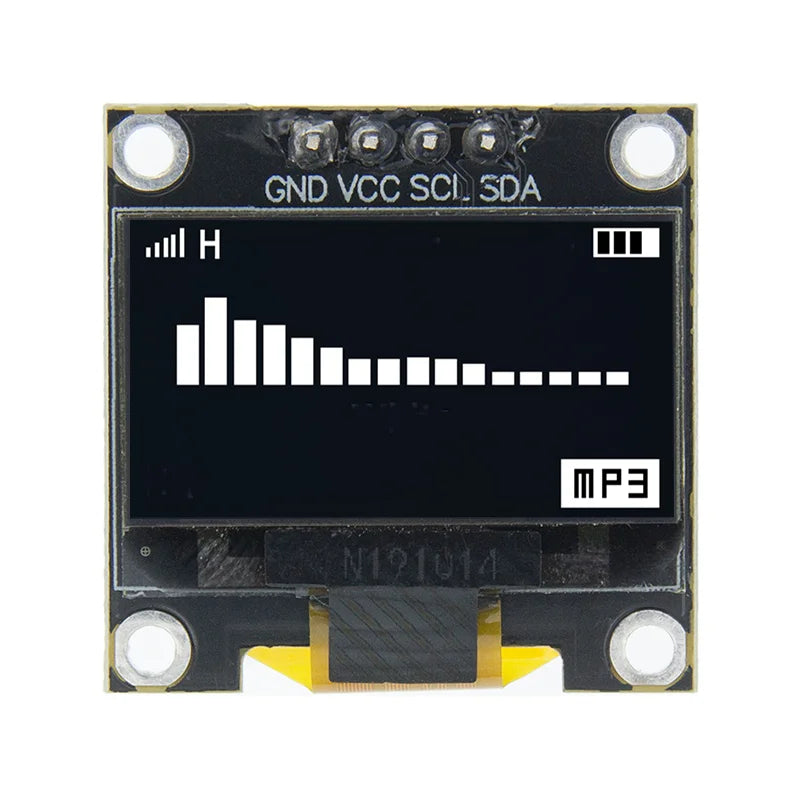

0.96 inch IIC Serial 4pin White/Blue/Yellow Blue/Yellow OLED Display Module 128X64 12864 LCD Screen Board for arduino oled

0.96 inch IIC Serial 4pin White/Blue/Yellow Blue/Yellow OLED Display Module 128X64 12864 LCD Screen Board for arduino oled

Rs. 179.39 INR
Rs. 179.39 INR Rs. 179.39 INR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color

SPECIFICATIONS

Brand Name: NONE

Choice: yes

Display Mode: 128*64

Model Number: 0.96

Origin: Mainland China

Resolution: 128*64

Type: oled

is_customized: Yes




128*64 LED display module for Arduino, supports many control chip.
Fully compatible with for Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
With embedded driver/controller
Interface type is IIC

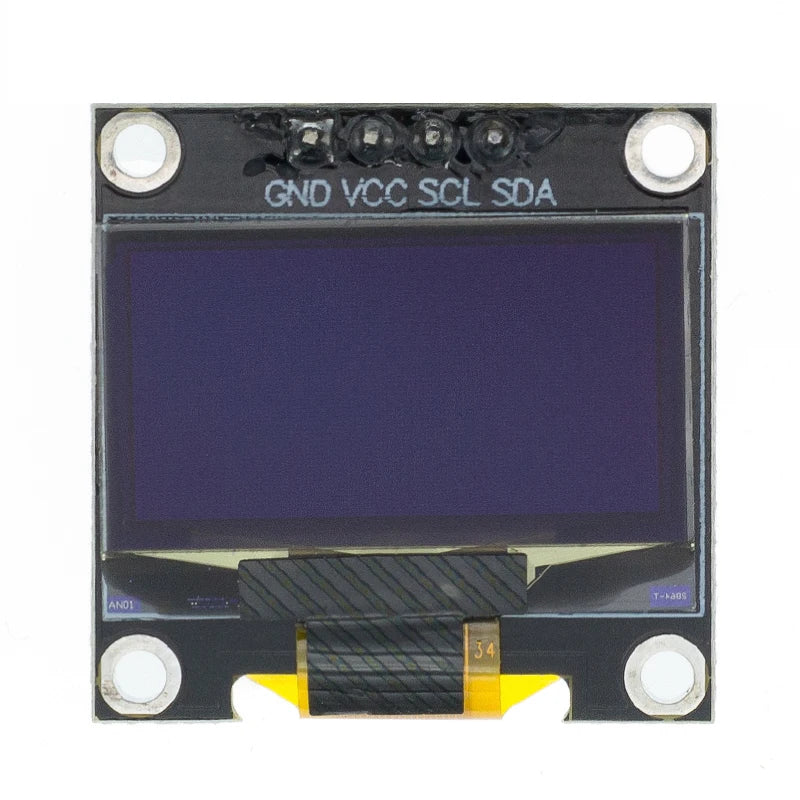

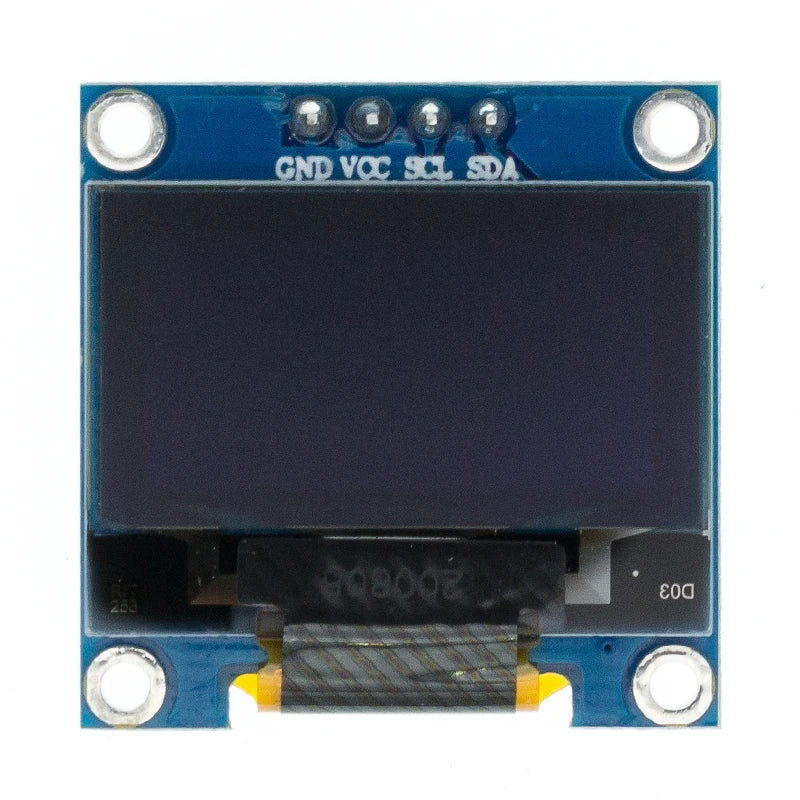

Pin Definition: GND, VCC ,SCL, SDA
Pins: 4 pins
Voltage: 3V ~ 5V DC
Working Temperature: -30 ° ~ 70 °
Character Colors: White
Drive Duty: 1/64 Duty
High resolution: 128 * 64
Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)

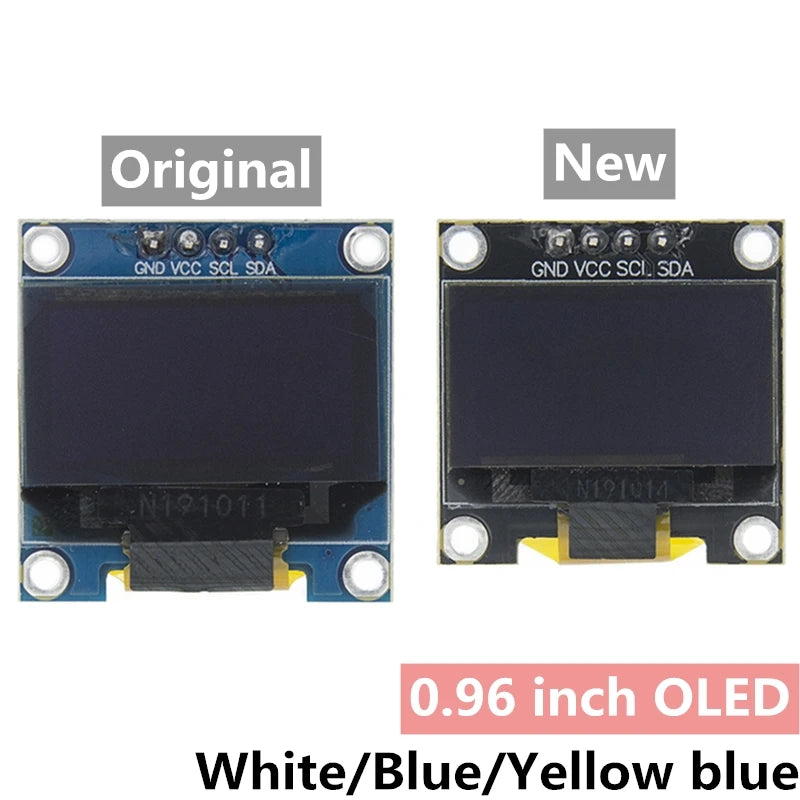

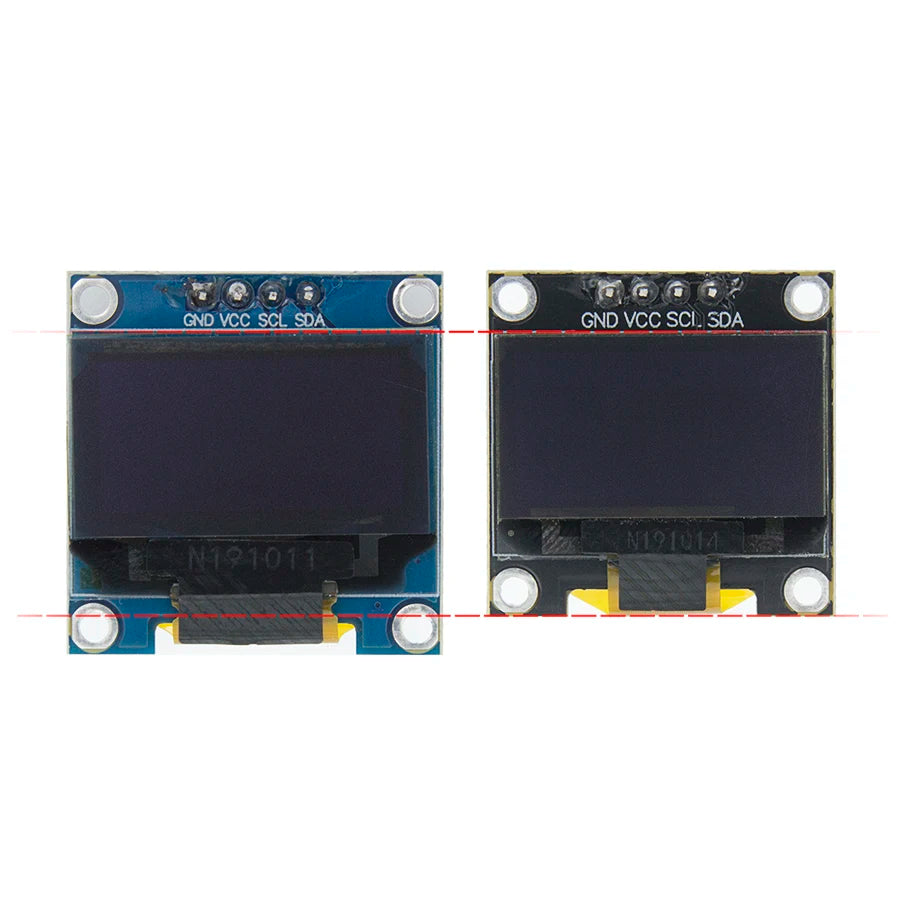

Driver IC: SSD1306(Original) ，SSD1315（NEW）
Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness
Package Included:
1PC*128x64 Yellow Blue LED display module for Arduino
