SPECIFICATIONS

Application: Computer

Brand Name: NoEnName_Null

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: SMD

Type: buck (stepdown) regulator

is_customized: Yes

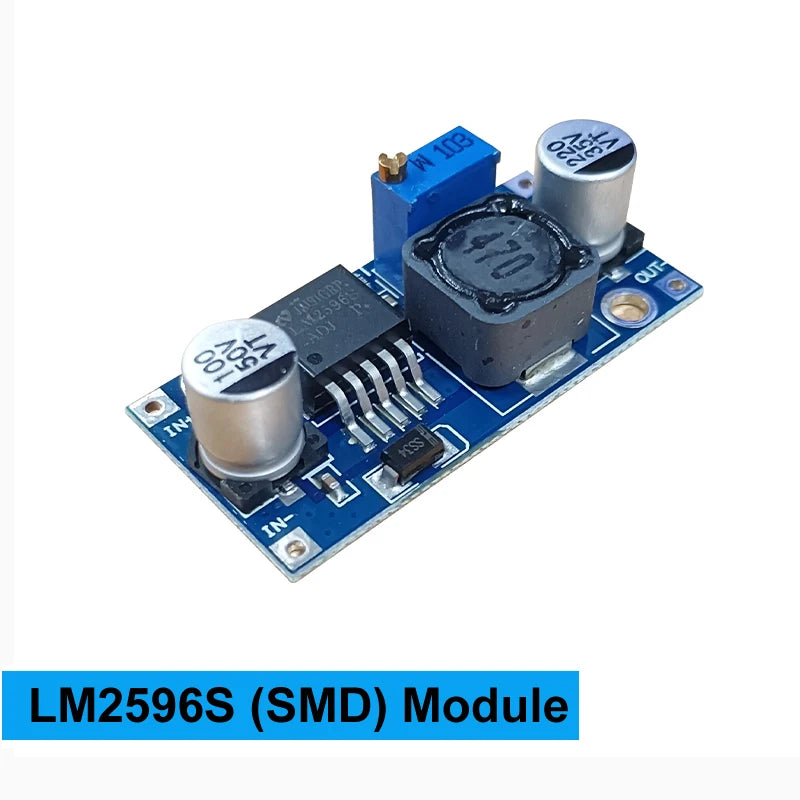

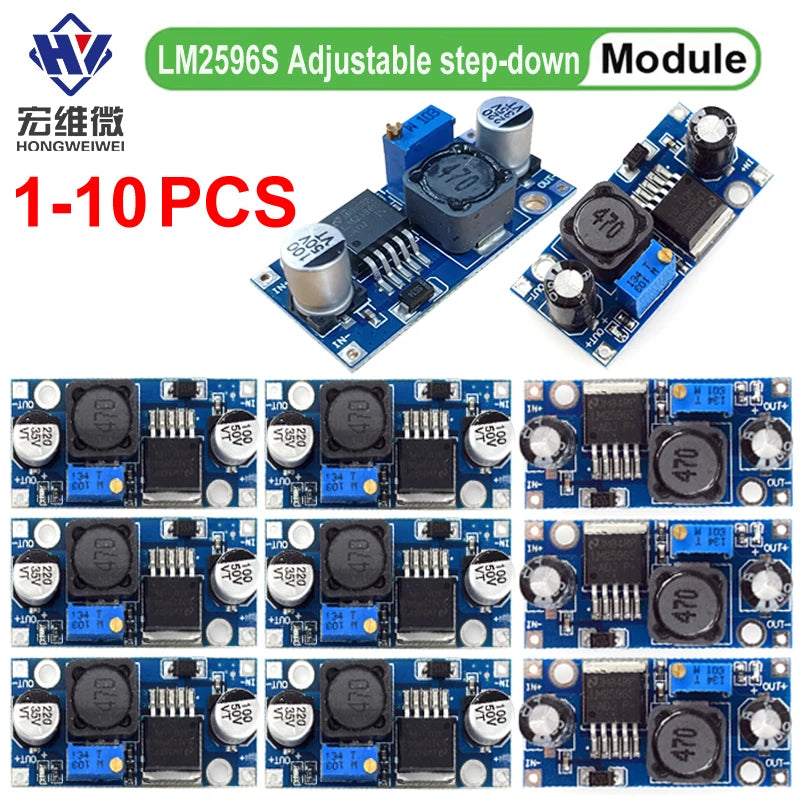

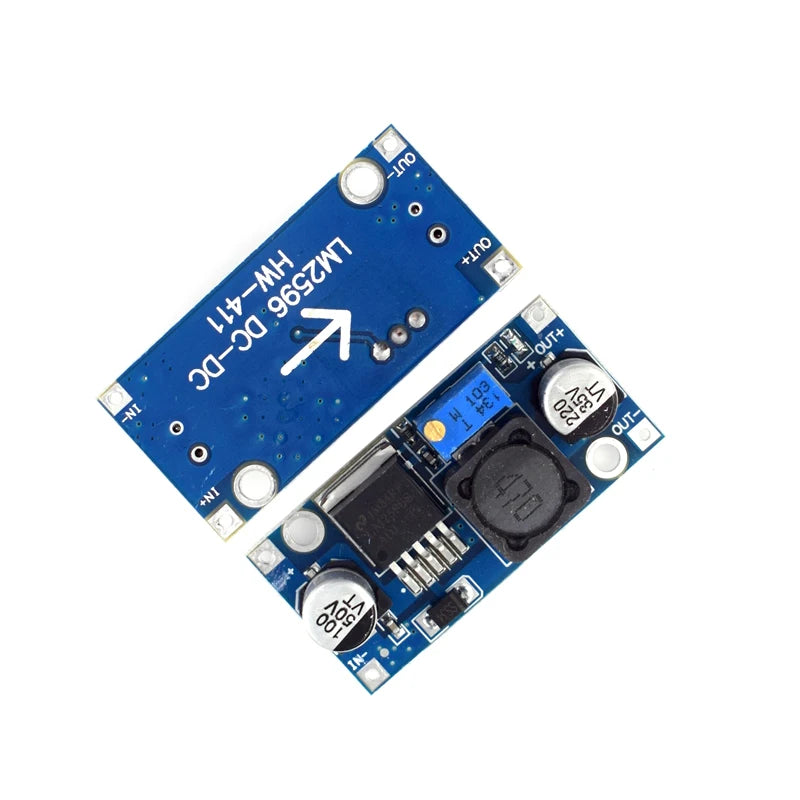

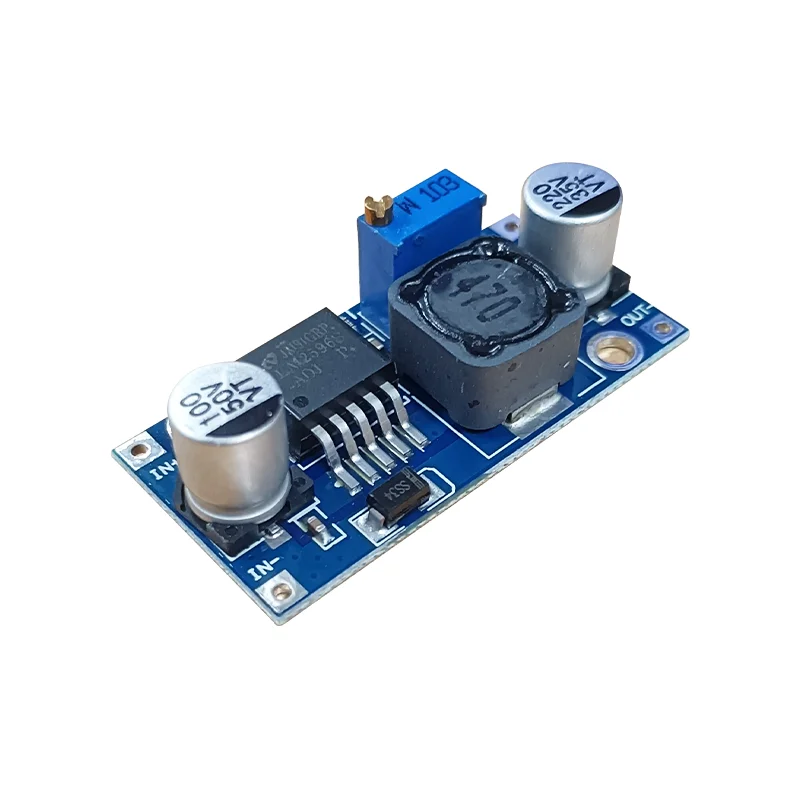

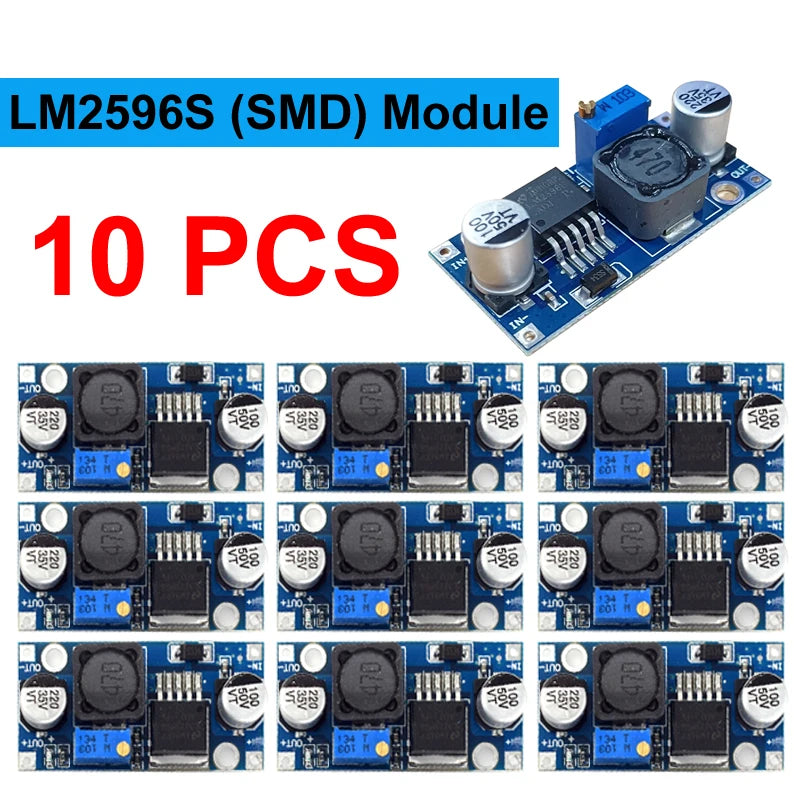

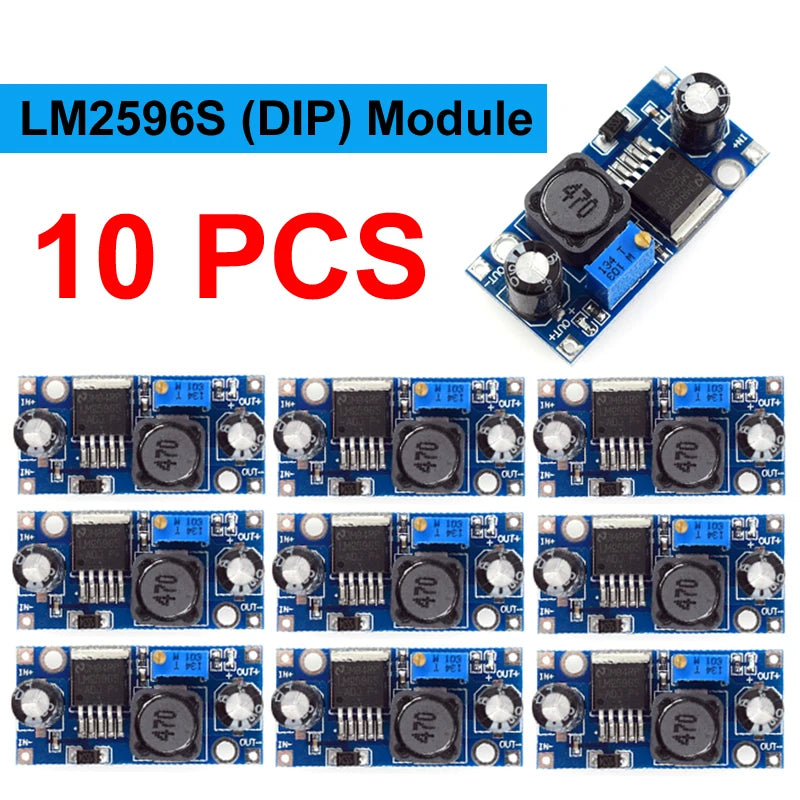

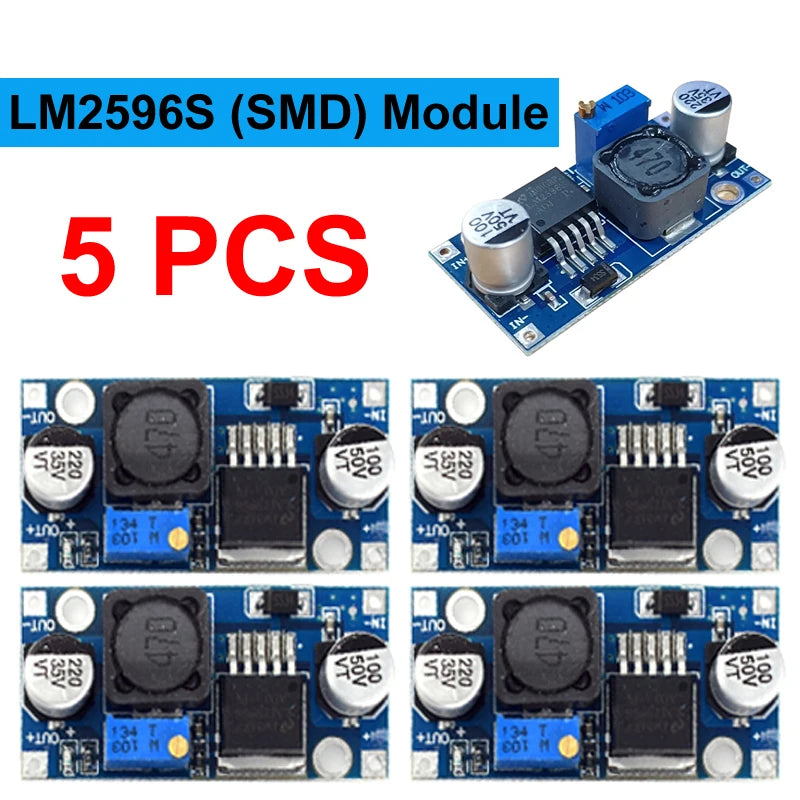

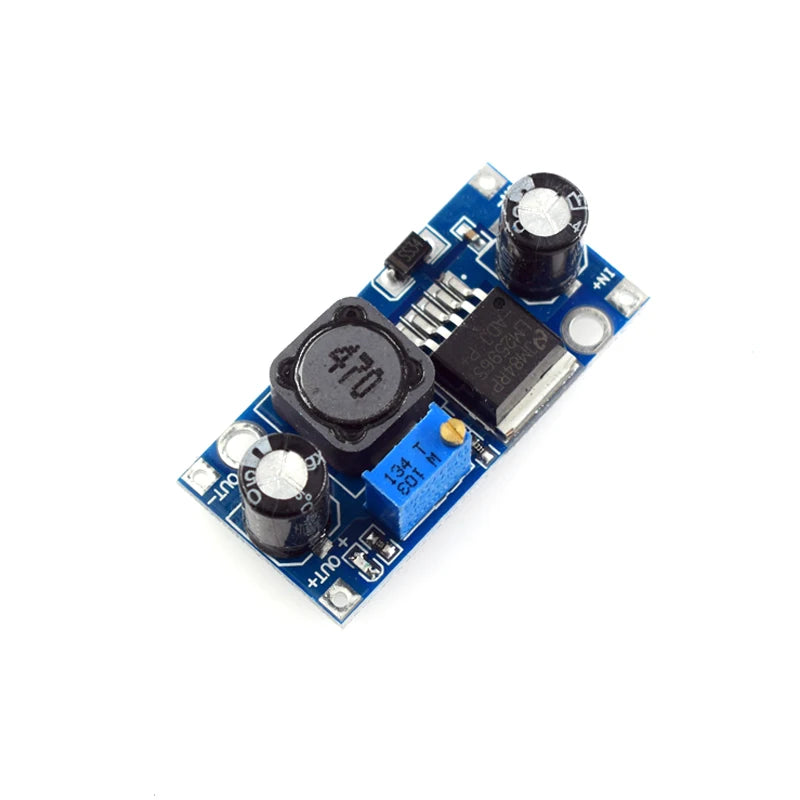

1-10PCS LM2596S DC-DC 3A 92% Step-down Power Supply Module Adjustable Step-down module 3.2V-35V To 1.25V-30V Voltage Regulator

Description

Input: DC 3.2V to 35V (input voltage must be 1.5 V higher than the output voltage, no boost)

Output: DC 1.25V to 30V voltage is continuously adjustable, maximum output current is 3 A

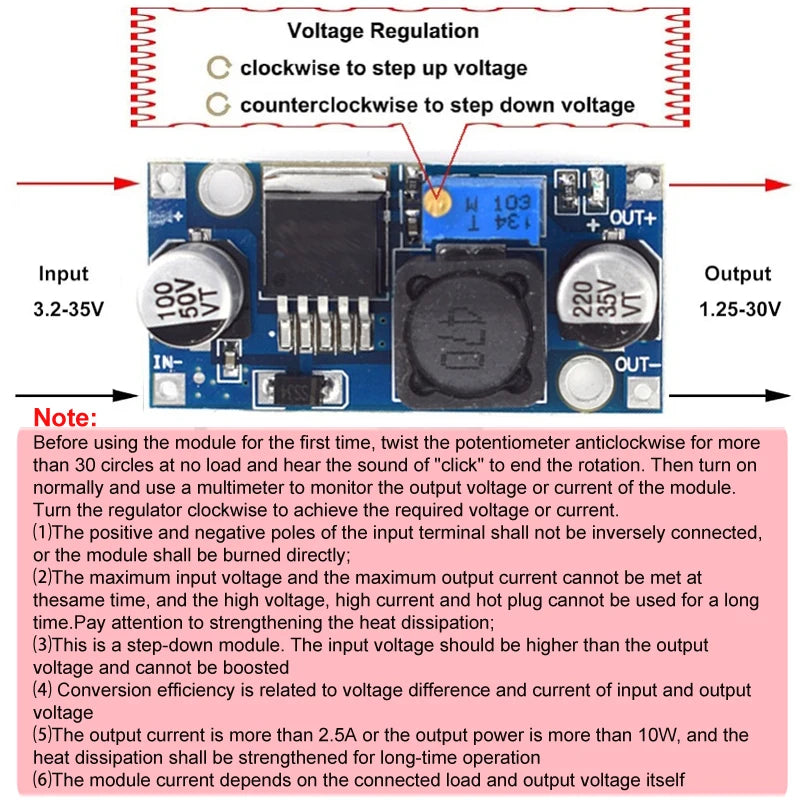

Steps: connect to power source, adjust the swirl button on the blue potentiometer and monitor voltage with multimeter to get the needed voltage (The factory have tested these at max voltage so they are very high by default, takes about 20-30 turns CCW before the voltage starts ramping down)

Features: all use SANYO solid-state capacitors, 36 u thickening circuit boards, high-Q inductance with LED indicator output

Features:

- DC to DC step down module

- Thickened circuit boards

- Advanced solid-state capacitor

- Short circuit and over-temperature protection

- 100% tested, sealed in anti-static packaging

Kindly Note:

1. Input voltage must be 1.5 V higher than the output voltage, no boost

2. Do not reverse the input and output interface

3. Keep output under 2.5A and use a heat sink when for a long time working

Specifications:

- Input voltage: DC 3.2V-35V；(input voltage must be 1.5 V higher than the output voltage, no boost)

- Output voltage: DC 1.25V-30V；( convenient to accurately adjust the output voltage with a mini screwdriver)

- Output current: max 3A;

- Conversion efficiency: max 92%;

- Equipped with a red power indicator light;

- Output power: 90.85% at 12V; 84.25% at 5V

Features: Thickened circuit boards,Short circuit and over-temperature protection.

Application: widely used for DIY mobile power, monitor power supply, power buggies,communications equipment supply,etc.

- Operating Temperature: -45℃ to +85℃

- Load Regulation: ±0.5%

- Voltage Regulation: ±2.5%
