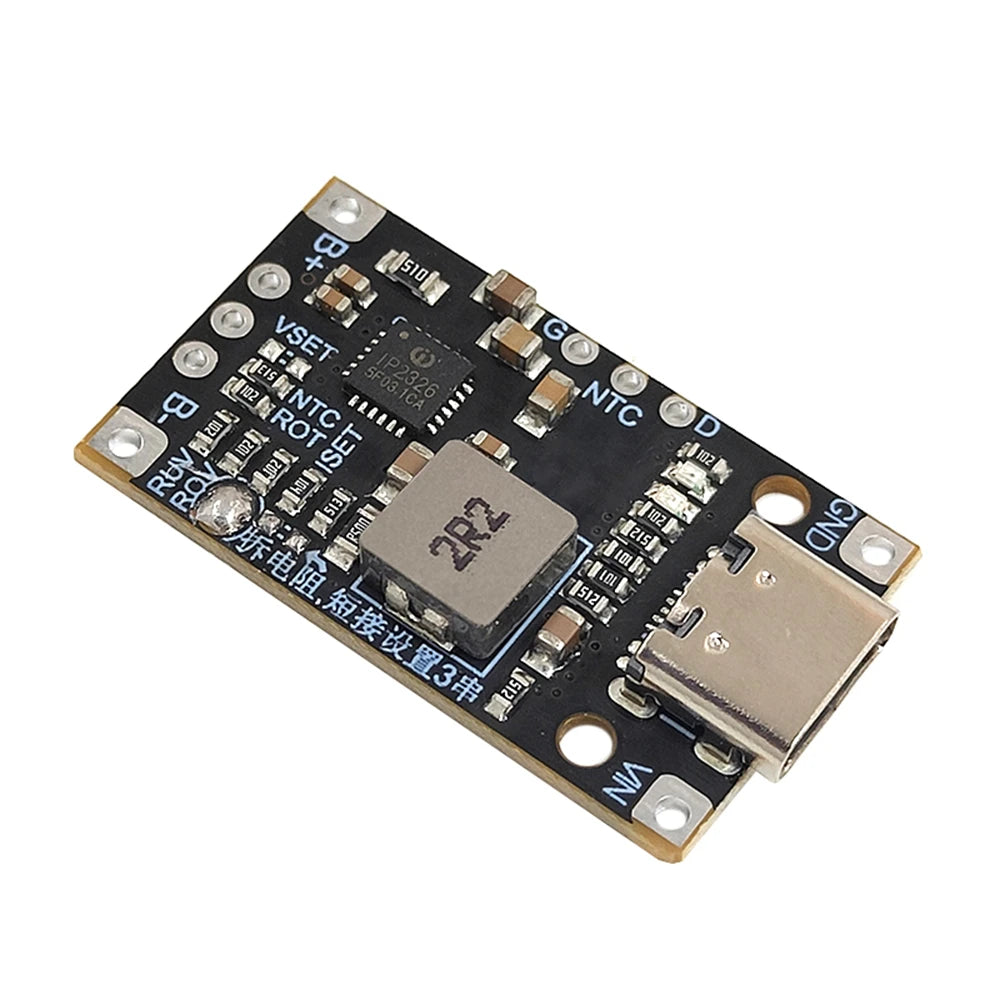

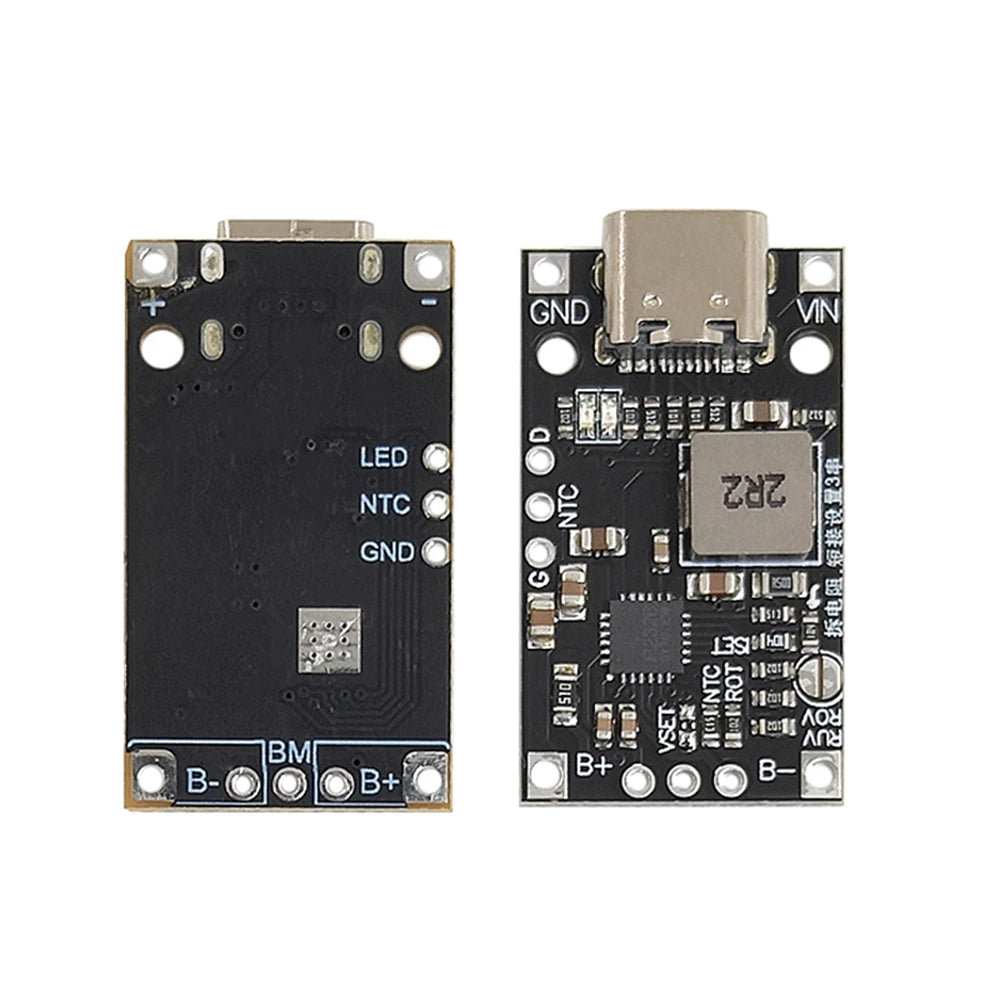

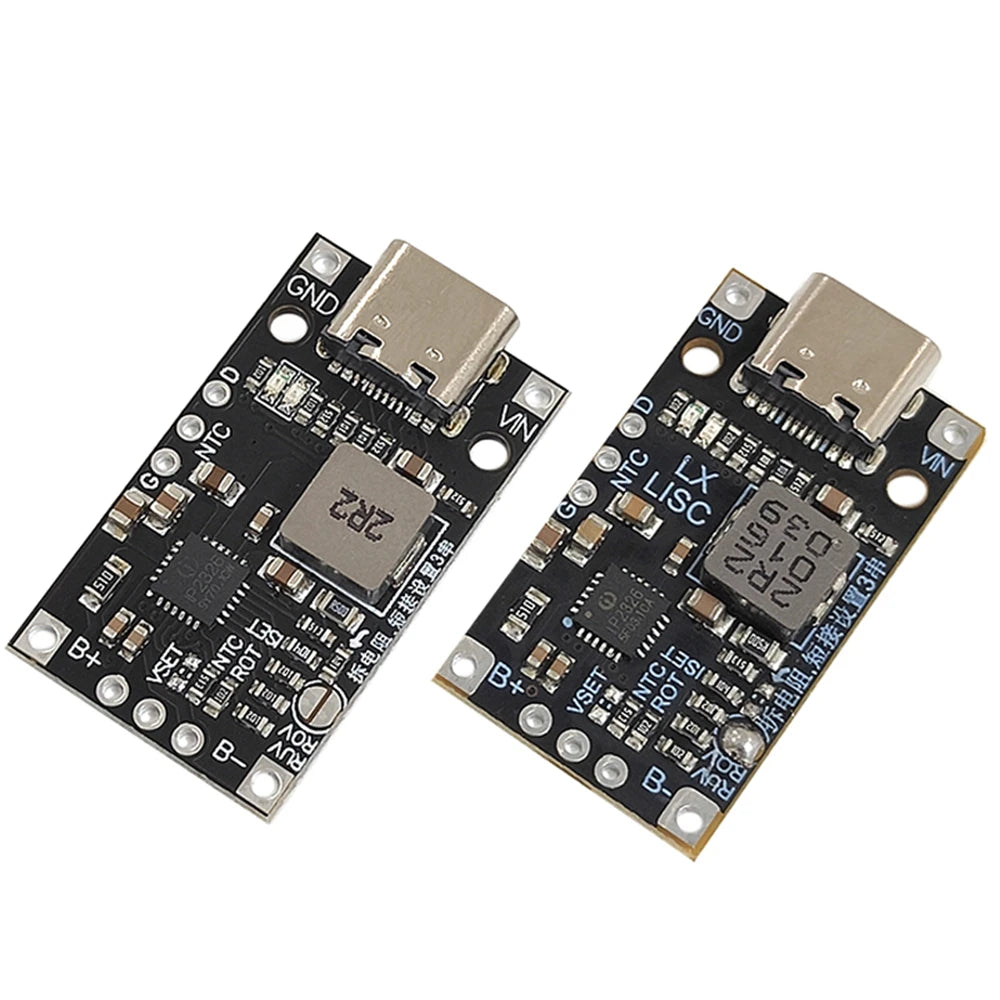

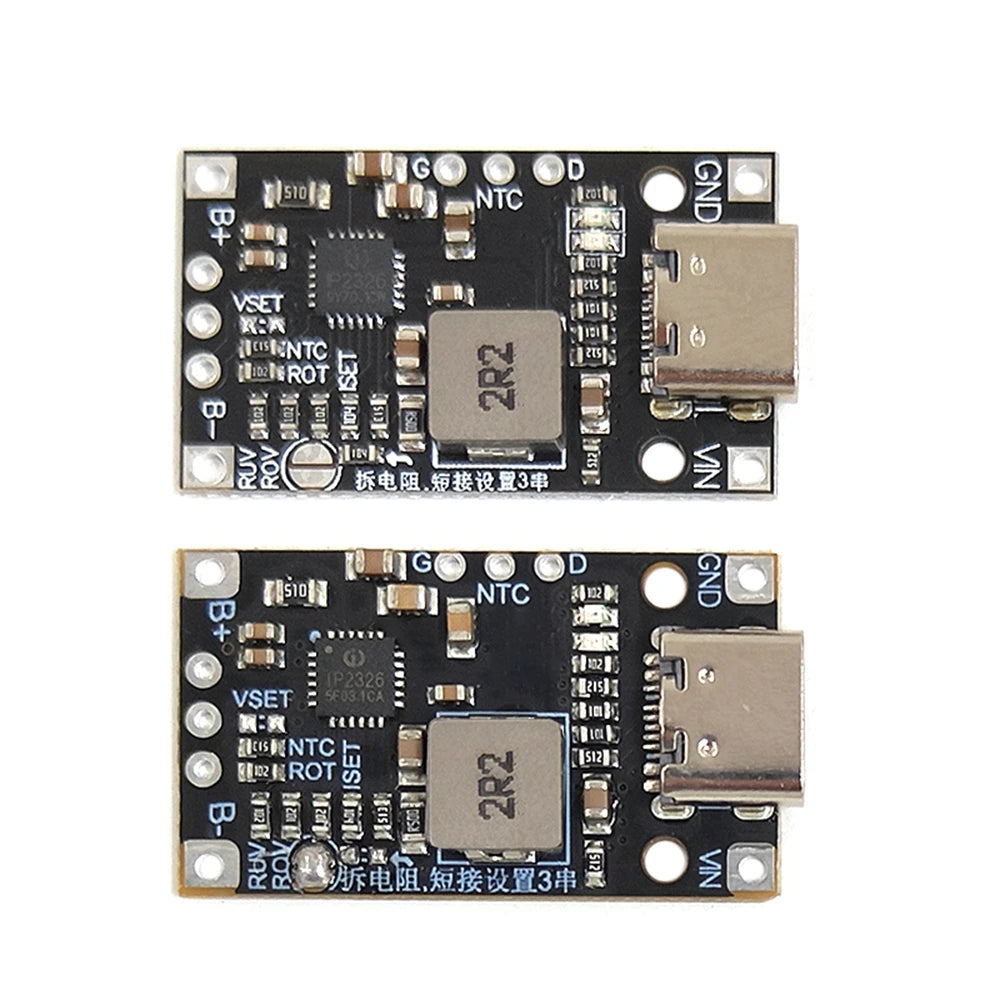

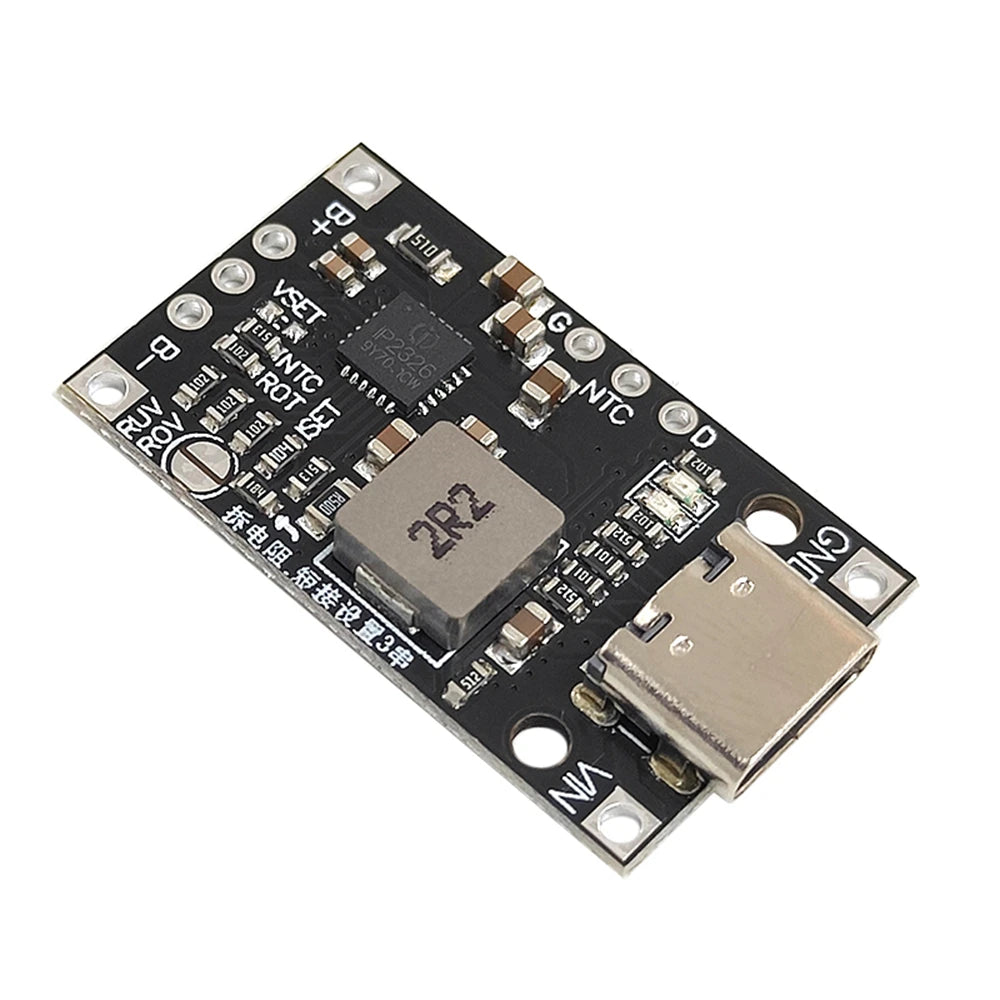

2S 3S Type-C USB BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator
2S 3S Type-C USB BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator
Couldn't load pickup availability
SPECIFICATIONS
Application: Electric Toy
Brand Name: GXTH
Choice: yes
Condition: New
Dissipation Power: 15W
High-concerned chemical: none
Origin: Mainland China
Package: SMD
Supply Voltage: 8.4V 12.6V
Type: Voltage Regulator
is_customized: Yes

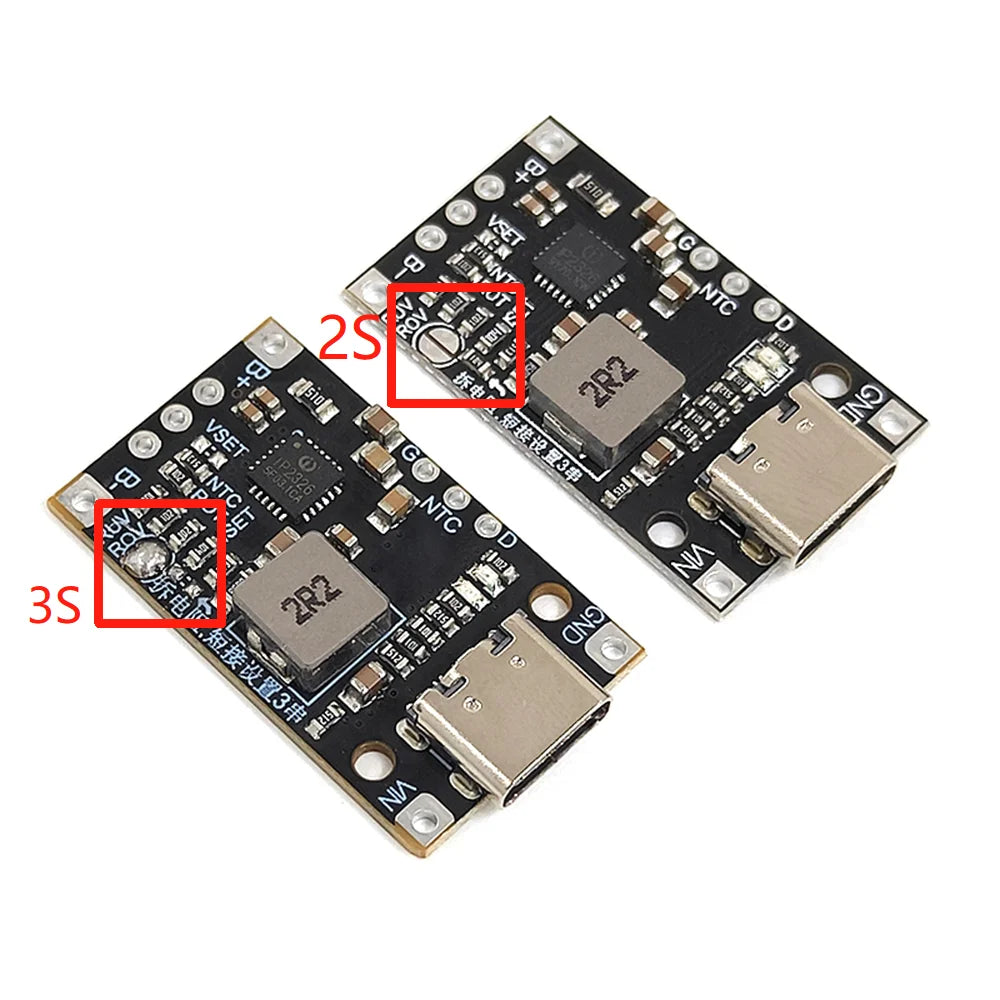

The module is suitable for two or three strings of 3.7V lithium batteries. By shorting the setting, the default is 2 strings. When two strings are used, the battery balance function that comes with the module can be used. This is very practical. The input can be type-c port and soldering When the type-c port is connected to the fast charging source, the charging voltage is automatically adjusted to improve efficiency. If the input voltage is lower than the battery voltage when the welding wire is input, the module can only work in the boost state
