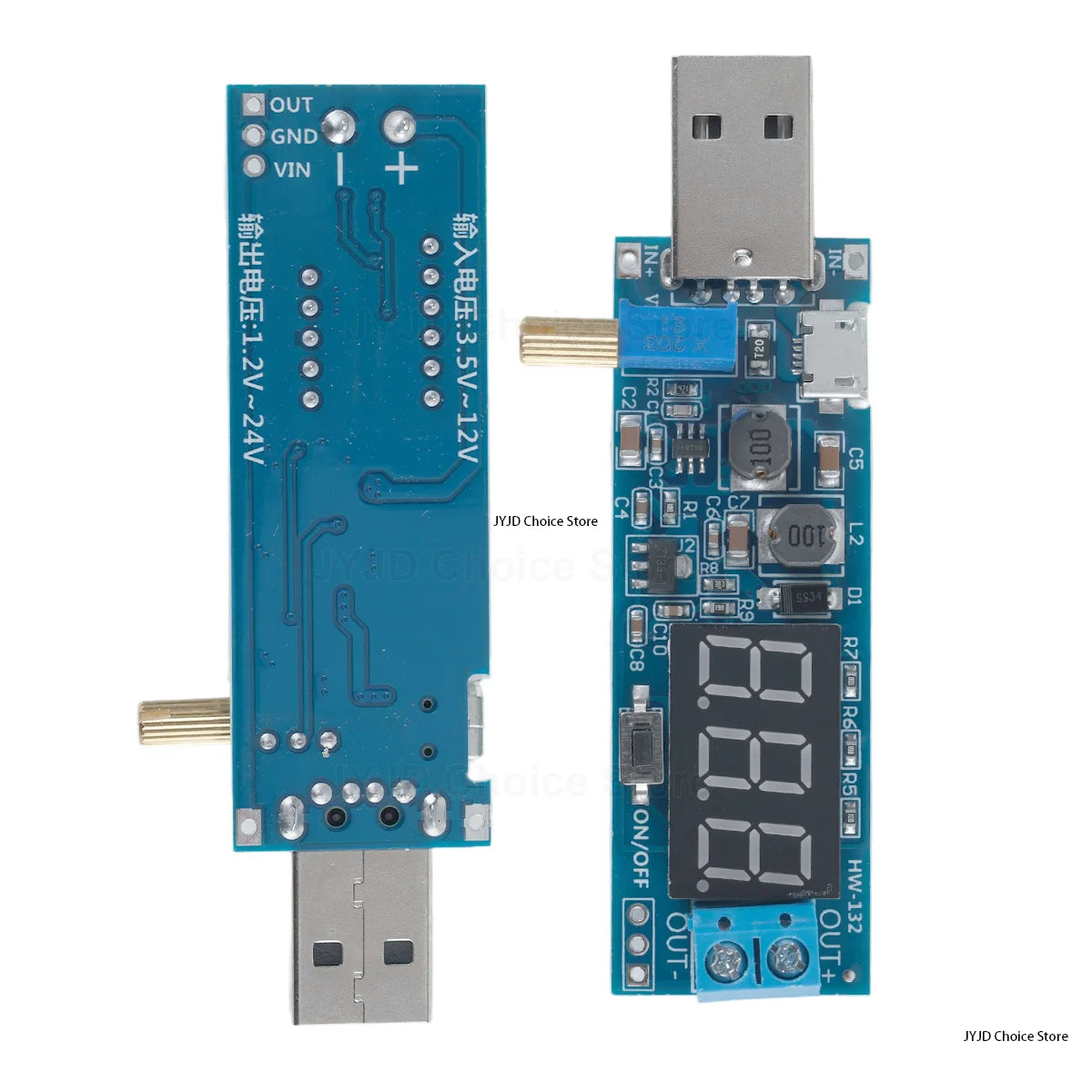

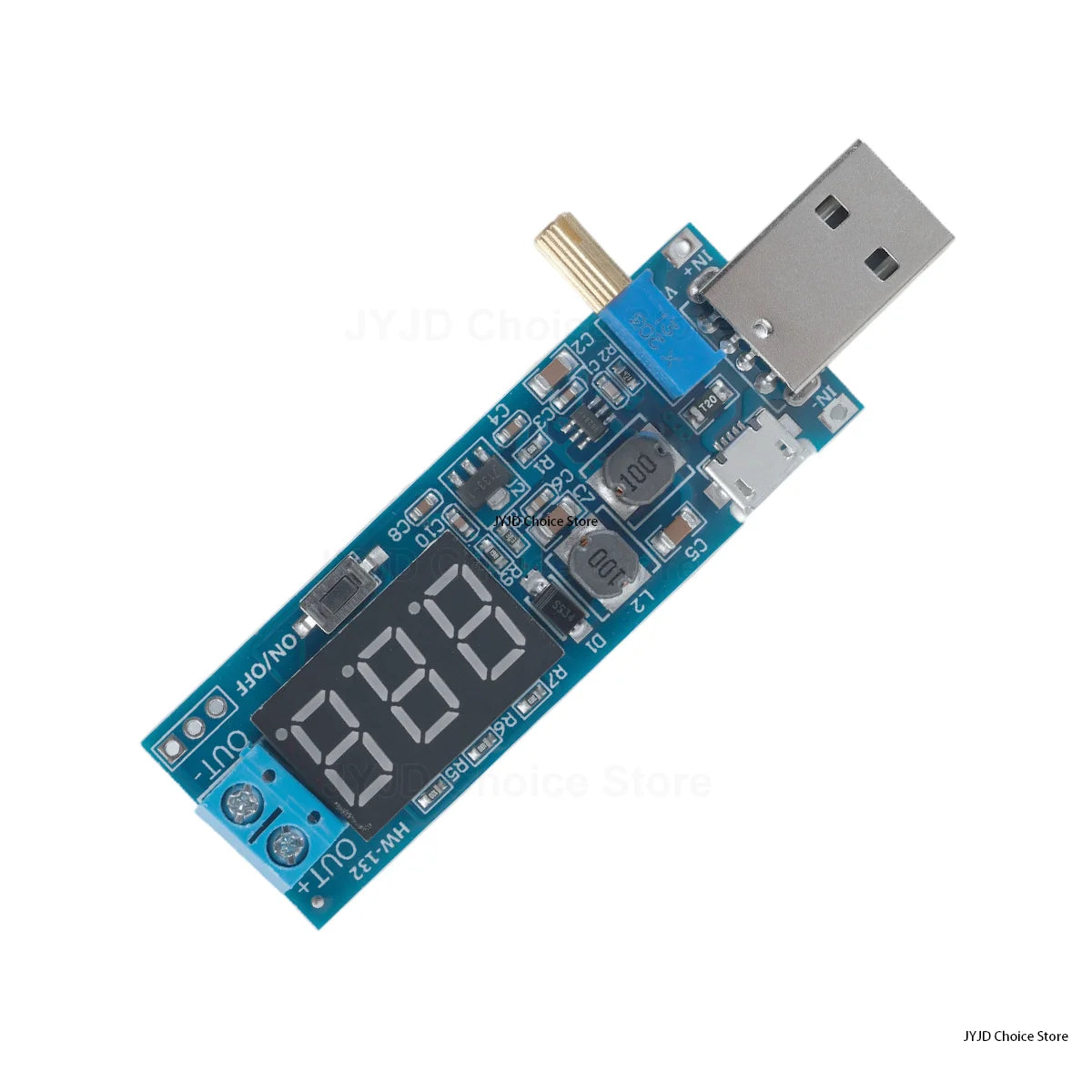

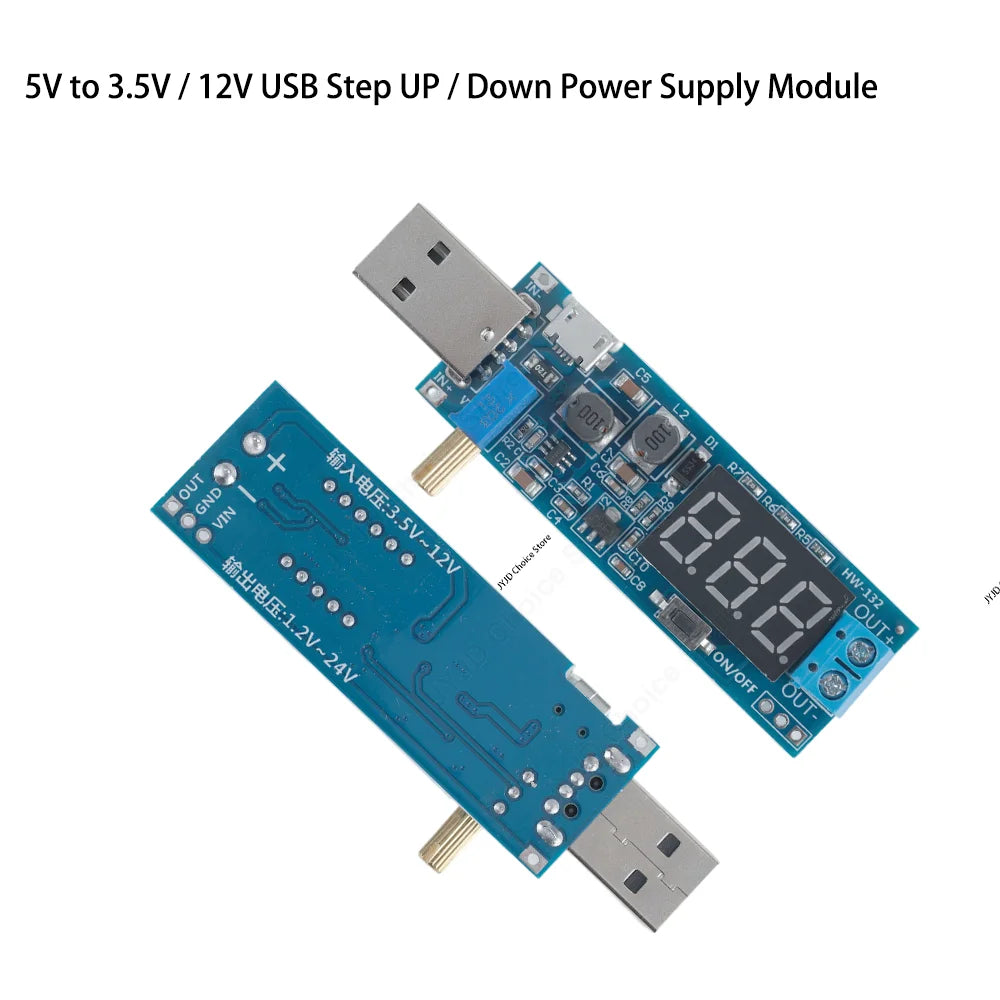

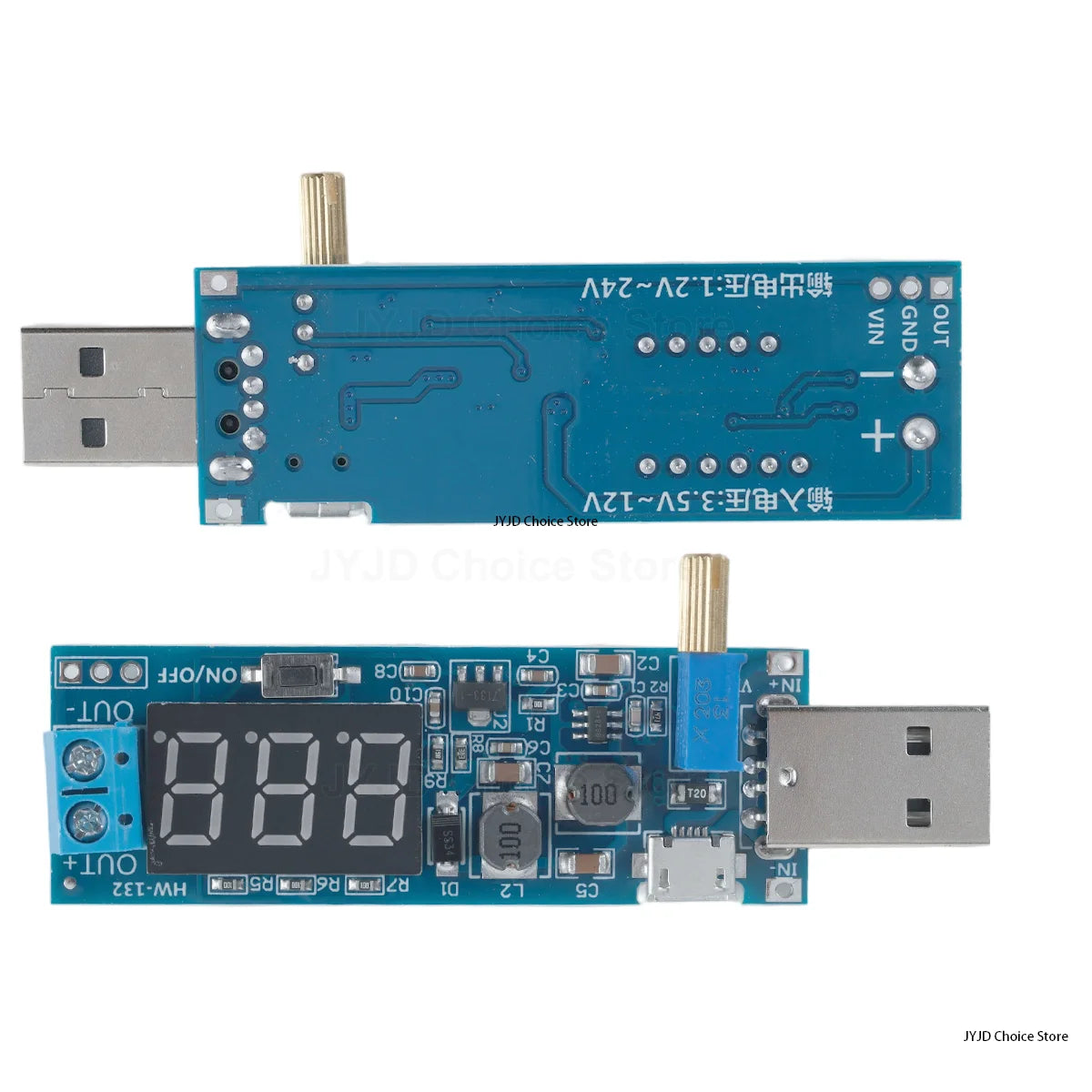

Adjustable DC-DC Boost Buck Converter Module, USB Input Step Up Step Down Power Supply Module Output 1.2V-24V

Rs. 127.85 INR

~~Rs. 127.85 INR~~ Rs. 127.85 INR

Sale Sold out

Taxes included. Shipping calculated at checkout.

Default Title Default Title

SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

USB boost/buck power supply module, powered by USB, adjust potentiometer to get the required voltage.

1.Features:

1>.One button to turn off the output;

2>.Supply ON/OFF display screen;

3>.Support low power mode;

4>.Support sleep mode;

5>.Support both standard USB and Micro USB and pads input voltage;

6>.Potentiometer with rotating handle.

2.Parameters:

1>.Input voltage: DC 3.5-12V;

2>.Output voltage:DC 1.2-24V;

3>.Output power:

Input 1.2-2V,output power within 2W;

Input 2V-20V,output power within 3W;

Input 20V-24V,output power with in 2.5W;

4>.Display:3Bit digital tube display;

5>.Size:80*20*14mm.

3.Use steps:

1>.Input voltage from Standard USB or Micro USB or 'VIN+' and 'VIN-';

2>.Turn ON display screen;

3>.Adjust potentiometer to get the required voltage;

4>.Connect load.

4.Application:

1>.Ordinary power supply;

2>.Battery charger;

3>.LED drive power;

4>.Instrument voltage display;

5>.Test meter;

6>.Circuit test;

7>.Power conversion.

5.Please Note:

1>.It is not a high power supply, please use it within the power range.
