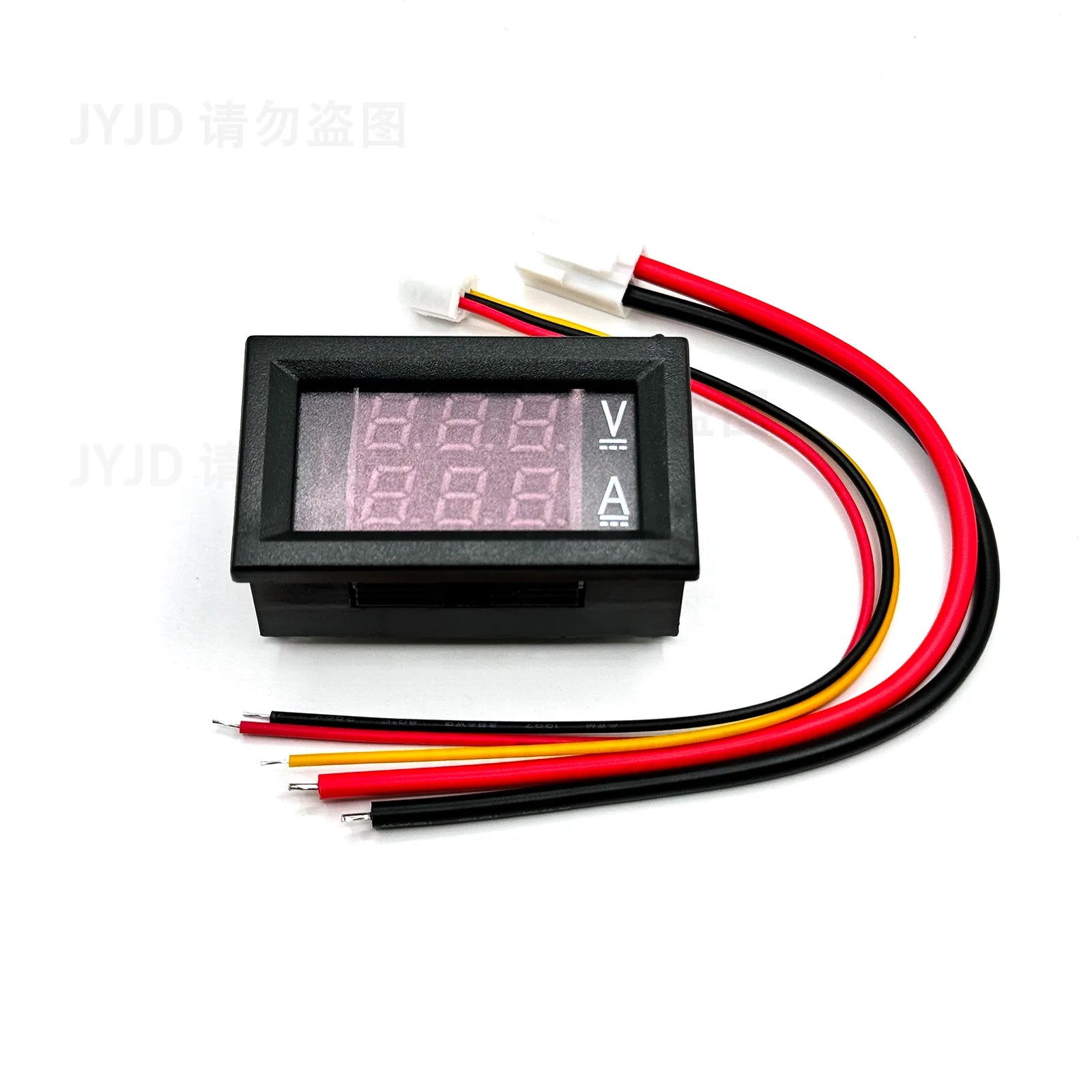

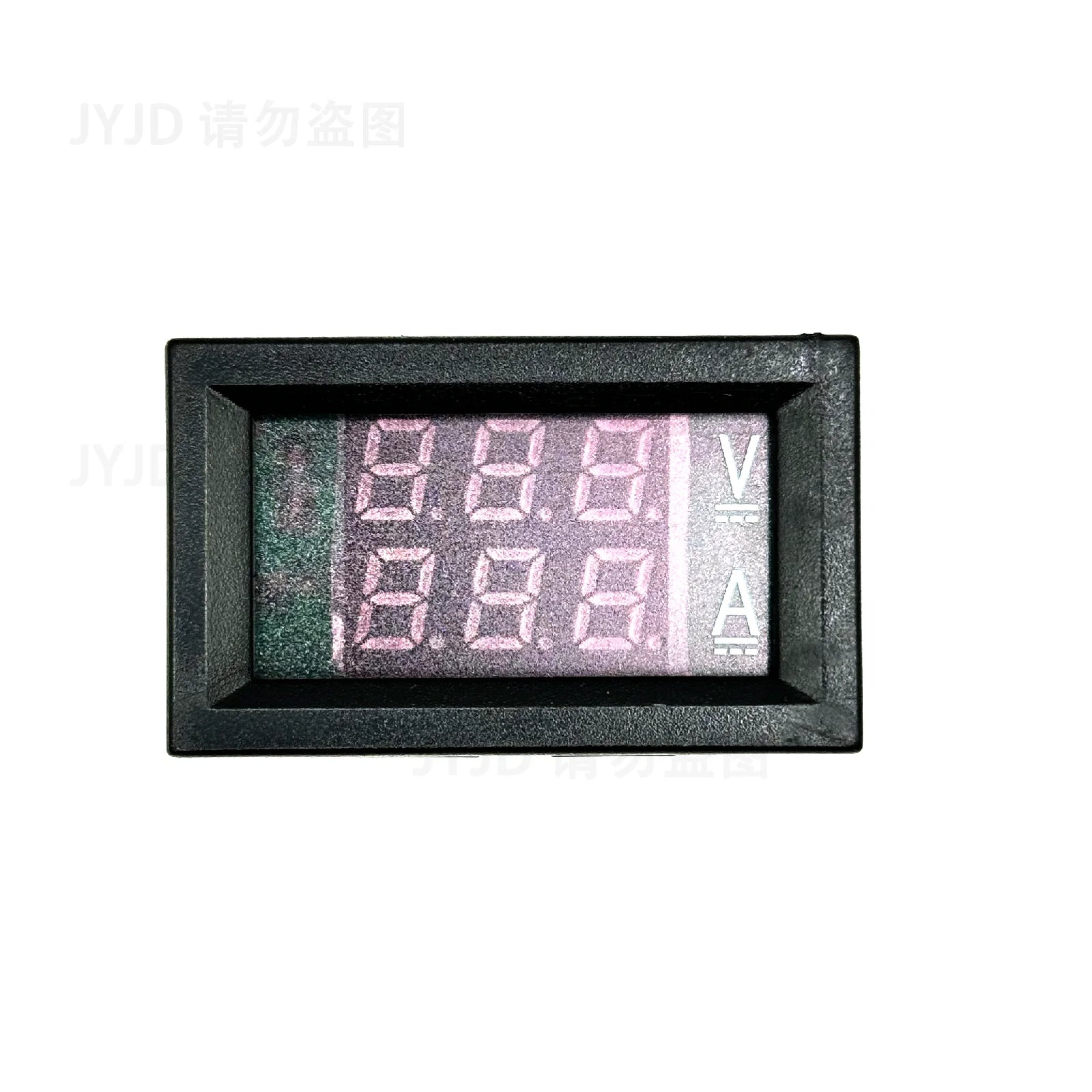

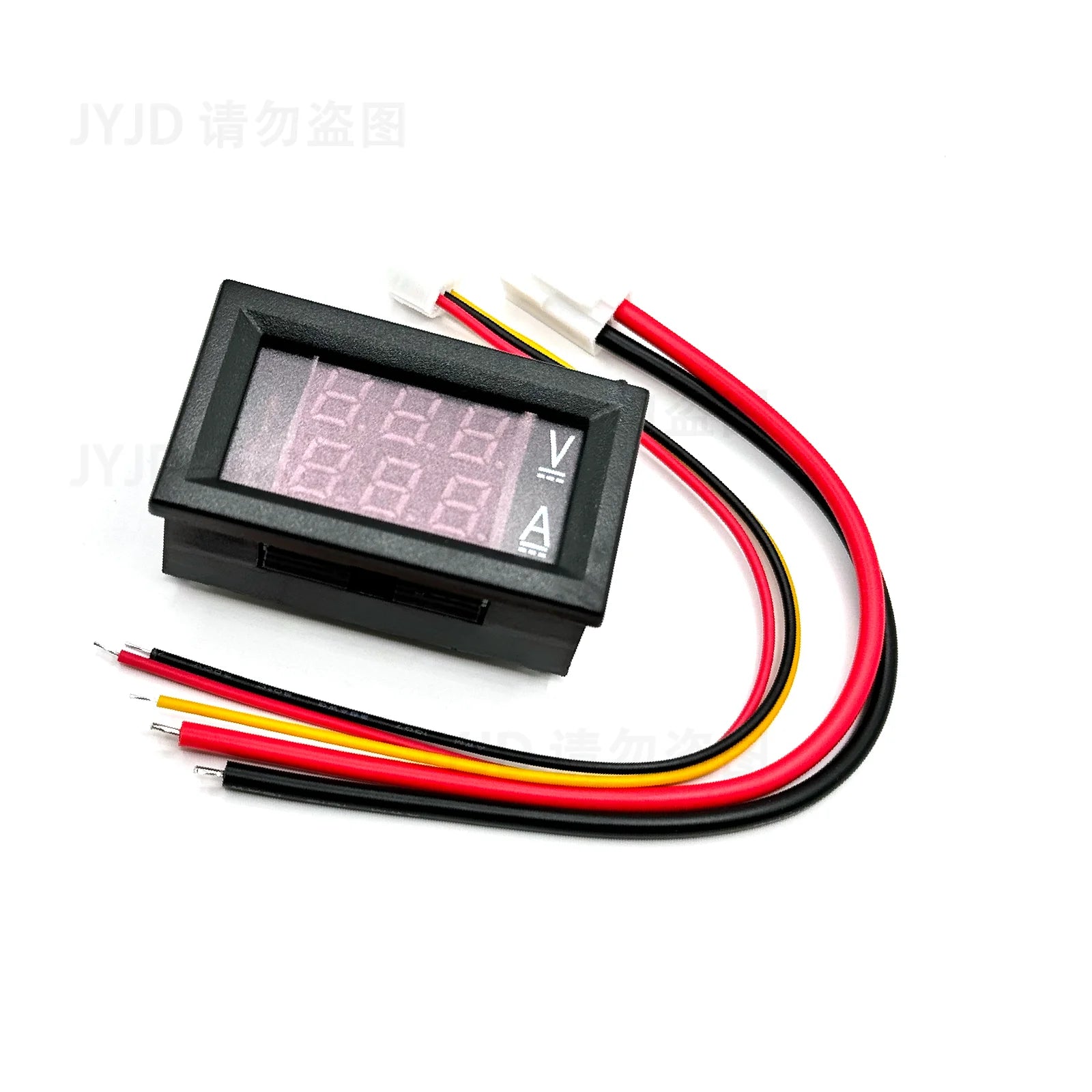

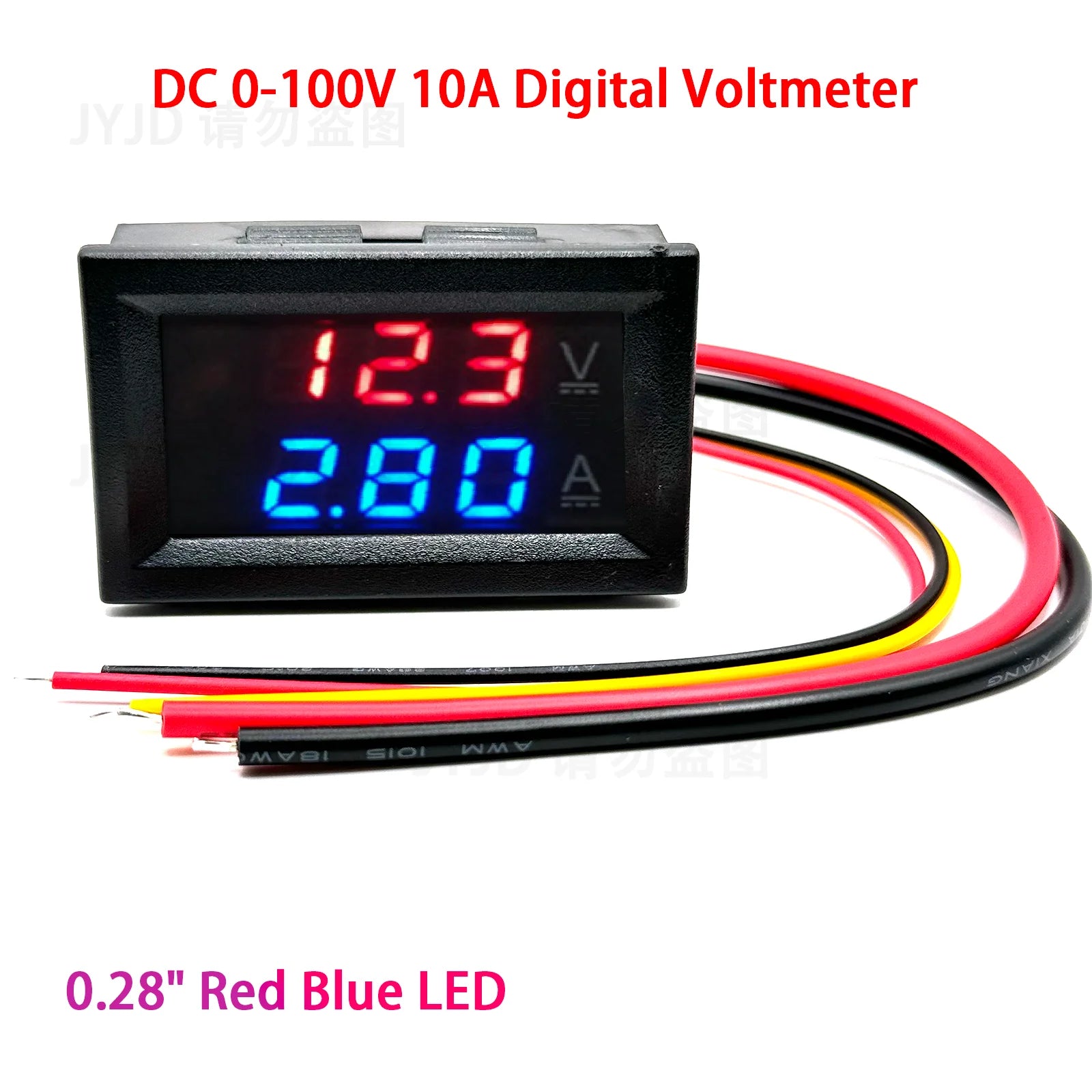

DC 0-100V 10A Digital Voltmeter Ammeter Dual Display Voltage Detector Current Meter Panel Amp Volt Gauge 0.28" Red Blue LED
DC 0-100V 10A Digital Voltmeter Ammeter Dual Display Voltage Detector Current Meter Panel Amp Volt Gauge 0.28" Red Blue LED
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Module
Specifications:
Working voltage of Meter itself:DC 4 - 30V(The maximum input voltage can not exceed 30V. Otherwise the meter will be burned)
Working current of Meter itself:≤20mA
Voltage Measuring range: DC 0 - 100V
Current Measuring range: DC 0 - 10A
Voltage resolution (V): 0.1V
Current resolution (A): 0.01A
Measure accuracy: 1% (± 1 digit)
Display: 0.28" digital tube, Two color blue and red
Refresh rate: about 300mS / times
Dimensions:48mm*29mm*26mm
Operation Temp: -10°-+65°
Wiring:
Package Include:
1x DC 100V 10A Voltmeter & Ammeter
