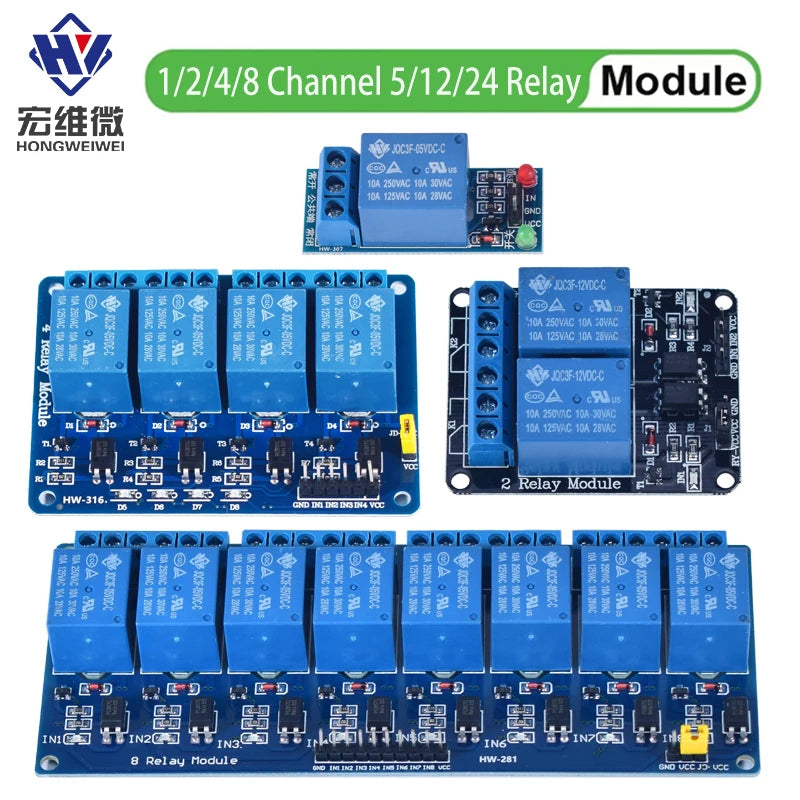

DC 5V 12V 24V 1 2 4 6 8 Channel Relay Module Board Shield with Optocoupler / High and Low Level Trigger for Arduino Raspberry

DC 5V 12V 24V 1 2 4 6 8 Channel Relay Module Board Shield with Optocoupler / High and Low Level Trigger for Arduino Raspberry

Rs. 432.24 INR
Rs. 432.24 INR Rs. 432.24 INR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color

SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Logic ICs

is_customized: Yes

DC 5V 12V 24V 1 2 4 6 8 Channel Relay Module Board Shield with Optocoupler / High and Low Level Trigger for Arduino Raspberry

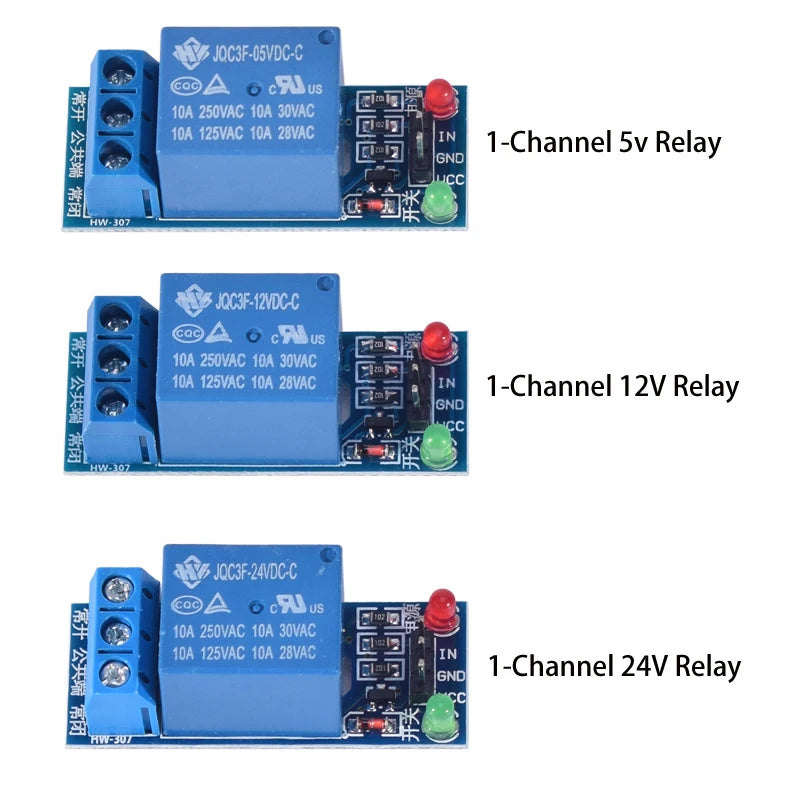

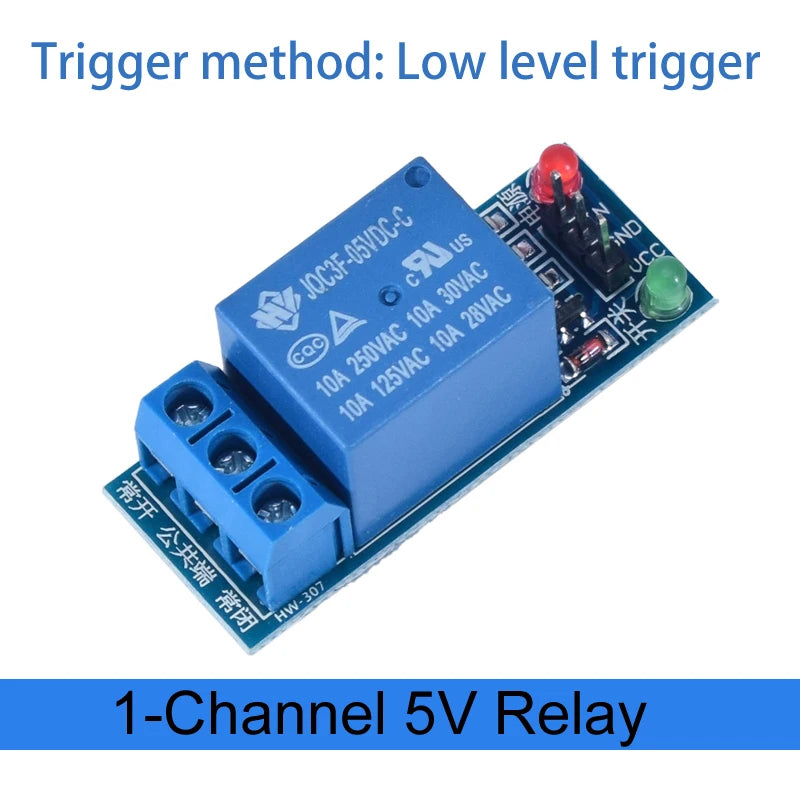

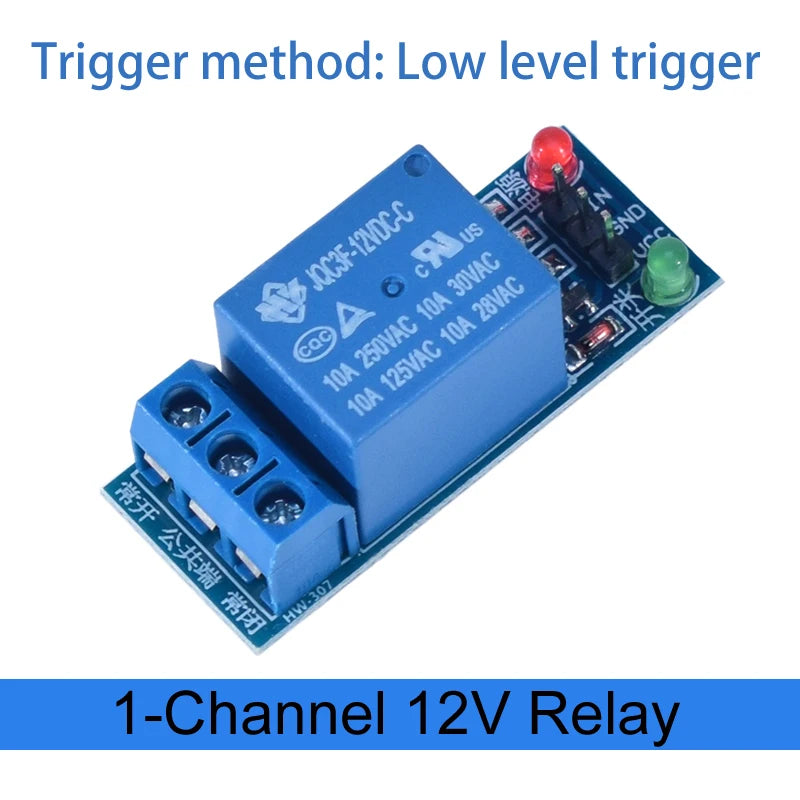

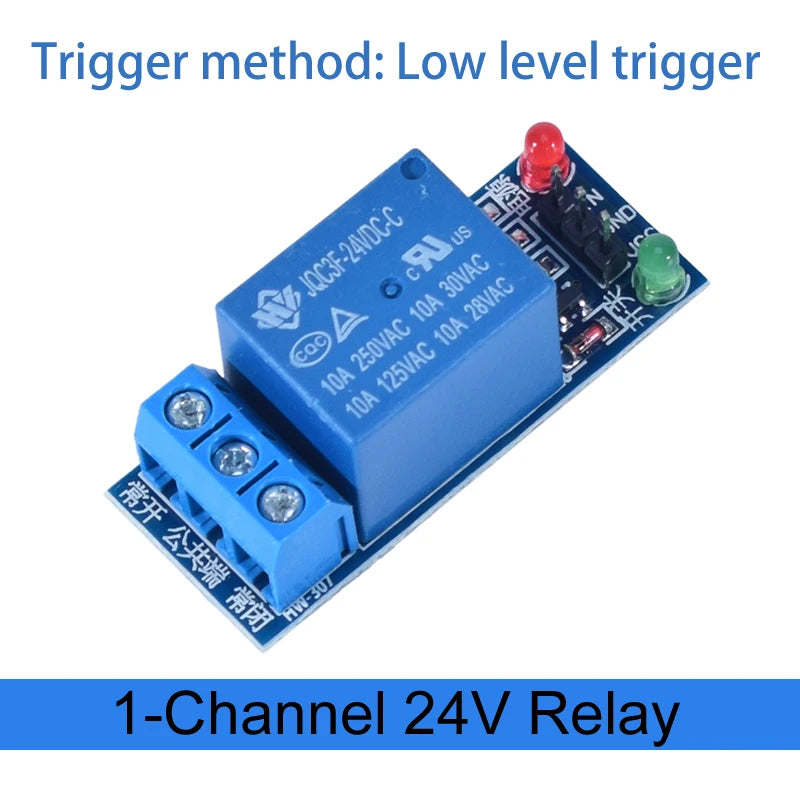

1-channel 5V/12V/24V relay module

VCC: Connect to the positive pole of the power supply, supply voltage:+5V/12V/24V DC

GND: Connect to the negative pole of the power supply.

IN: Trigger signal input terminal, low level (0V) effective, controls relay to pull in.

Size:17.3mm*43.2mm

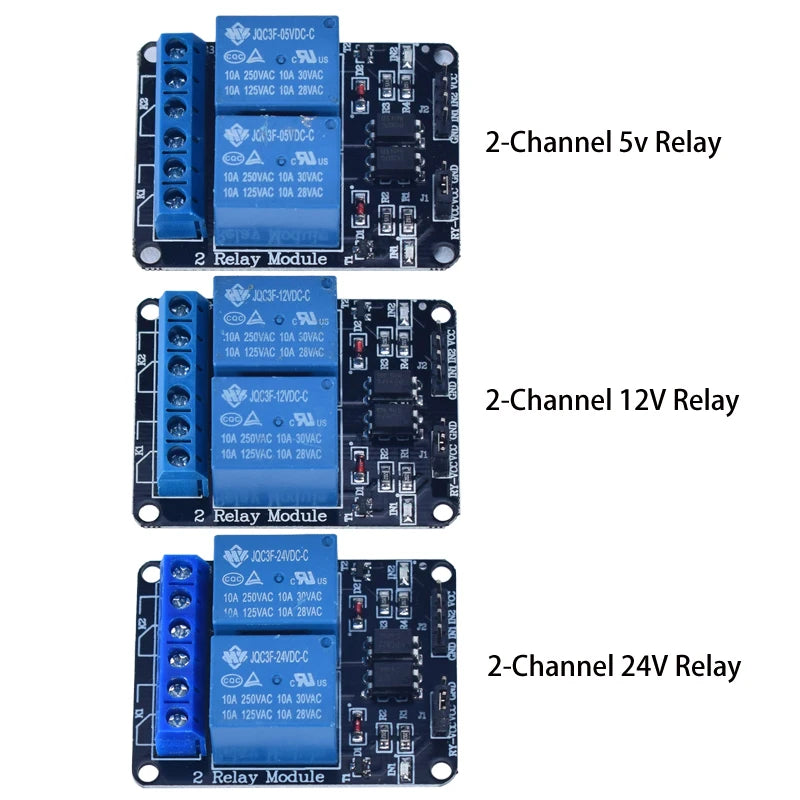

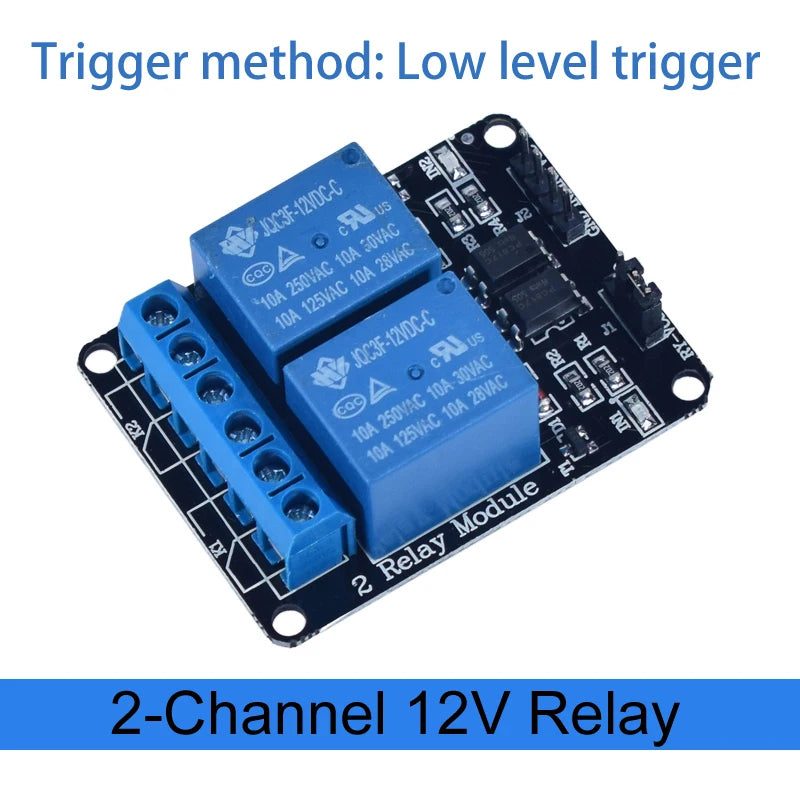

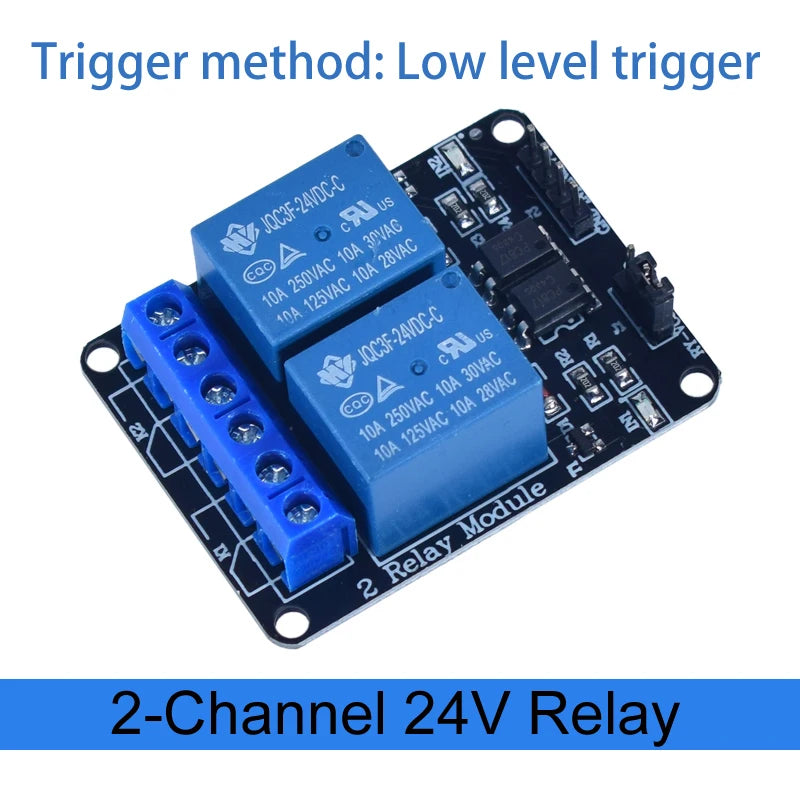

2-channel 5V/12V/24V relay module

VCC: Connect to the positive pole of the power supply, supply voltage:+5V/12V/24V DC

GND: Connect to the negative pole of the power supply.

IN1: Trigger signal input terminal, low level (0V) effective, controls K1 relay to pull in.

IN2: Trigger signal input terminal, low level (0V) effective, controls K2 relay to pull in.

Size:50.4mm*38.7mm

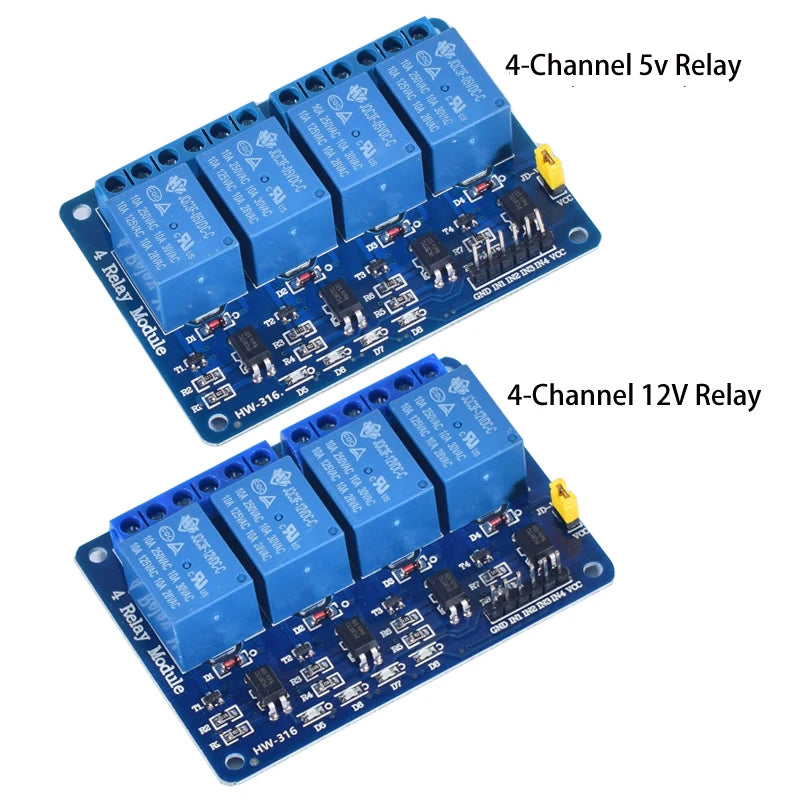

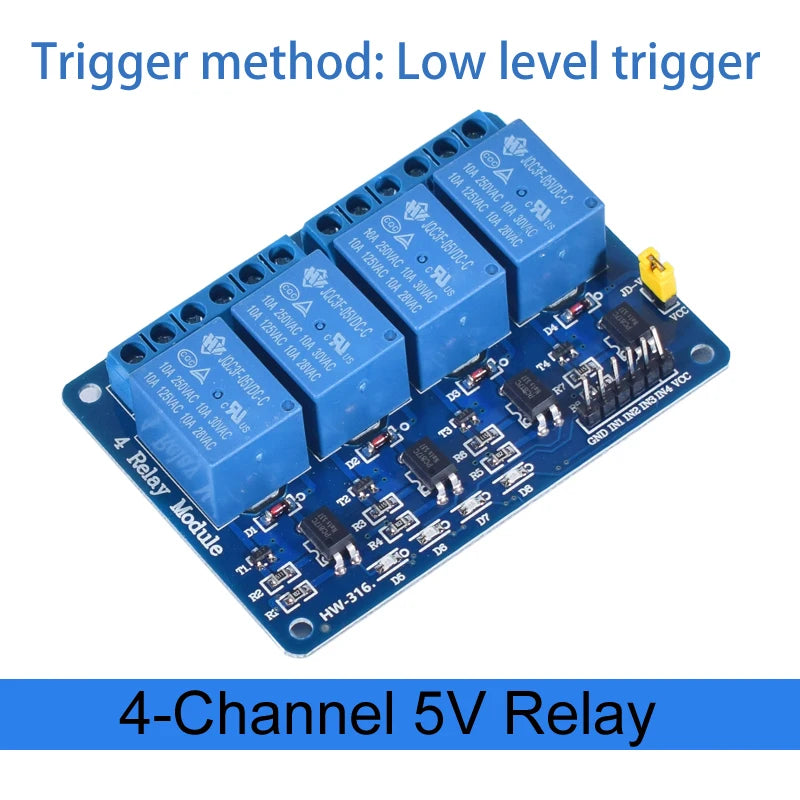

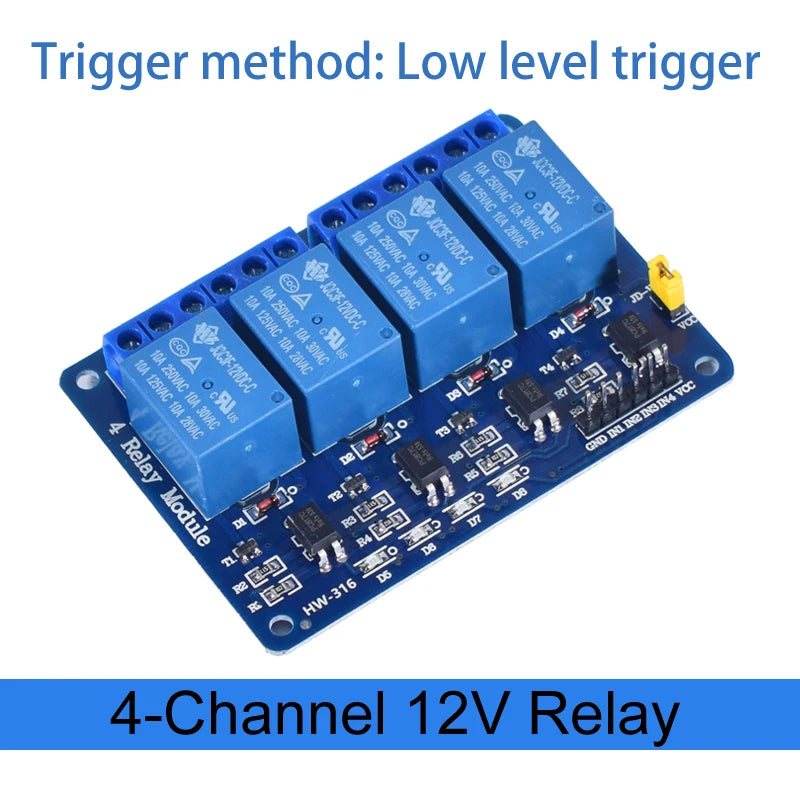

4-channel 5V/12V relay module

VCC: Connect to the positive pole of the power supply, supply voltage:+5V/12V DC

GND: Connect to the negative pole of the power supply.

IN1: Trigger signal input terminal, low level (0V) effective, controls K1 relay to pull in.

IN2: Trigger signal input terminal, low level (0V) effective, controls K2 relay to pull in.

IN3: Trigger signal input terminal, low level (0V) effective, controls K3 relay to pull in.

IN4: Trigger signal input terminal, low level (0V) effective, controls K4 relay to pull in.

Size:55.5mm*75.5mm

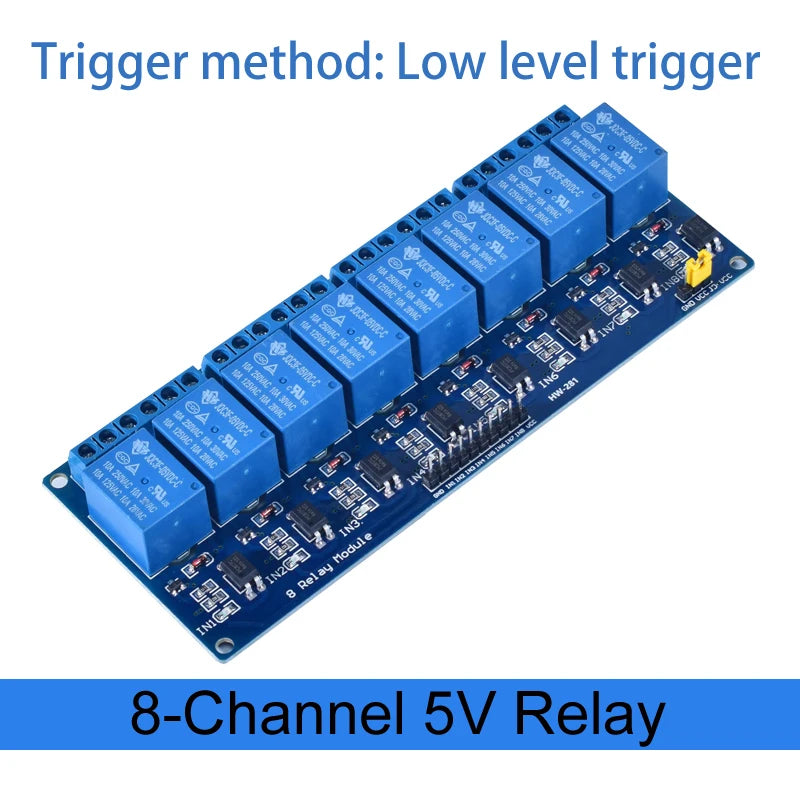

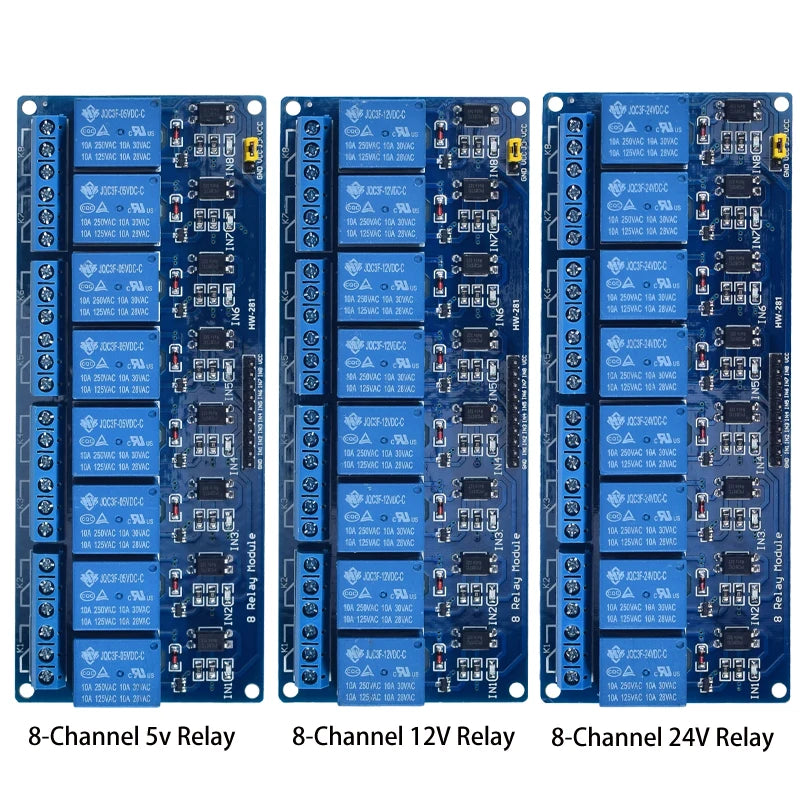

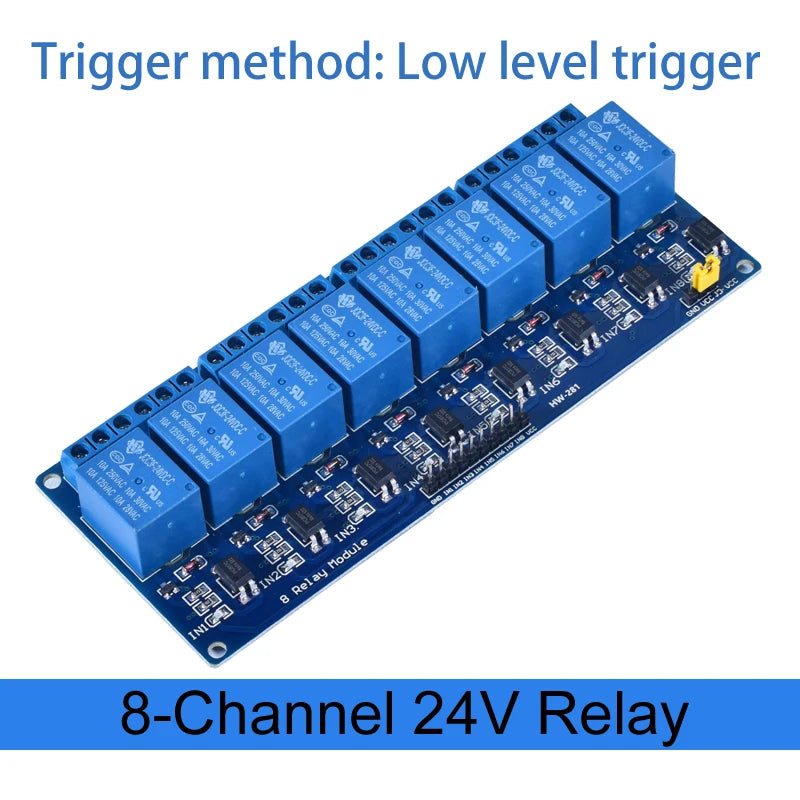

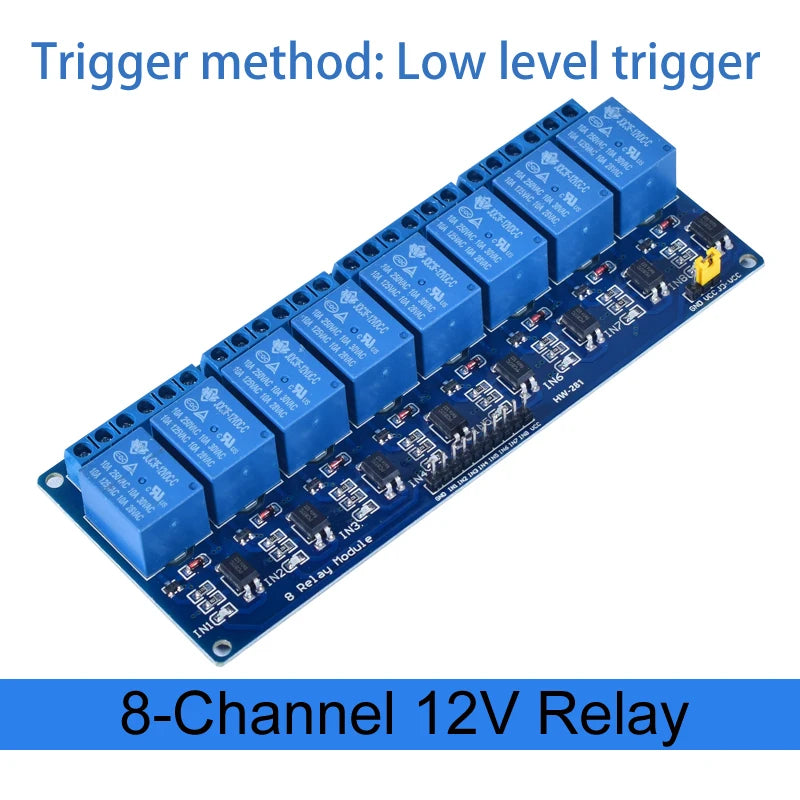

8-channel 5V/12V/24V relay module

VCC: Connect to the positive pole of the power supply, supply voltage:+5V/12V DC

GND: Connect to the negative pole of the power supply.

IN1: Trigger signal input terminal, low level (0V) effective, controls K1 relay to pull in.

IN2: Trigger signal input terminal, low level (0V) effective, controls K2 relay to pull in.

IN3: Trigger signal input terminal, low level (0V) effective, controls K3 relay to pull in.

IN4: Trigger signal input terminal, low level (0V) effective, controls K4 relay to pull in.

IN5: Trigger signal input terminal, low level (0V) effective, controls K5 relay to pull in.

IN6: Trigger signal input terminal, low level (0V) effective, controls K6 relay to pull in.

IN7: Trigger signal input terminal, low level (0V) effective, controls K7 relay to pull in.

IN8: Trigger signal input terminal, low level (0V) effective, controls K8 relay to pull in.

Size:56.5mm*138.4mm
