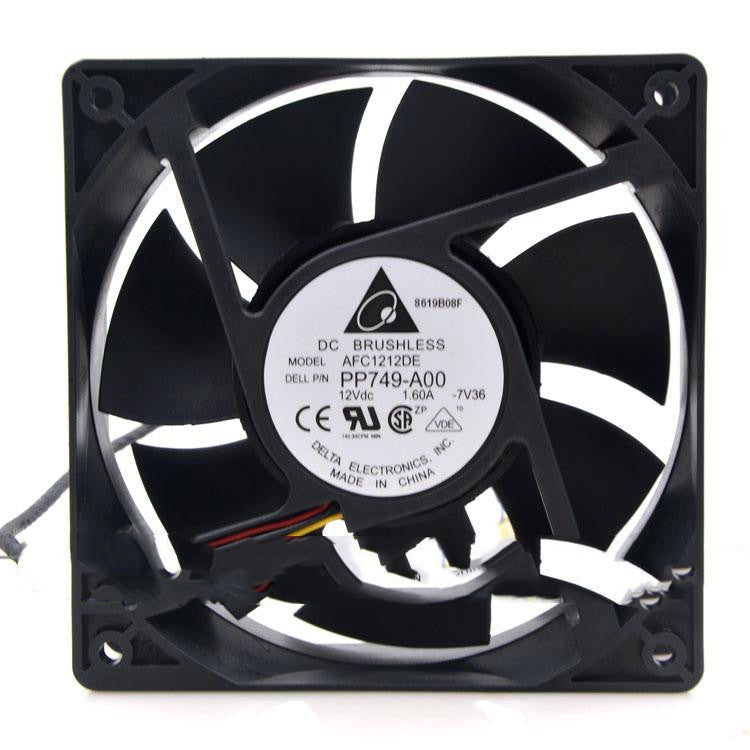

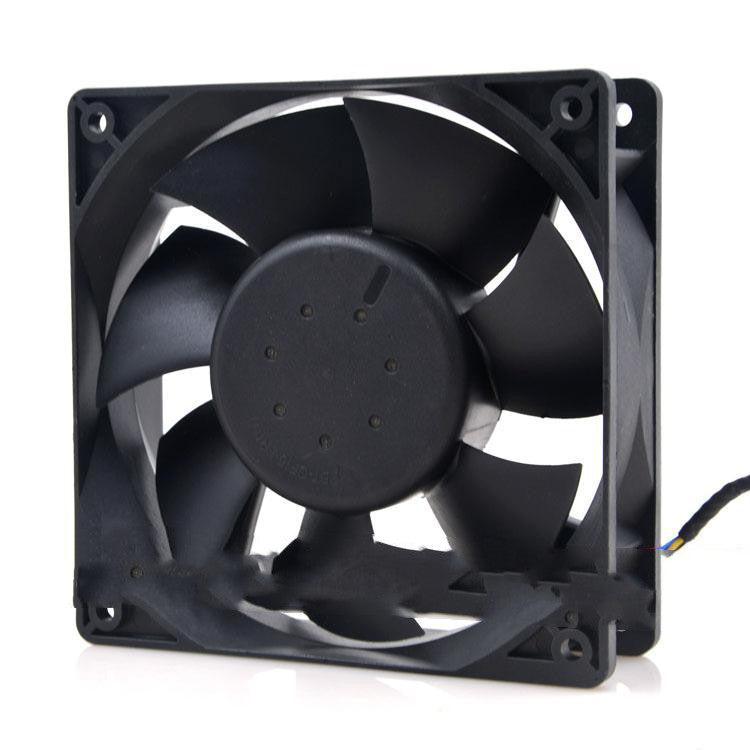

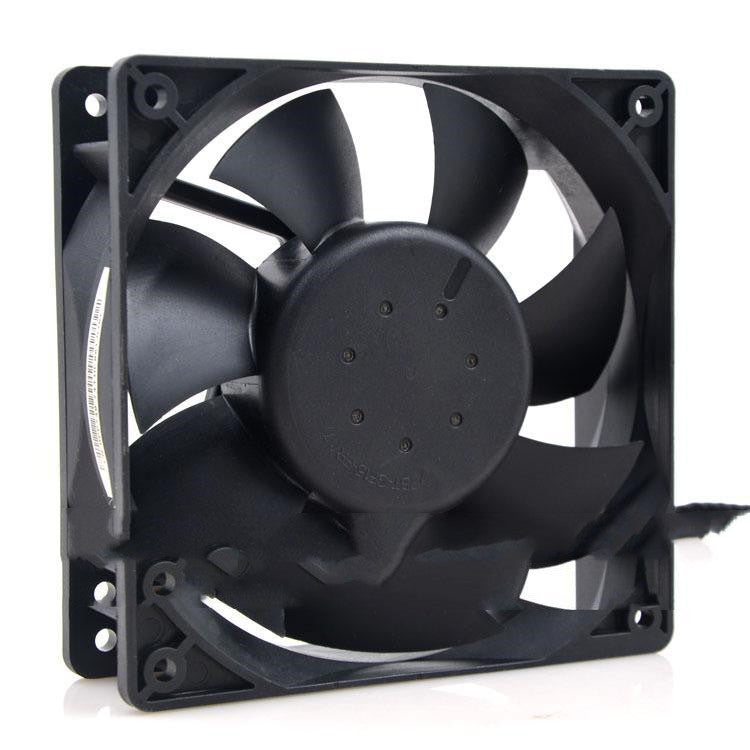

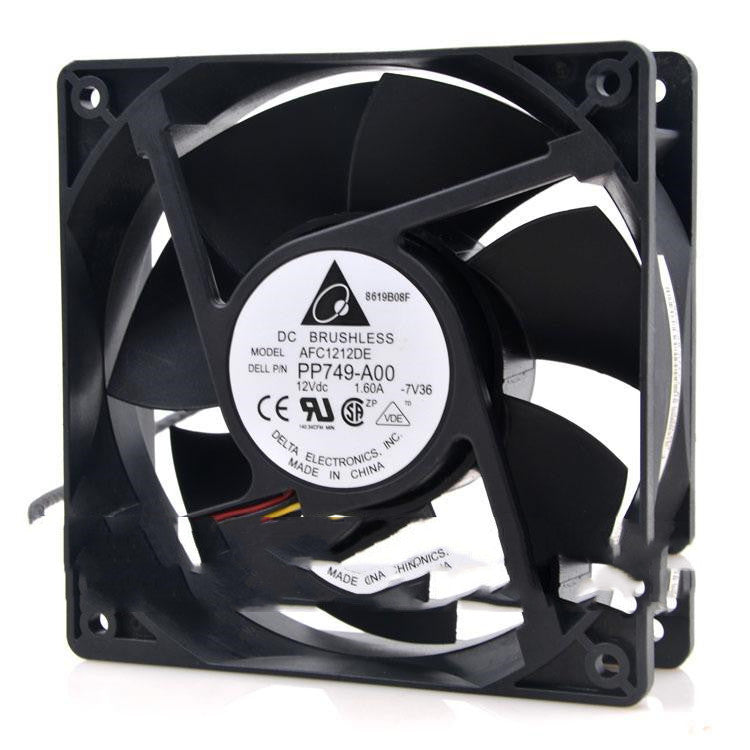

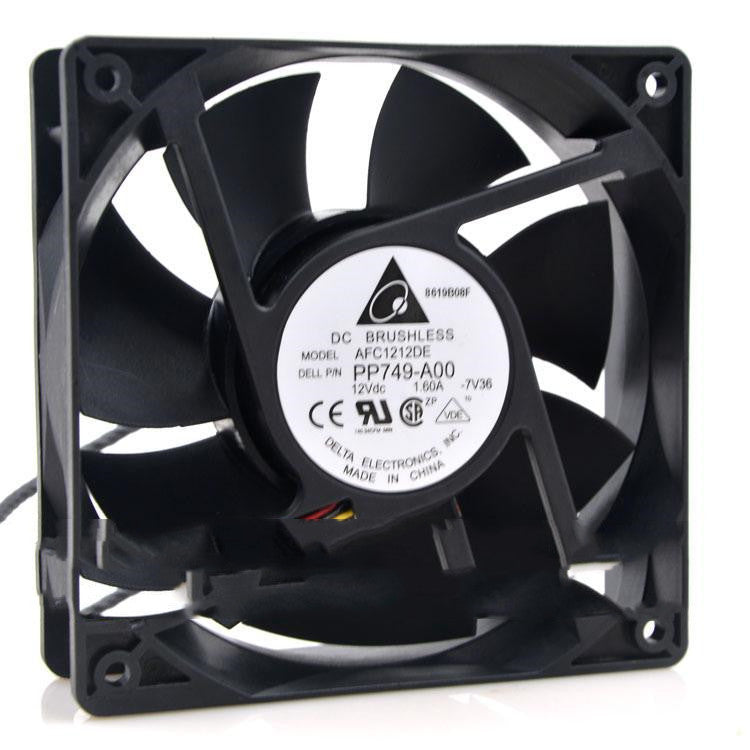

Delta AFC1212DE 12038 12V 1.6A 12CM Gale Volume Ant PWM Speed Control Cooling Fan
Delta AFC1212DE 12038 12V 1.6A 12CM Gale Volume Ant PWM Speed Control Cooling Fan
Couldn't load pickup availability
Product information
Lead: 4 wires (support pwm)
Voltage: DC 12V
Current: 1.60A
Speed: 4000RPM
Air volume: 154.5CFM
Noise: 45.4dB-A
Bearing: High-precision double ball bearing
Fan frame: one-time injection molding, PBT+30% glass fiber VO grade flame retardant
Fan blade: one-time injection molding, PBT + 30% glass fiber + VO grade flame retardant.
Fan rotation direction: from the direction of the fan blades, it is counterclockwise
Operating temperature: -10 degrees Celsius to +70 degrees Celsius
Storage temperature: -40 degrees Celsius to +70 degrees Celsius
Power range: plus or minus 15% of the rated power
Insulation resistance: greater than 500 megohms
Withstand voltage: sink leakage current 0.5mA 500V/1 minute
Working life: 80,000 hours at an ambient temperature of 25 degrees
Packing list
Radiator x1
