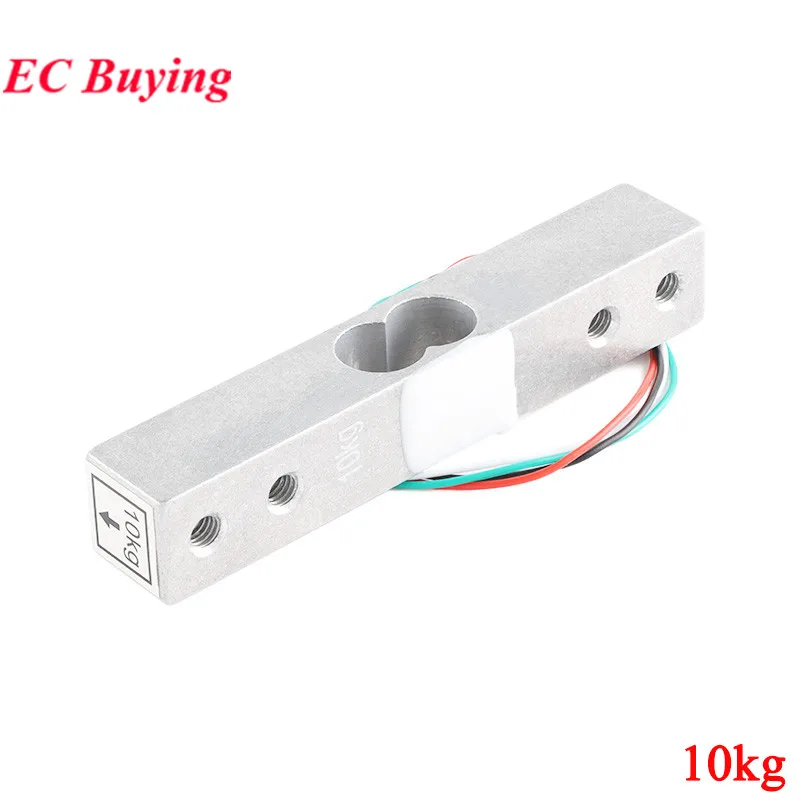

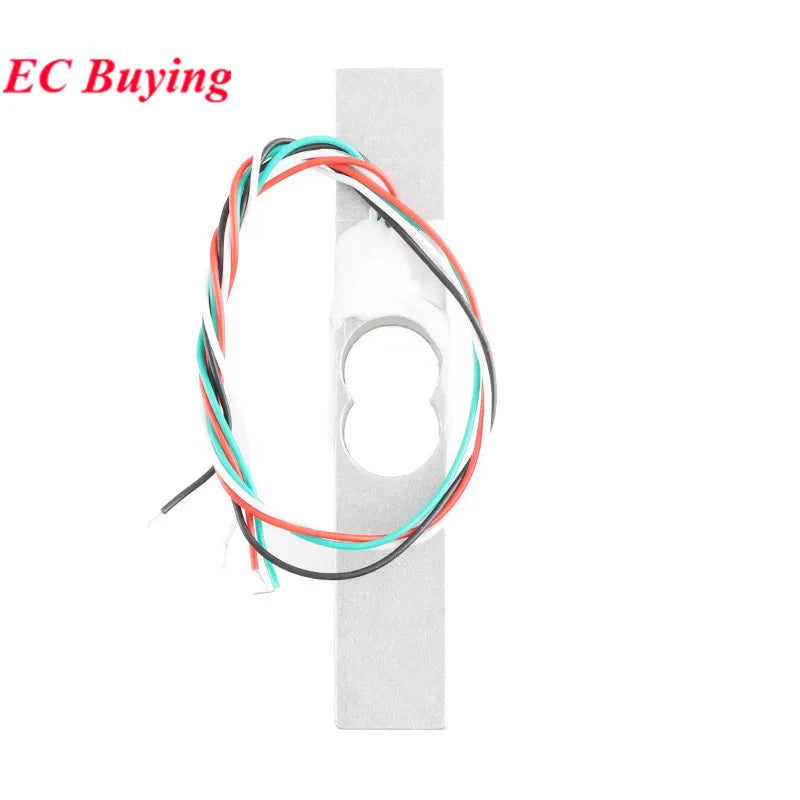

CZL-611RD Technical Parameters

1. Range: 10kg

7. Zero point output: -0.15 ± 0.05mVN

2. Output sensitivity: 1.0 ± 0.1mVN

8. Output impedance: 1000 ± 10 ohms

3. Nonlinear: 0.03% 6F S

9. Four corner error: 0.0596F S

4. Lag: 0.0396F S

10. Temperature sensitivity drift: 0.039% 6F S/10℃

5. Repeatability: 0.0396F S

11. Zero temperature drift: 0.39% 6F S/10℃

6. Creep: 0.0596F S/3min

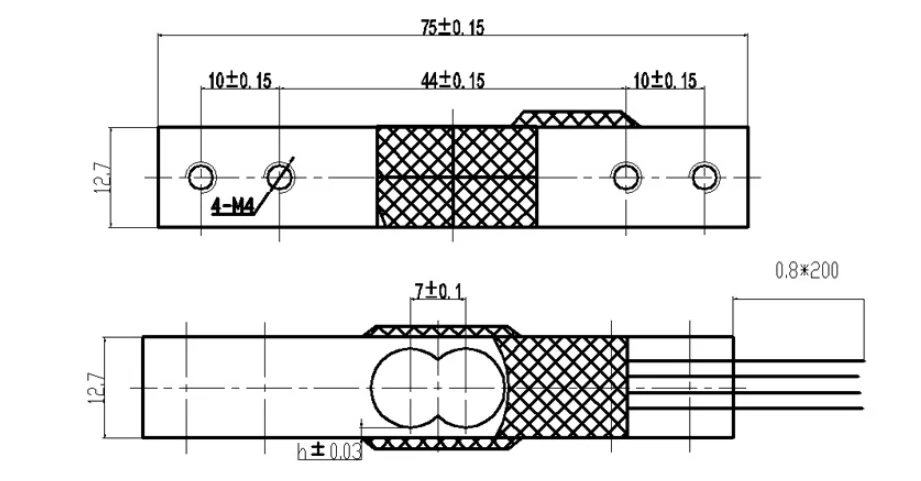

12. Product size: 75x12.7x12.7mm

CZL-611P

1. Range: 40KG

8. Output impedance: 1000 ± 5% ohms

2. Output sensitivity: 10 ± 0.1mVN

9. Zero temperature drift: 0.05% F.S/10 ° C

3. Zero point output: ± 0.1mV/N

10. Temperature sensitivity drift: 0.05% F.S/10 ° C

4. Nonlinear: 0.05% F.S

11. Lead: Incentive Positive: Red Incentive Negative: Green

5. Lag: 0.05% F.S

Signal positive: black signal negative: white

6. Repeatability: 0.05% F.S

12. Product size: 100 * 12.7 * 12.7mm

7. Creep: 0.05% F.S/3min

Application products:

1-10KG high-precision kitchen scale

Small scale weighing machine equipment

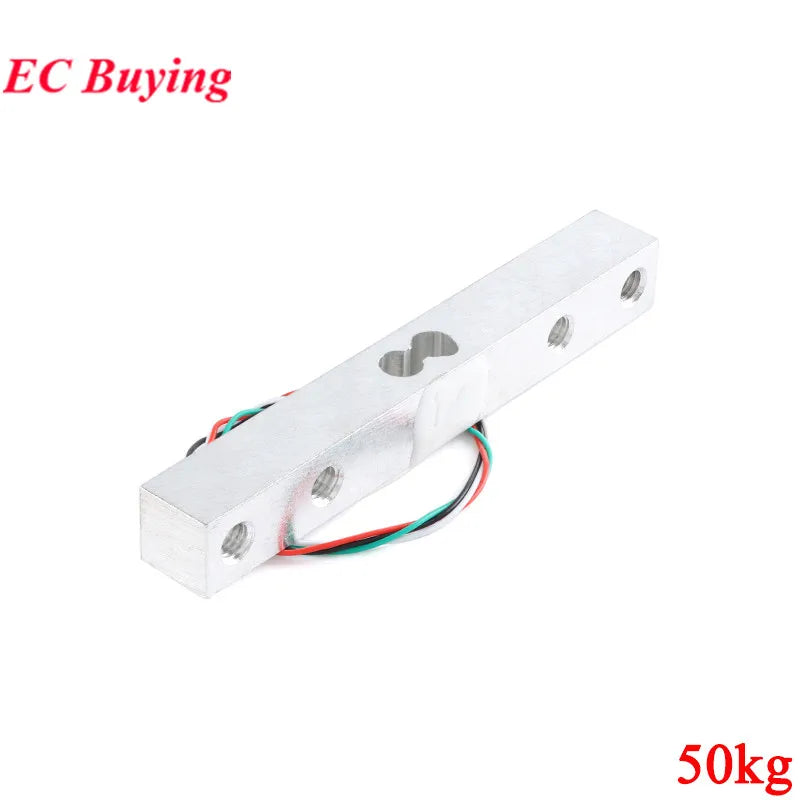

CZL-7O0E Technical Parameters

Rated load: 50kg

Operating temperature: -10---+40 ° C

Zero point output: soil 1.0mVN

Zero temperature drift: 0.1% F.S/10 ° C

Output sensitivity: 1.0 ± 0.2mVN

Temperature sensitivity drift: 0.39% F.S/10 ° C

Linear: 0.1% F.S

Insulation resistance: ≥ 2000MQ

Lag: 0.1% F.S

Excitation voltage: 5-10VDC

Repeatability: 0.05% F.S

Safe overload: 120% F.S

Creep: 0.05% F.S/3min

Comprehensive accuracy: 0.3% F.S

Output (input) impedance: 1000 ± 100 ohms

Wiring method: Red (positive power supply), Black (negative power supply), Green (positive signal), White (negative signal)
