SPECIFICATIONS

Adapter Socket: PCI-E

Applicable Network Type: Gigabit Ethernet

Application: Desktop

Bluetooth Protocol: Bluetooth 4.2

Brand Name: fenvi

Certification: CE

Choice: yes

Frequency: 5 GHz

Frequency Band Class: Dual-Band

Heat dissipation: Support

High-concerned chemical: none

Interface Type: PCI Express

Kind: Internal

Lan Transmission Rate: 1000M Ethernet

Length: 17cm

Model Name: FV-AC1200

Model Number: FV-AC1200

Origin: Mainland China

Package: Yes

Transmission Rate: 1000Mbps

Transmission Speed: 1200 Mbps

Type: WireLess

Wi-Fi Supported Frequency: 2.4G & 5G

Wired Interfaces: none

Wired socket: none

Wired transmission rate: none

Wireless Communication Standard: 802.11.ac

Wireless Protocol: 802.11n,802.11a/g,802.11ac

Wireless socket: PCI-E

Wireless transmission rate: 1200M

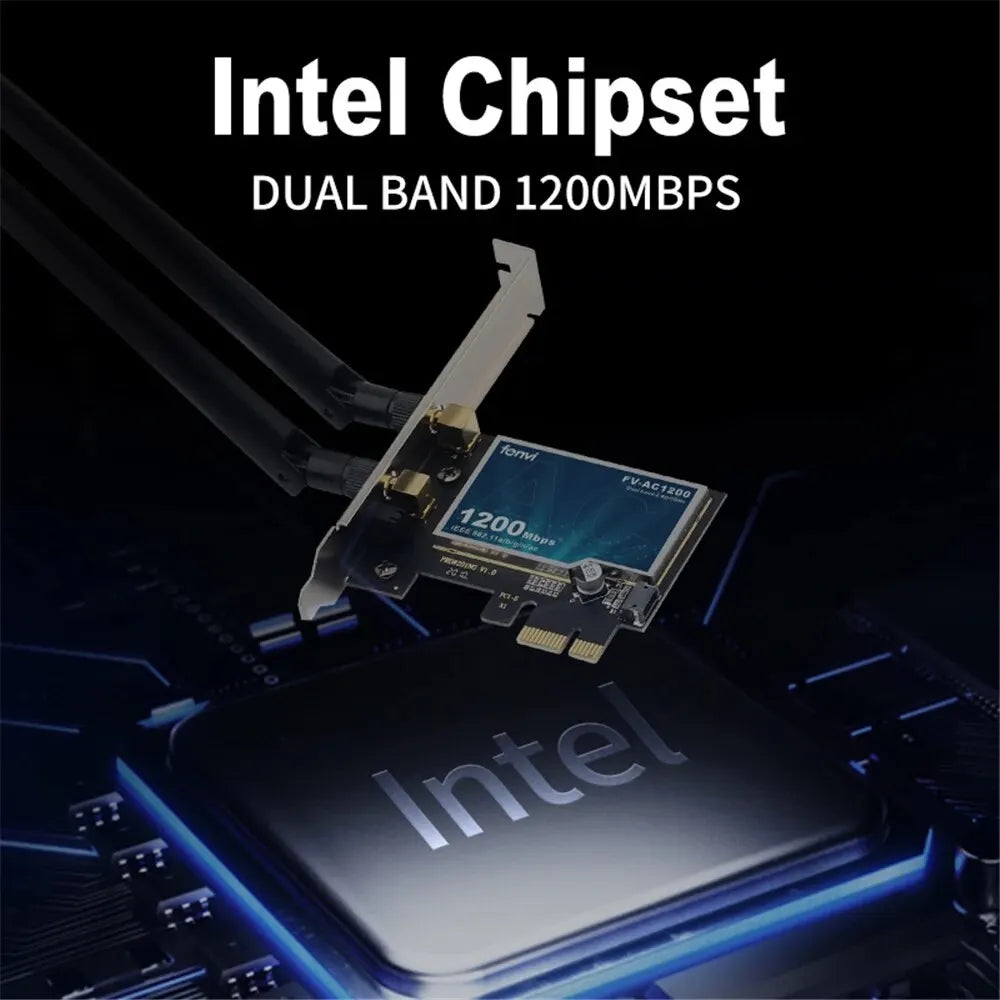

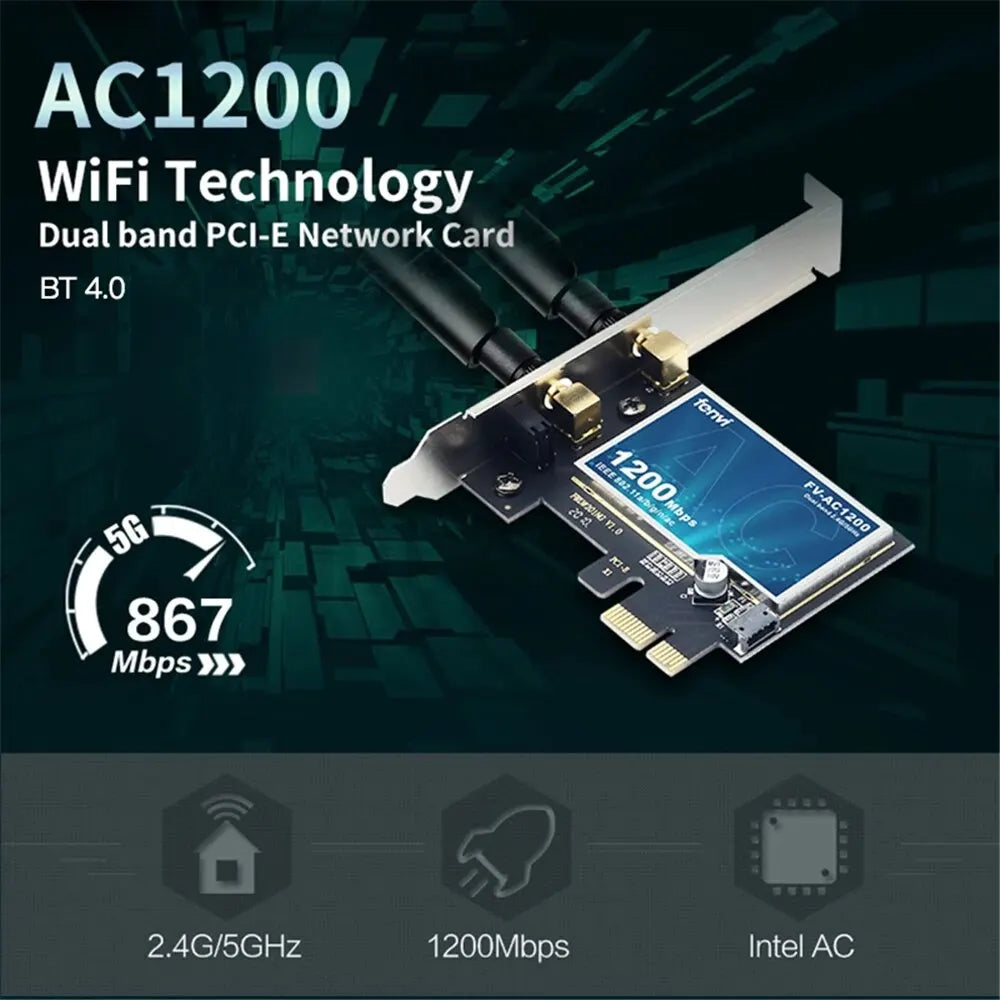

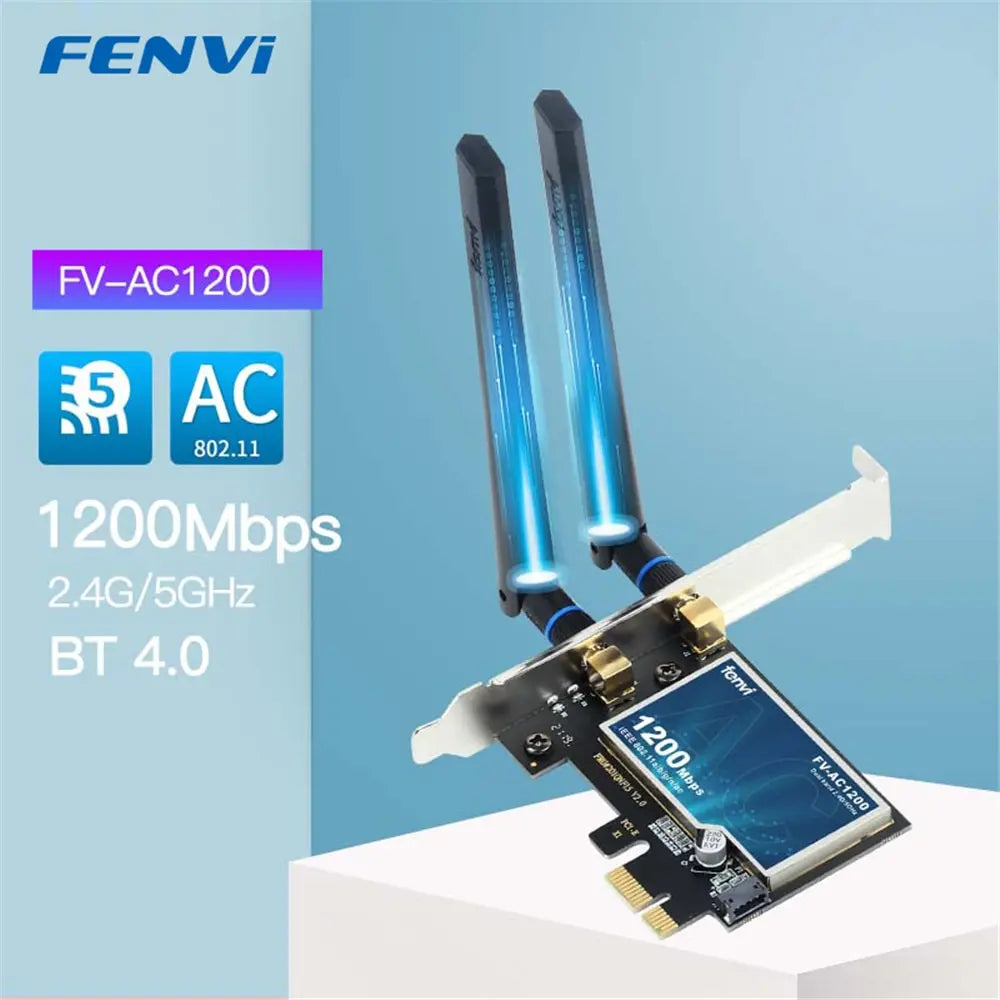

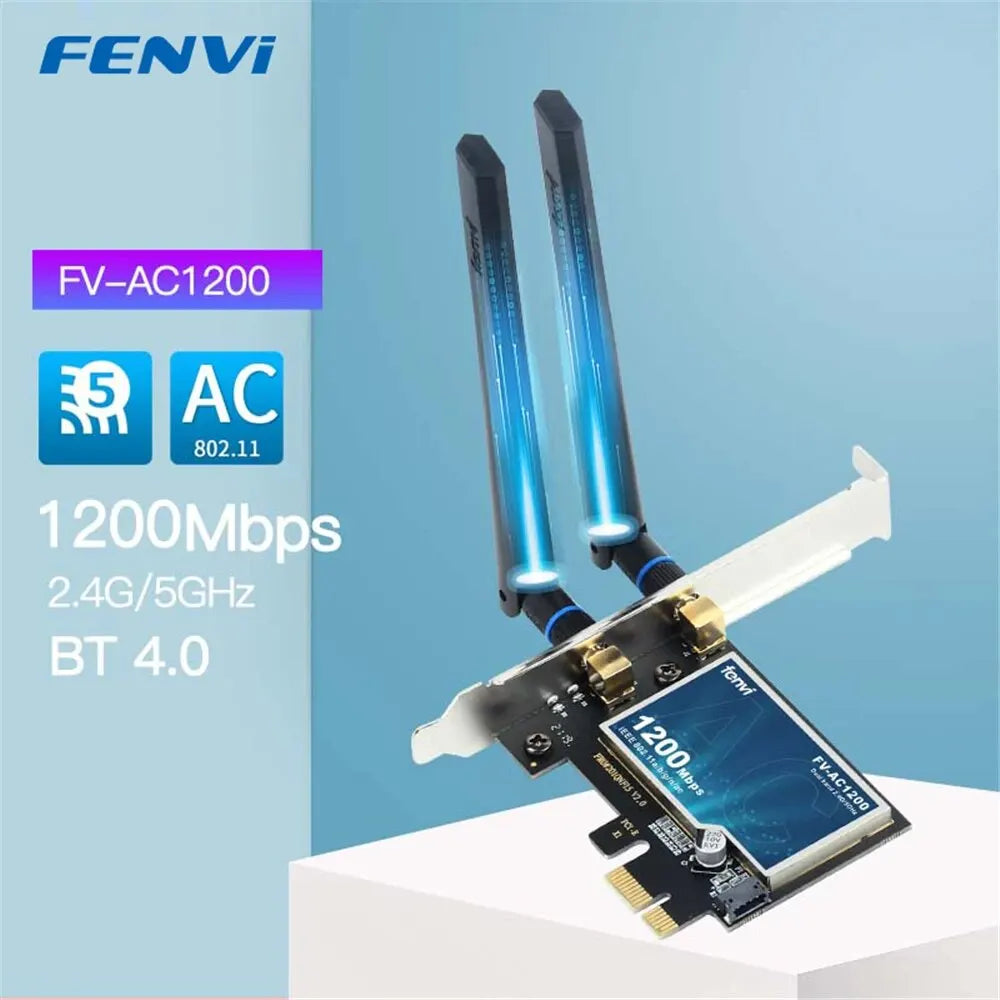

FENVI 1200Mbps Wireless WiFi Card PCIE Adapter FV-AC1200 Dual Band 2.4Ghz/5Ghz 802.11AC For Bluetooth4.0 WiFi Adapter Win7/10/11

Specification:

Brand: FENVI
Model: FV-AC1200
IEEE Standard: 802.11ac
With Blutetooth 4.0
Dual Band 2.4Ghz-300Mbps/5Ghz-867Mbps

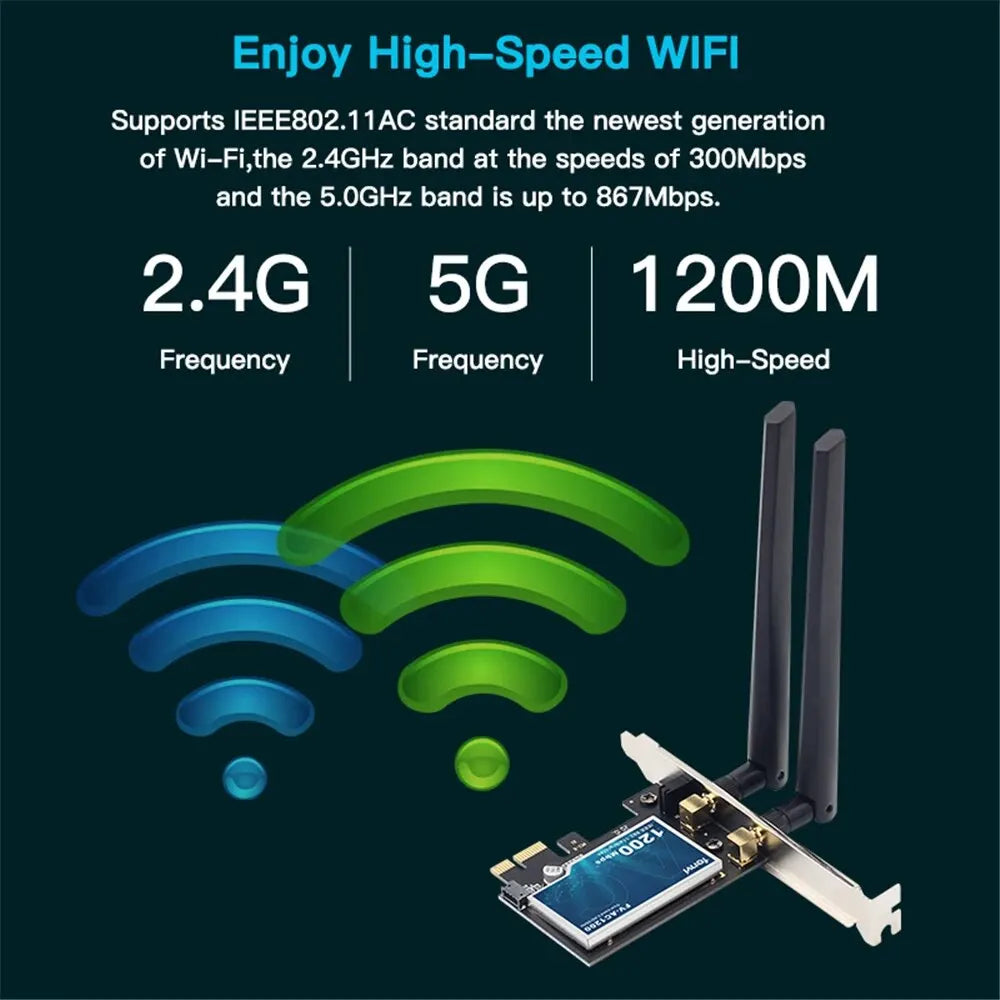

Wireless Transmission Speed: 5GHz up to 867 Mbps, 2.4GHz up to 300Mbps
Streams: 2X2
IEEE WLAN Standard: IEEE 802.11a/b/g/n/ac,

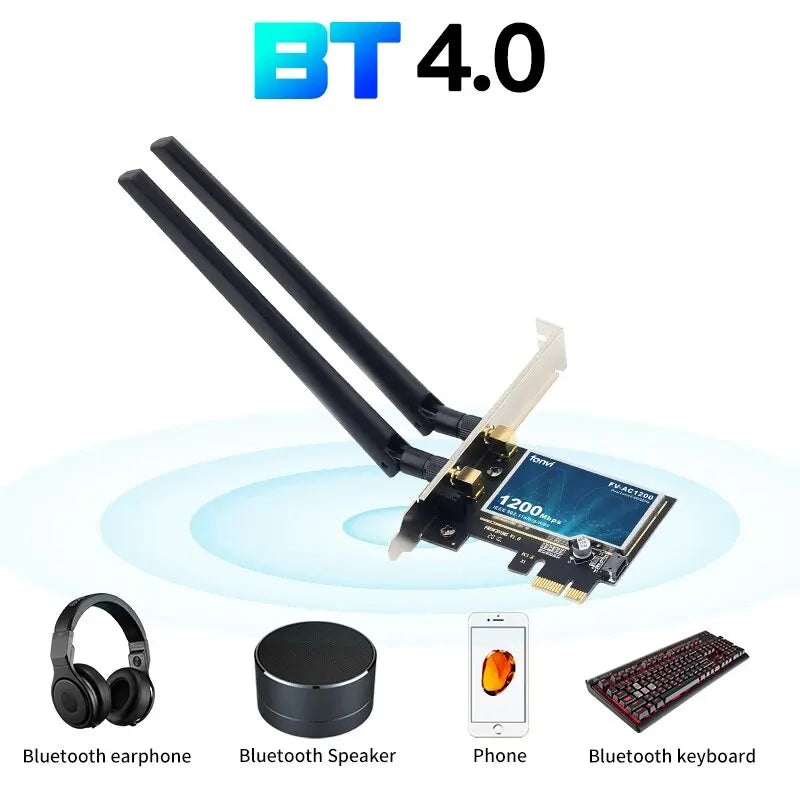

Bluetooth: Dual Mode Bluetooth 4.0,
Antenna Diversity: Supported

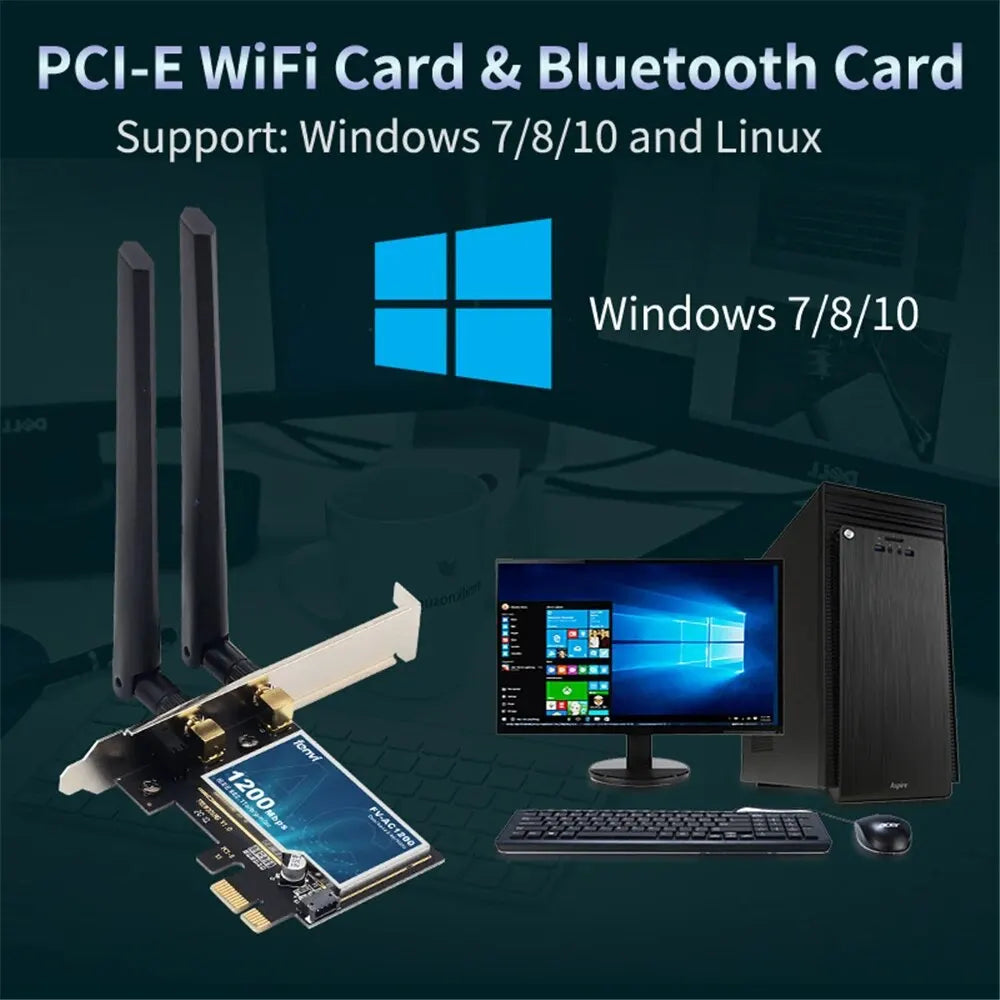

Operating Systems: Microsoft Windows 7/8/10/11
Compatibility With: Almost computer with PCI Express (PCI-E 1X/4X/16X slot) Interfaces,

If it can't work on PCI-E X1slot, please test it on PCI-E X4 or X16 slot.Not Fit IBM/Lenovo/HP Version Desktop;
Driver download: You can download the driver on fenvi website

Q1: Does it work on AMD chipset motherboard?
A: NO

Q2: Does it support Linux system?
A: Sorry, dear. currently we only provide Win 10 and Win 11 driver, no Linux service.

Q3: Does it support WiFi and Bluetooth function?
A: Yes, both support. But please pay attention to that the drivers for WiFi and Bluetooth are separate and you need to install two drivers.

Q4: The bluetooth doesn't work, what should I do?
A: Please connect the 9-pin USB cable (black) included in the package to the 9-pin USB 2.0 interface on the motherboard. The white end connects to the pcie network card adapter socket. Then install the bluetooth driver.

Q5: The WiFi doesn't work, what should I do?
A: ① Check whether the device wifi is recognized by the computer in the device manager. If there is a network controller with a yellow exclamation mark, please install the wifi driver. If the driver is already installed, a yellow warning will still be displayed. Please right-click, click Update, and select the driver file path to manually update.

② Check whether there is an M.2 hard disk on the motherboard, which may cause a hardware function conflict. The M.2 hardware in the parallel channel needs to be unplugged.
Check that the antenna connection is secure.

* If your desktop computer has built-in wifi function, please turn off the built-in wifi when using it on the desktop computer.
