LD2410C 24GHz Sensor Module Human Presence Radar Sensor Module FMCW LD2410 Millimeter Wave Radar Sensor Module
LD2410C 24GHz Sensor Module Human Presence Radar Sensor Module FMCW LD2410 Millimeter Wave Radar Sensor Module
Couldn't load pickup availability
SPECIFICATIONS
Application: MOBILE PHONE
Brand Name: NONE
Choice: yes
Condition: New
Dissipation Power: standard
High-concerned chemical: none
Origin: Mainland China
Package: DIP
Type: Module
is_customized: Yes

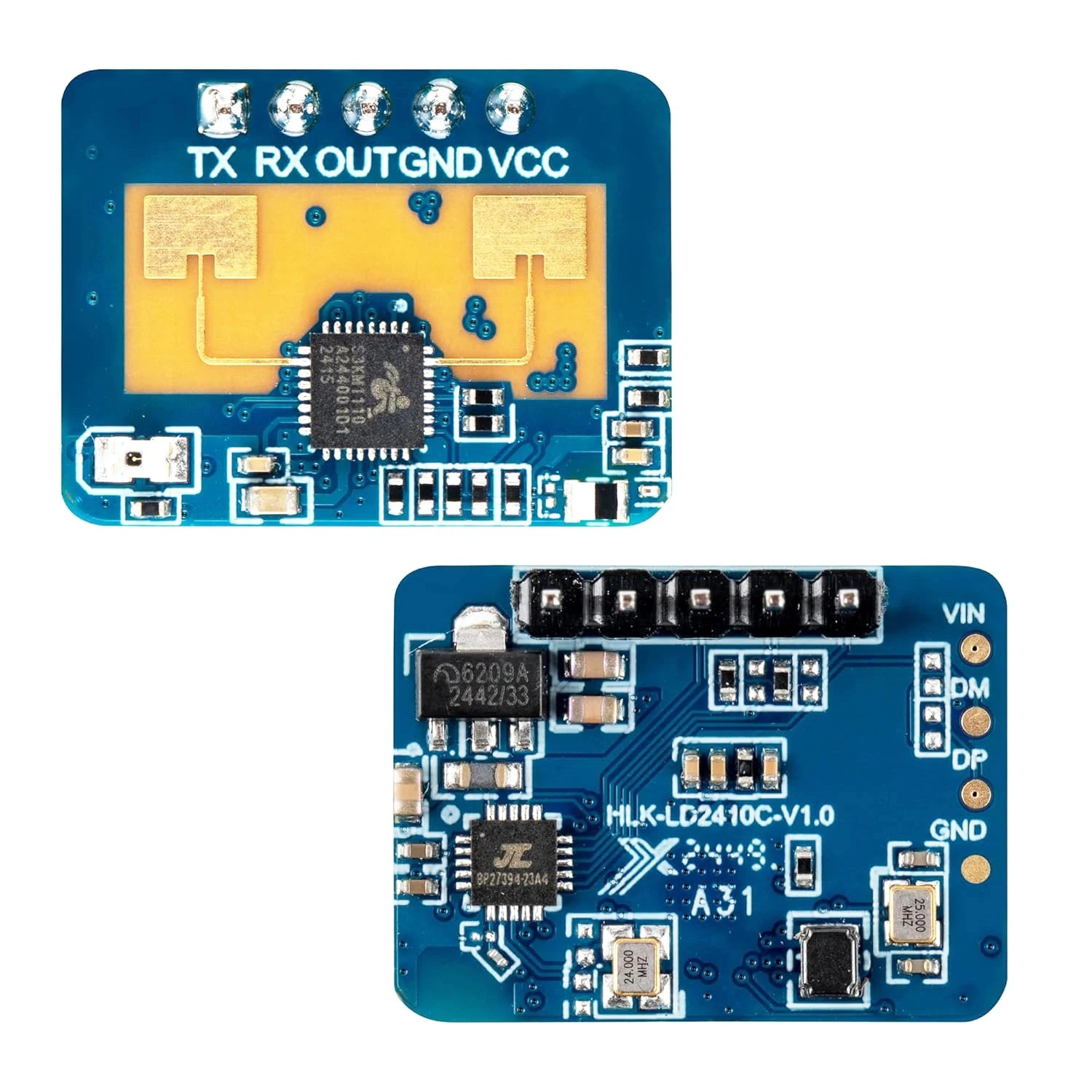

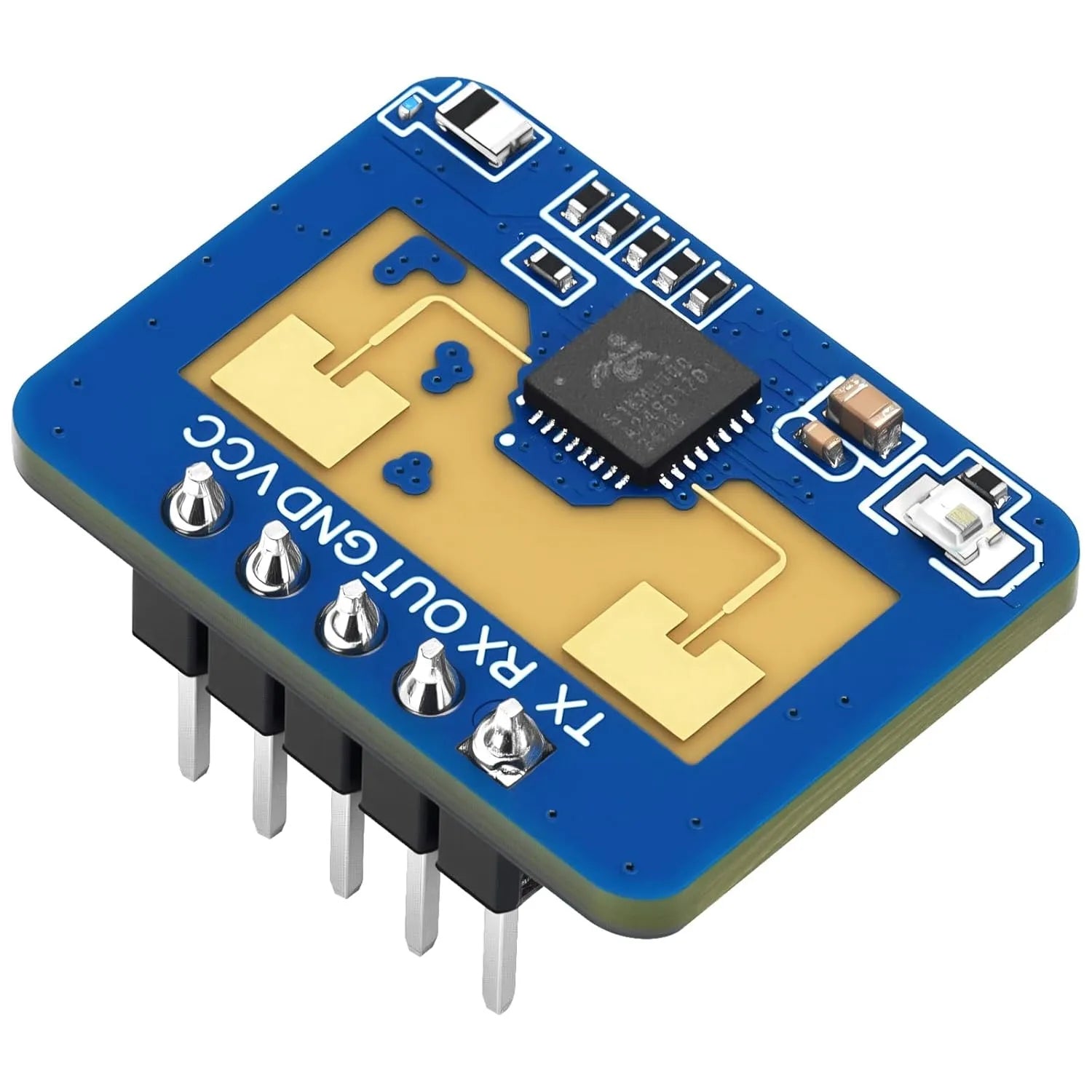

LD2410 Human Presence Radar Sensor Module

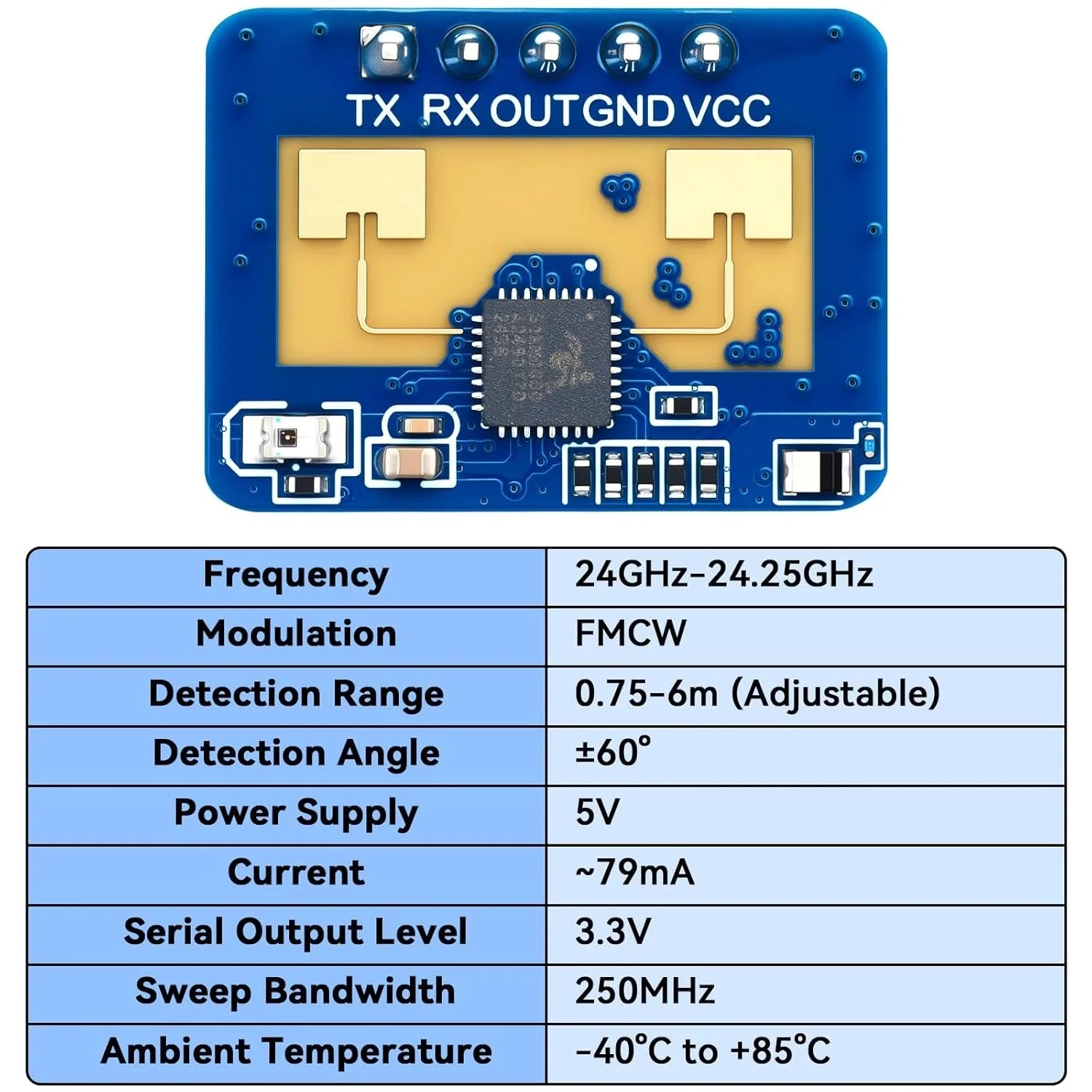

Product characteristics
Frequency: 24GHz~24.25GHz
Modulation mode: FMCW
Detection distance: 0.75m~6m adjustable
Detection angle: ± 60°
Power supply: 5V
Current: 79mA
Output serial port level: 3.3V
Sweep bandwidth: 250MHz
Range resolution 0.75m
Ambient temperature: - 40℃~+85℃
Data format: serial port ASCII output/high and low level 3.3V&0V

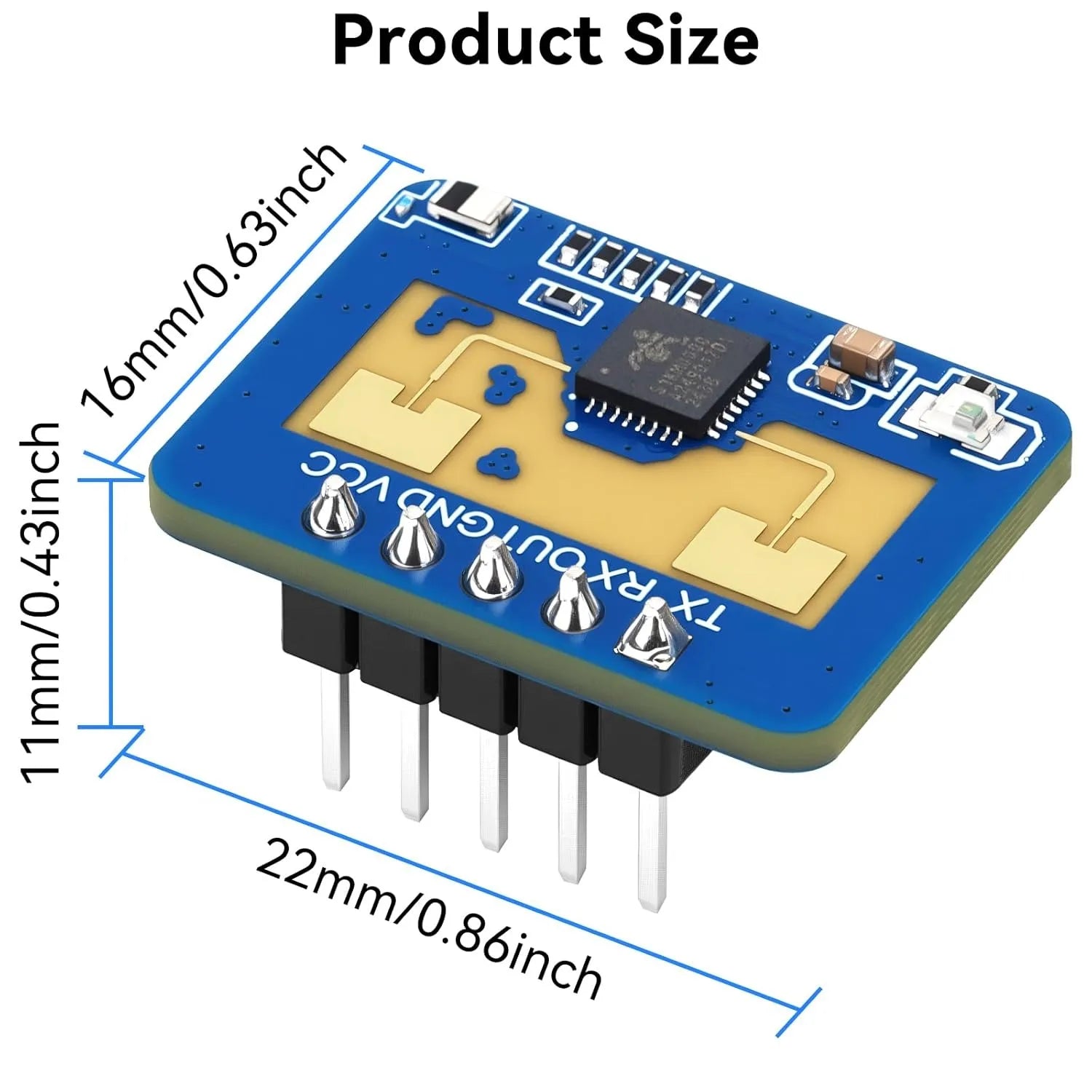

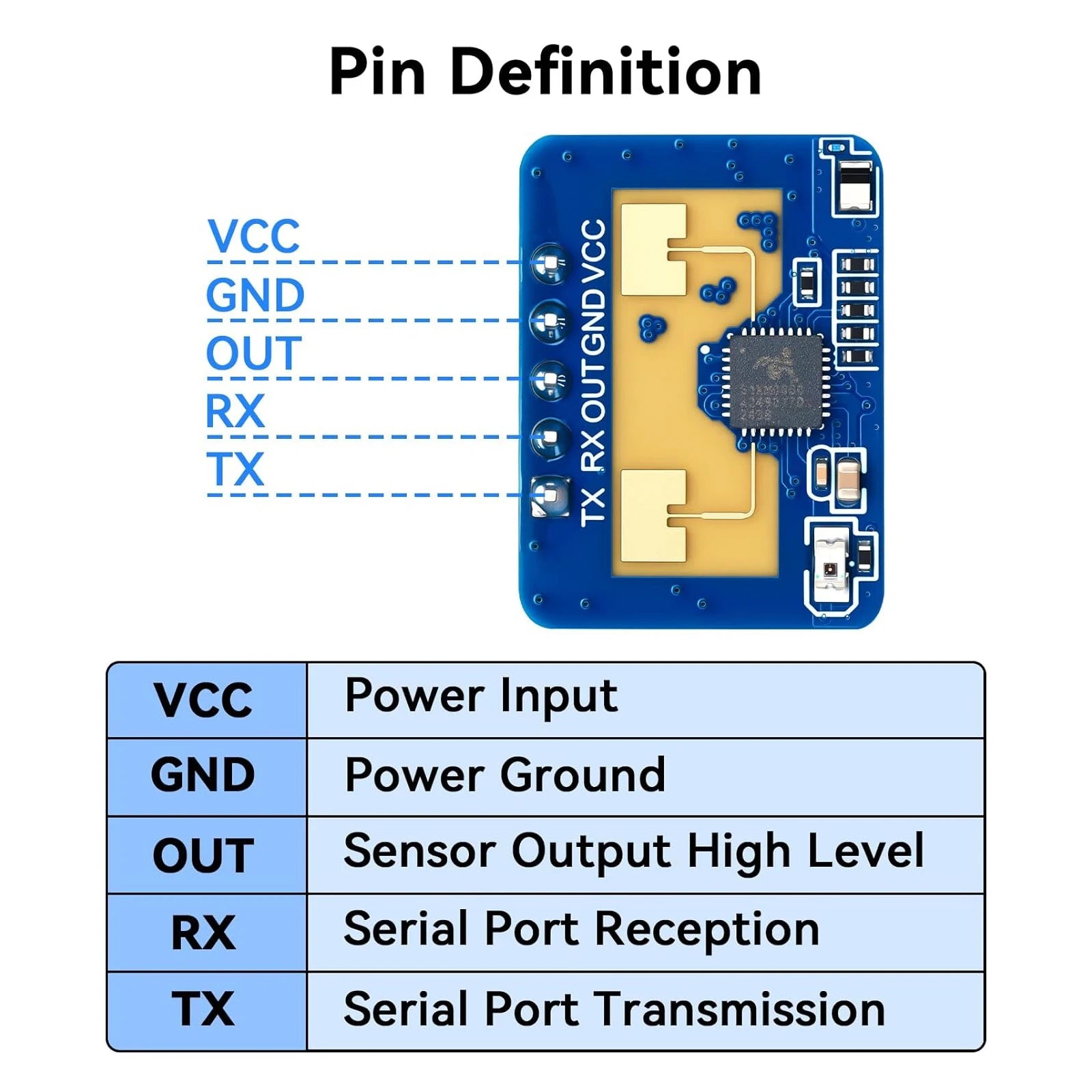

Module size: 16mmx22mm, with 5 pin holes reserved for hardware (factory default pin)
The hole diameter of pin hole is 0.9mm, and the distance between bow and foot is 2.54mm
