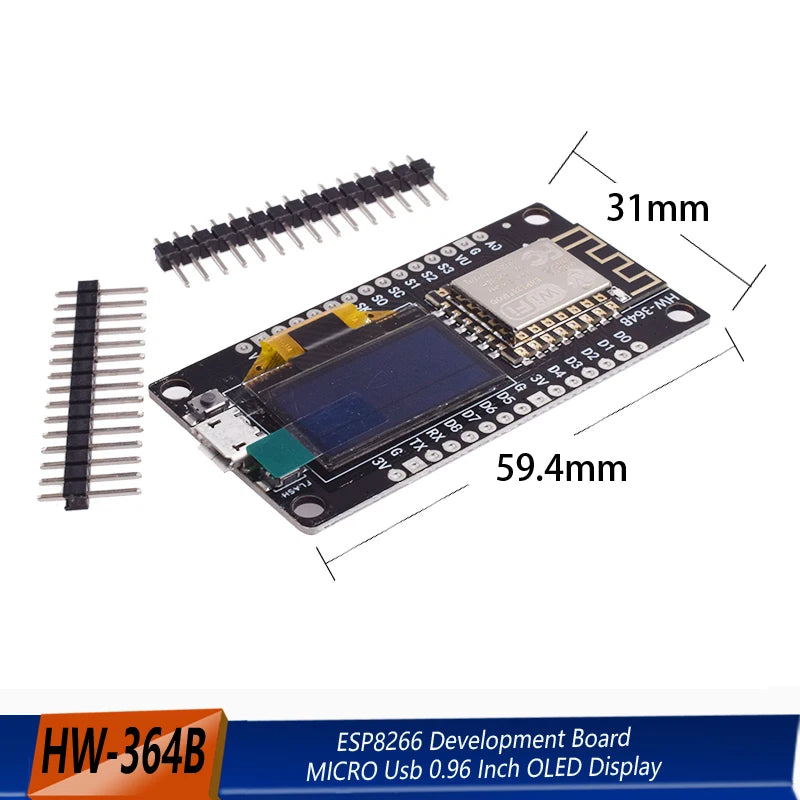

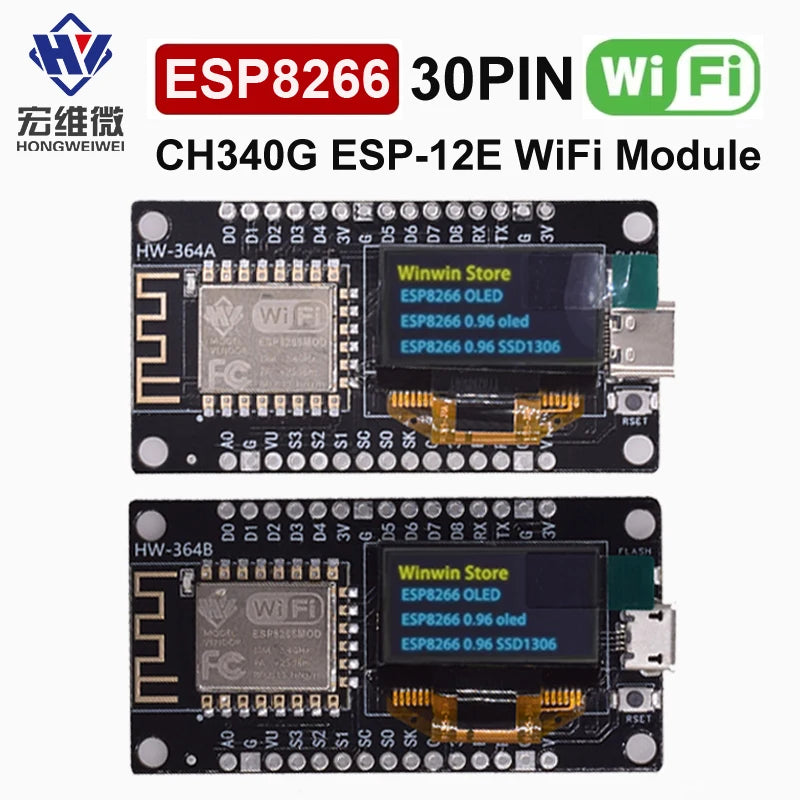

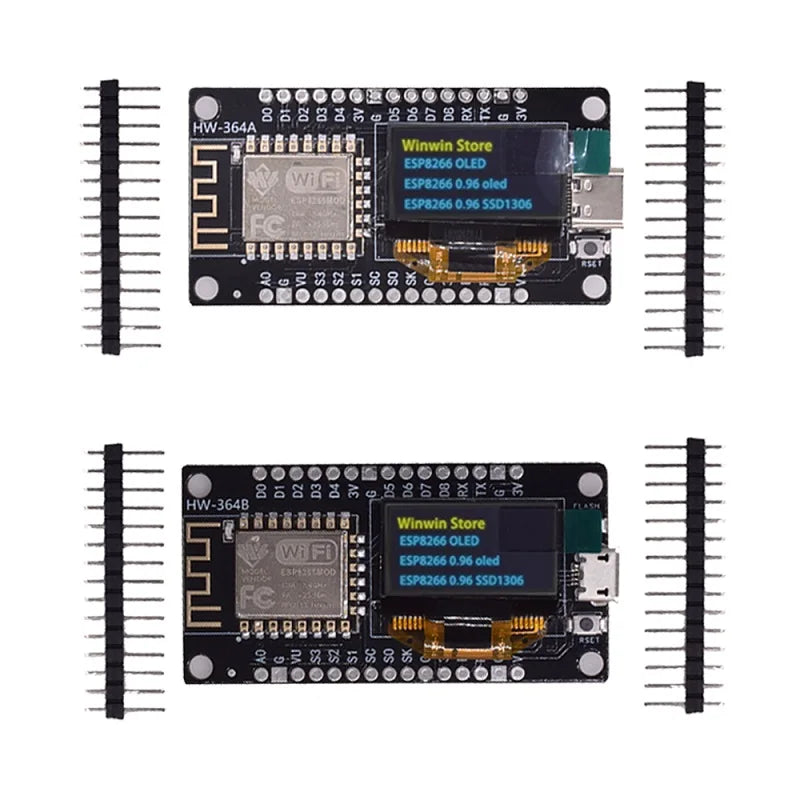

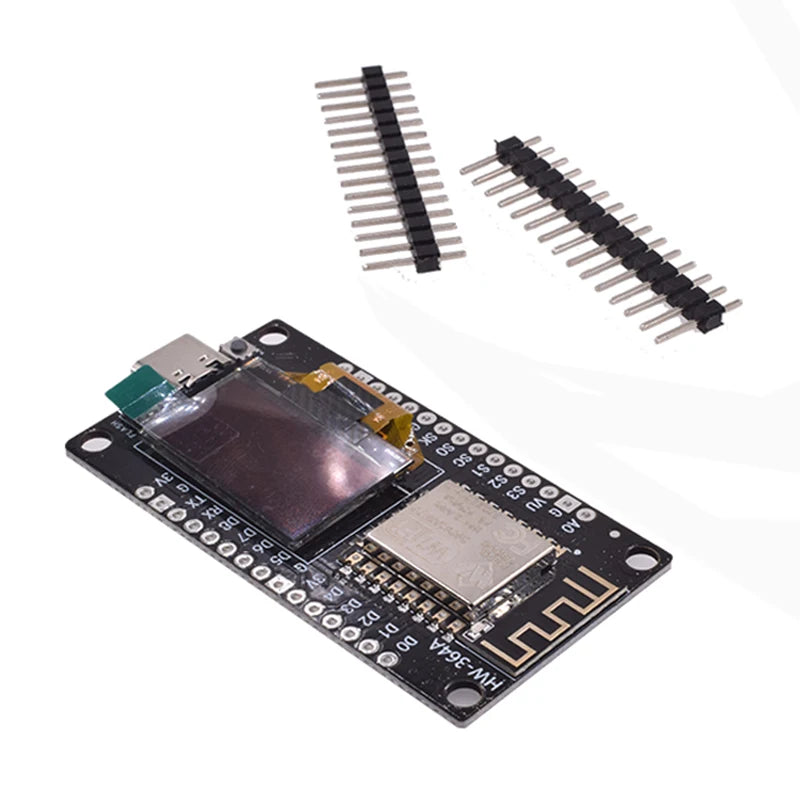

NodeMCU ESP8266 Development Board With 0.96 Inch OLED Display CH340G ESP-12E WiFi Module TYPE-C USB For Arduino/Micropython
NodeMCU ESP8266 Development Board With 0.96 Inch OLED Display CH340G ESP-12E WiFi Module TYPE-C USB For Arduino/Micropython
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NoEnName_Null
Choice: yes
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Module
is_customized: Yes
NodeMCU ESP8266 Development Board With 0.96 Inch OLED Display CH340G ESP-12E WiFi Module TYPE-C USB For Arduino/Micropython
Product Introduction:

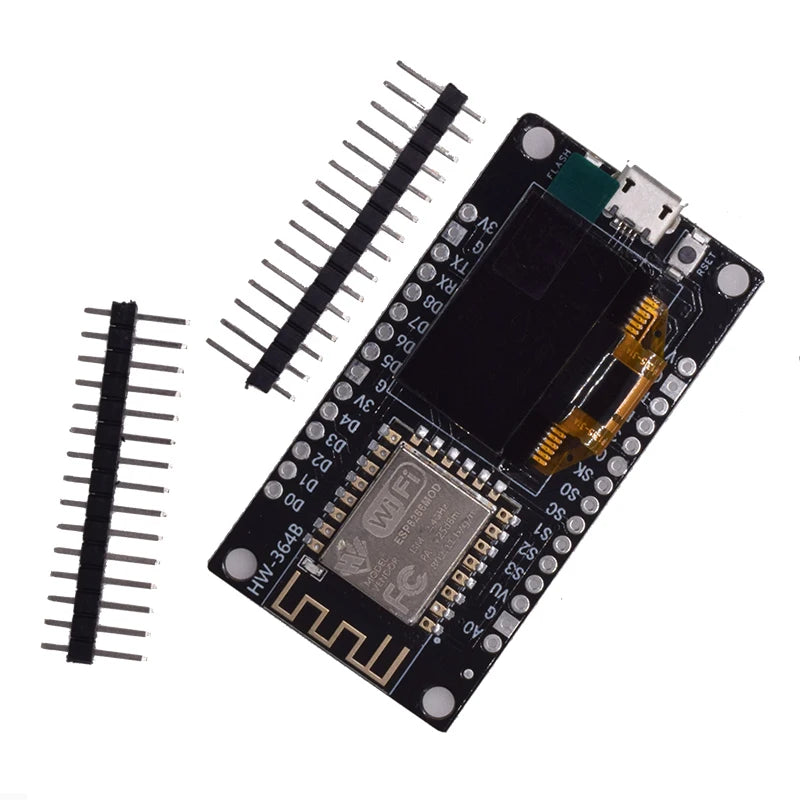

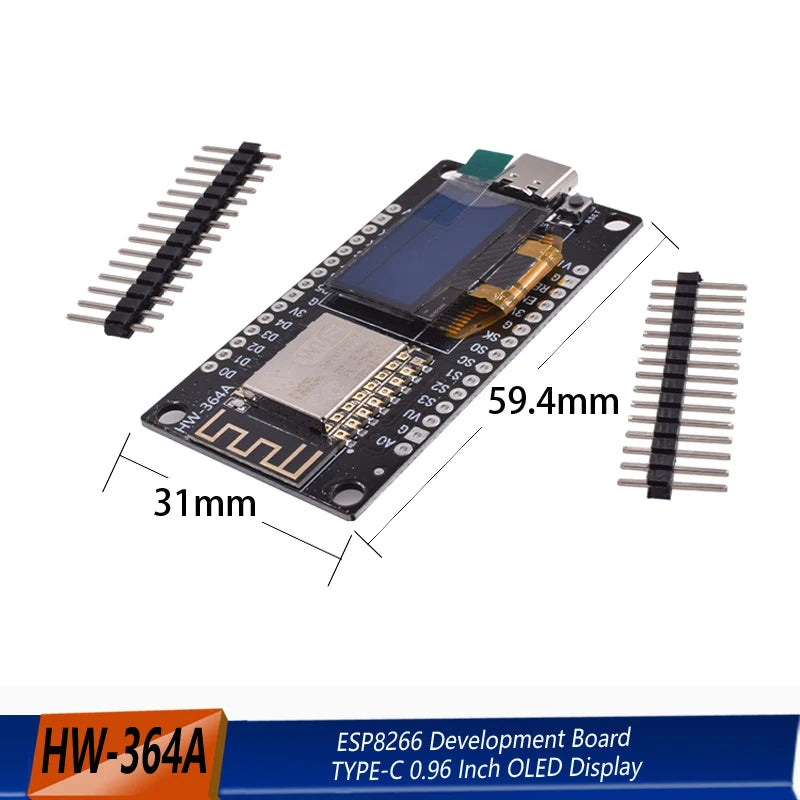

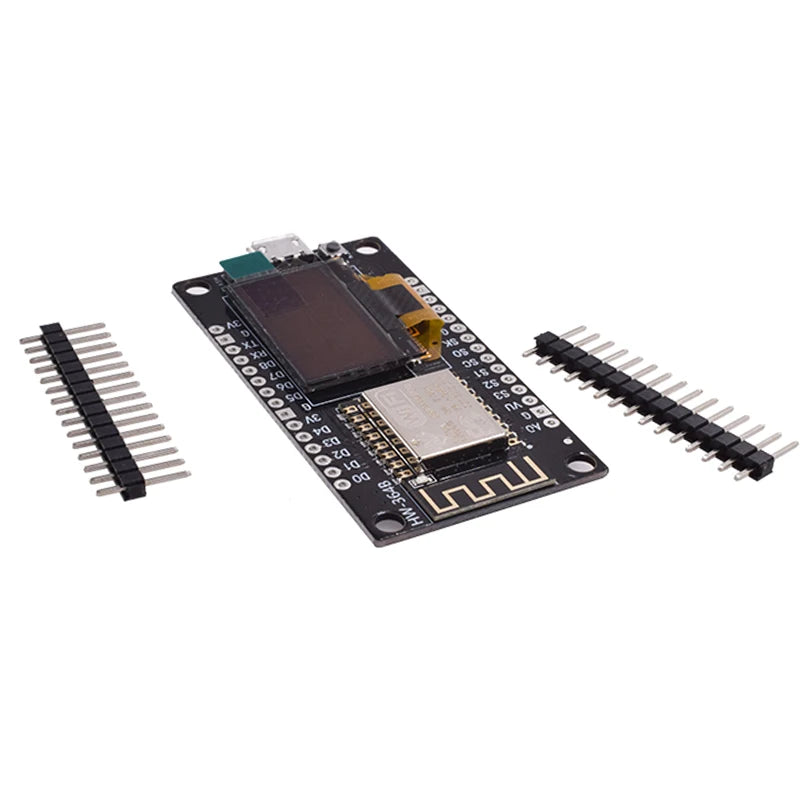

This is an ESP8266 0.96 OLED module that has all the features of a traditional ESP8266 module. Compared to 0.96 inches
OLED displays seamlessly integrate, eliminating the need for wires and test boards.

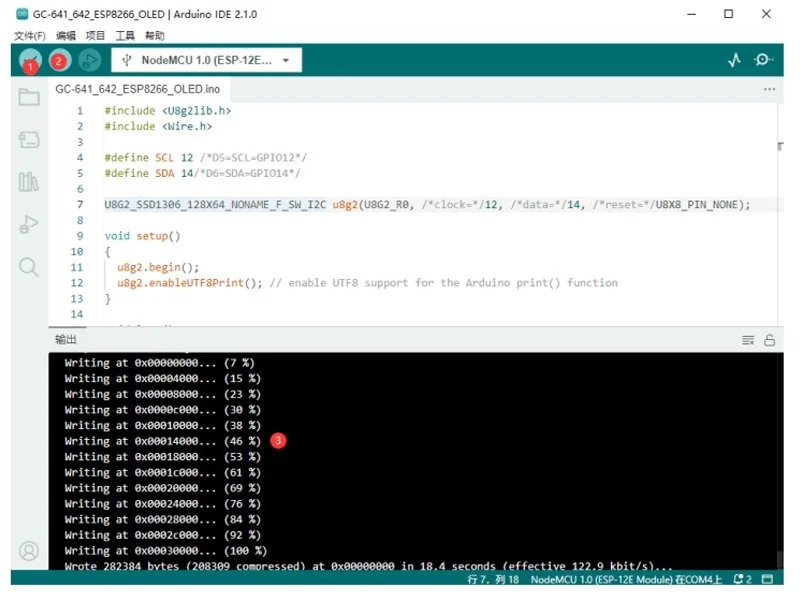

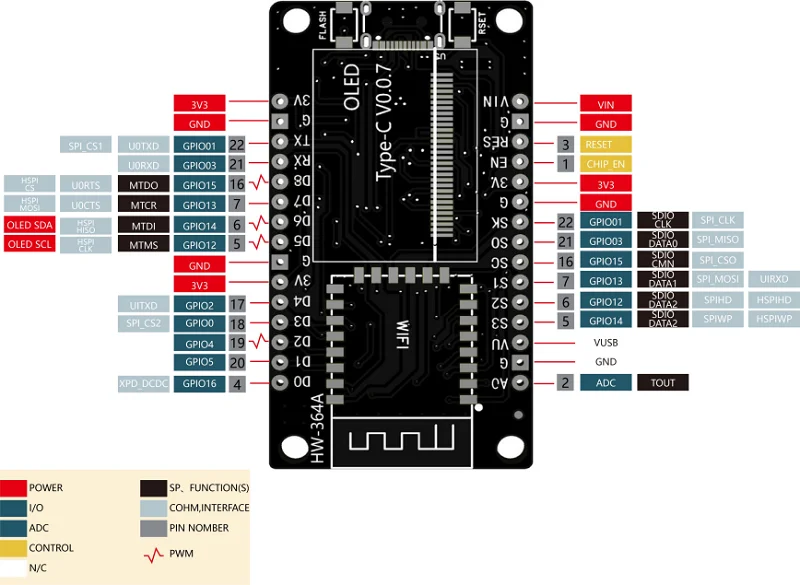

This board uses I2C to connect to the OLED display through SDA (D6/GPIO14) and SCL (D5/GPIO12) pins.
With this board, various information and data can be displayed.
Display function: High resolution 128x64 with SSD-1306 driver, compatible with I2C and SPI interfaces. In addition,
It uses a Type-C (or Micro) USB cable for connection.
Product parameters:
Working voltage: 3.3V
Input voltage: 7-12V
Number/0 pin (DIO): 16

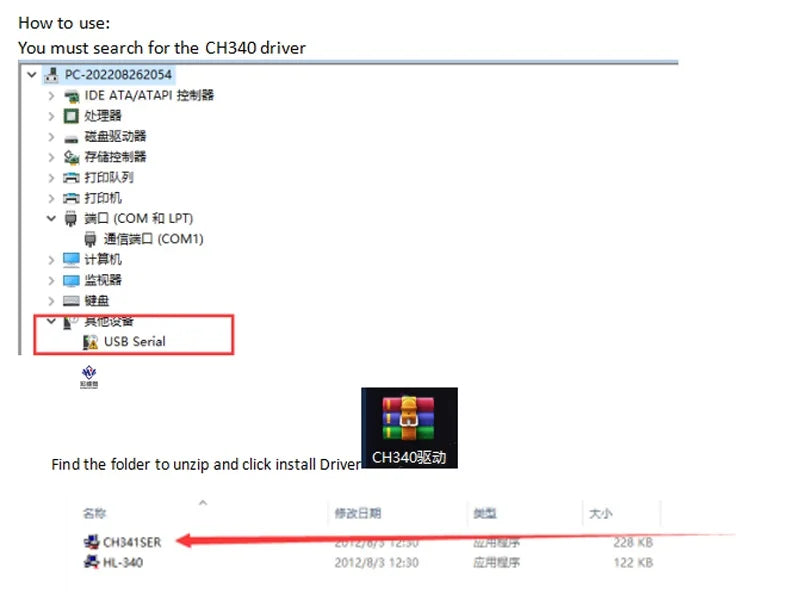

Driver program CH340G
Flash 4 MB SRAM: 64 KB
Clock speed: 80 MHz
Weight: 10g
