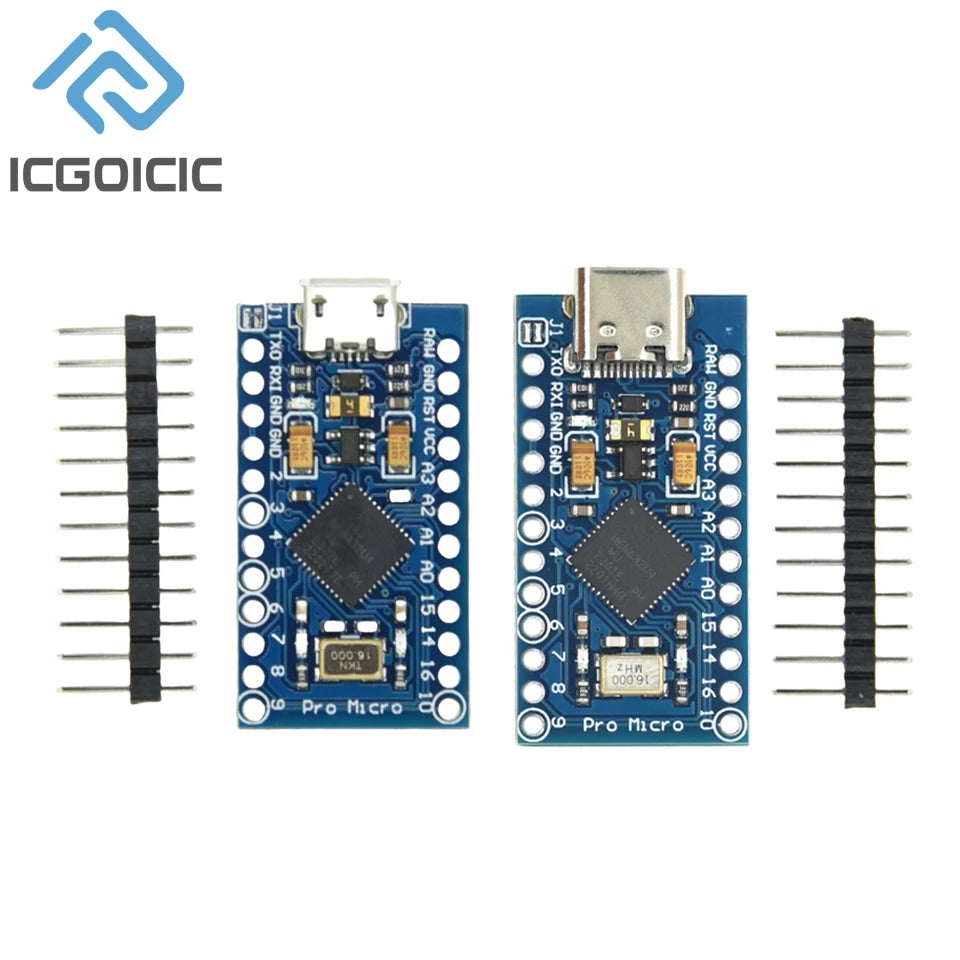

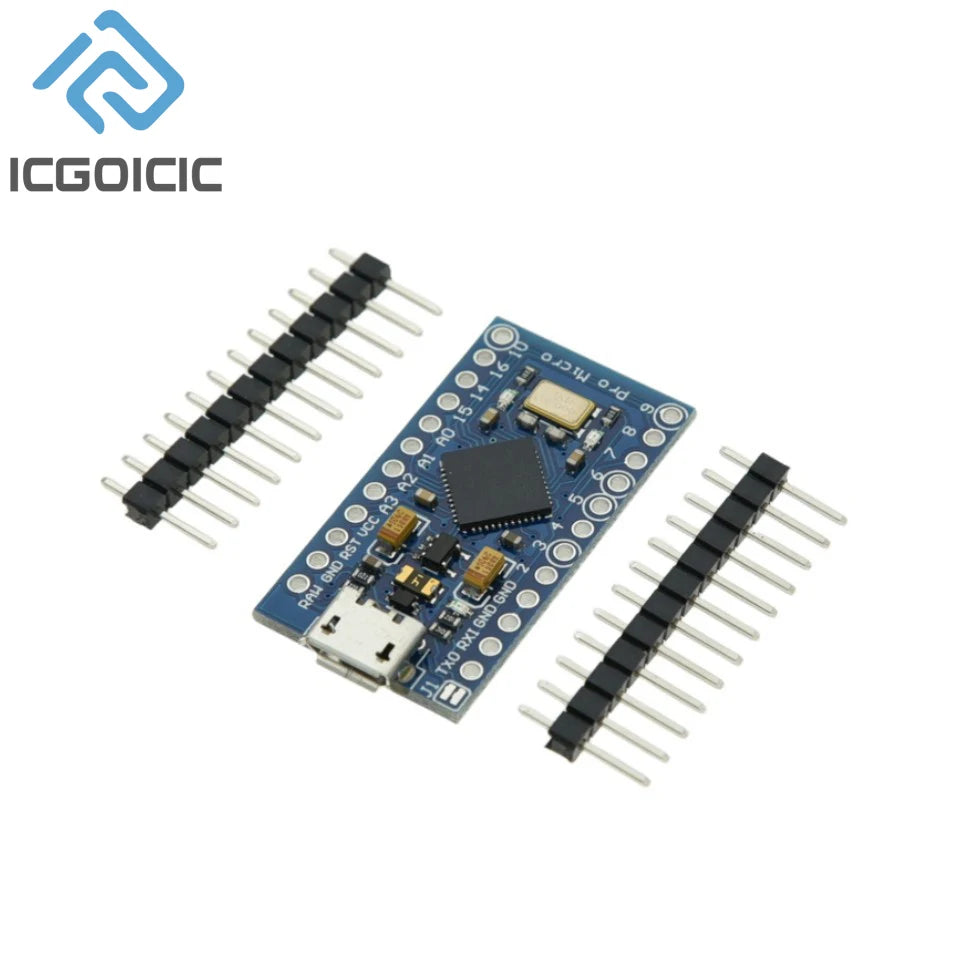

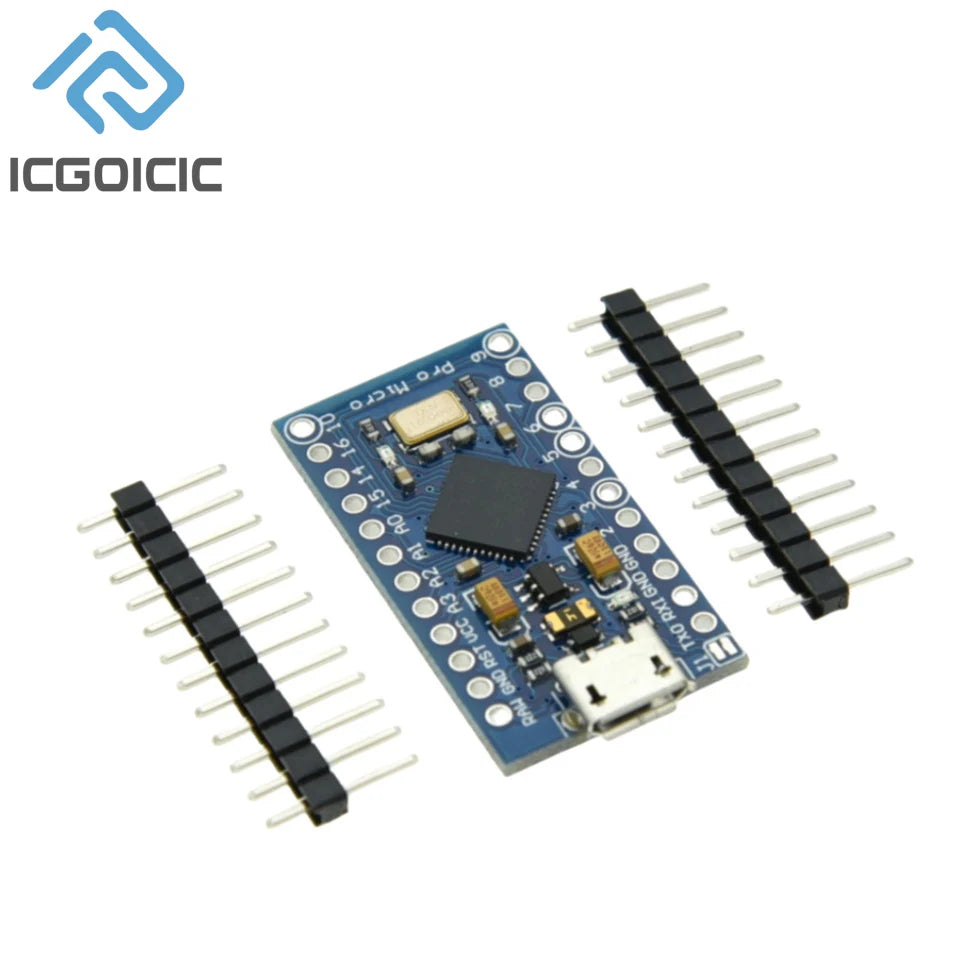

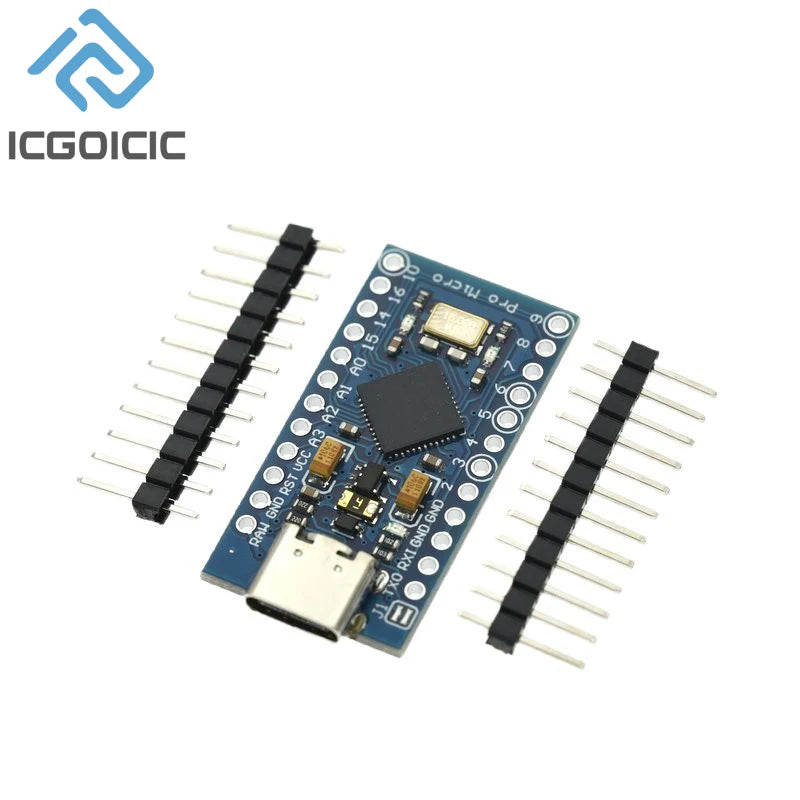

Type-C MICRO USB ATMEGA32U4 Module 5V 16MHz Board For Arduino ATMEGA32U4-AU/MU Controller Pro-Micro Replace Pro Mini
Type-C MICRO USB ATMEGA32U4 Module 5V 16MHz Board For Arduino ATMEGA32U4-AU/MU Controller Pro-Micro Replace Pro Mini
Couldn't load pickup availability
SPECIFICATIONS
Application: Computer
Brand Name: NONE
Choice: yes
Condition: New
Dissipation Power: N/A
High-concerned chemical: none
Model Number: ATMEGA32U4
Operating Temperature: N/A
Origin: Mainland China
Supply Voltage: N/A
Type: Module
is_customized: Yes
Characteristic:
ATMEGA32U4 running in 5V/16MHz
Supported by V1.0.1 IDE
Micro USB interface programming on the board of directors
10 4 bit ADC pins
12 digital I / O (5 PWM capability)
Rx and Tx hardware serial connection
Explain:
This little board all the adjacent neat skill: 4 Channel 10 bit ADC, five PWM pin, 12 DIO and hardware serial connection RX and TX you are familiar with. Running on 16MHz and 5V, this committee will remind you of a lot of other compatible boards that you like, but this little guy can go anywhere. There is a voltage regulator on board, so it can accept up to 12VDC. If you are supplying an unstable power supply board, be sure to connect to the "RAW" not on the VCC pin.This latest version of the modified silk error, so pin 14 is the correct mark. We have also added a PTC fuse and diode protection to the
power circuit and to correct the RX and LED TX circuits.
