SPECIFICATIONS

Accessory Type: USB To DC Cable

Battery Included: no

Brand Name: NONE

Choice: yes

Compatible With: Module

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

DESCRIPTION

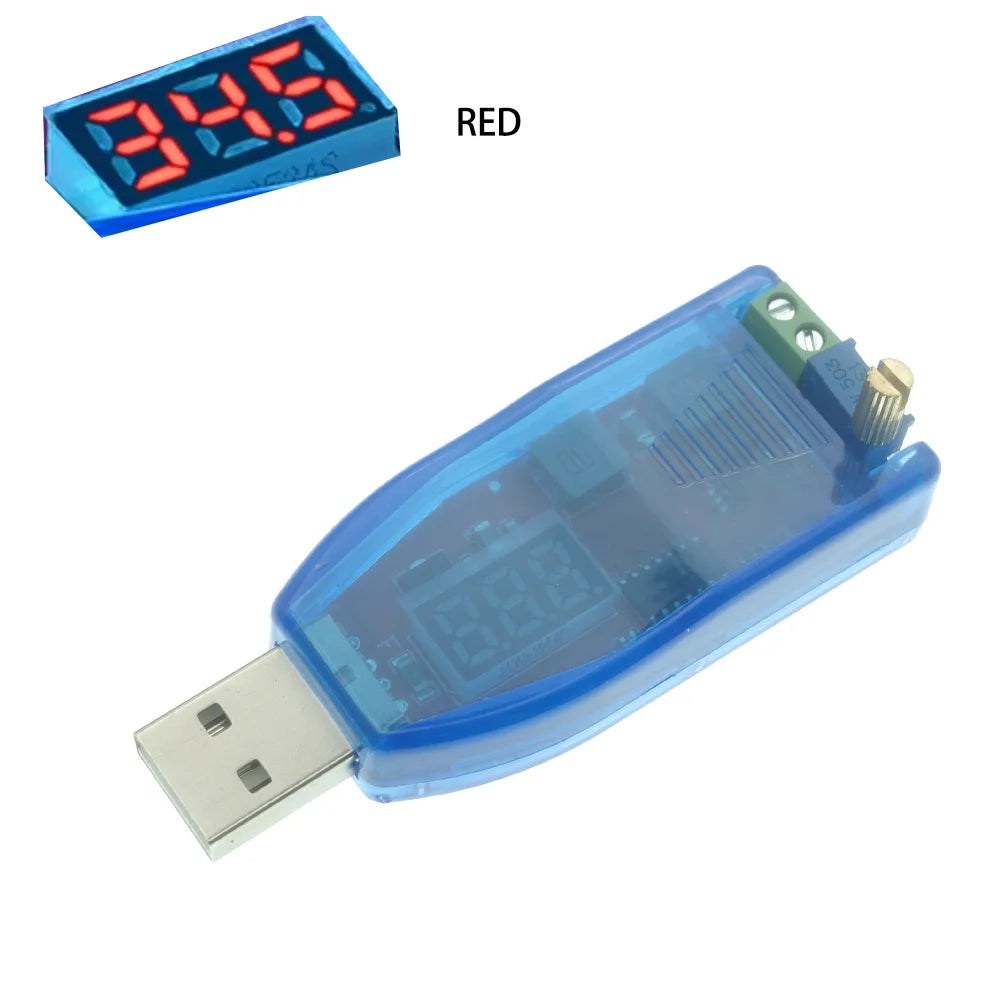

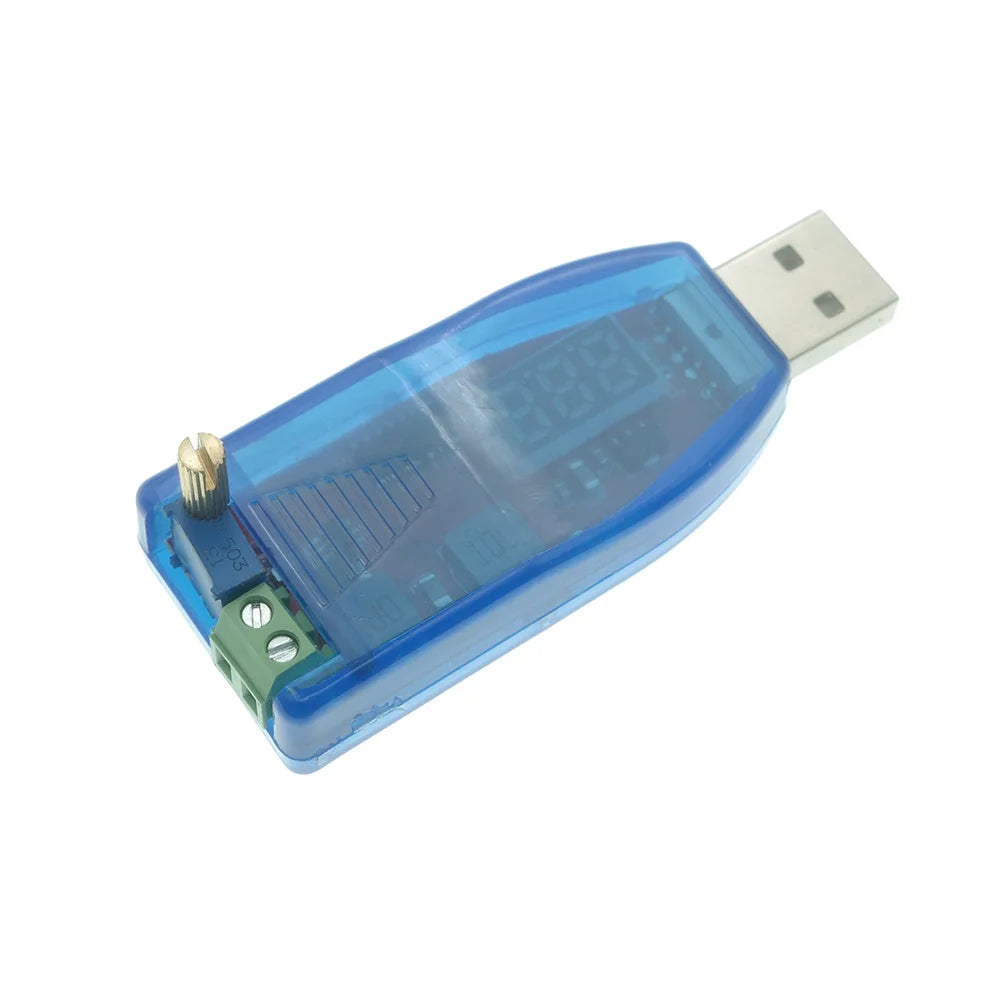

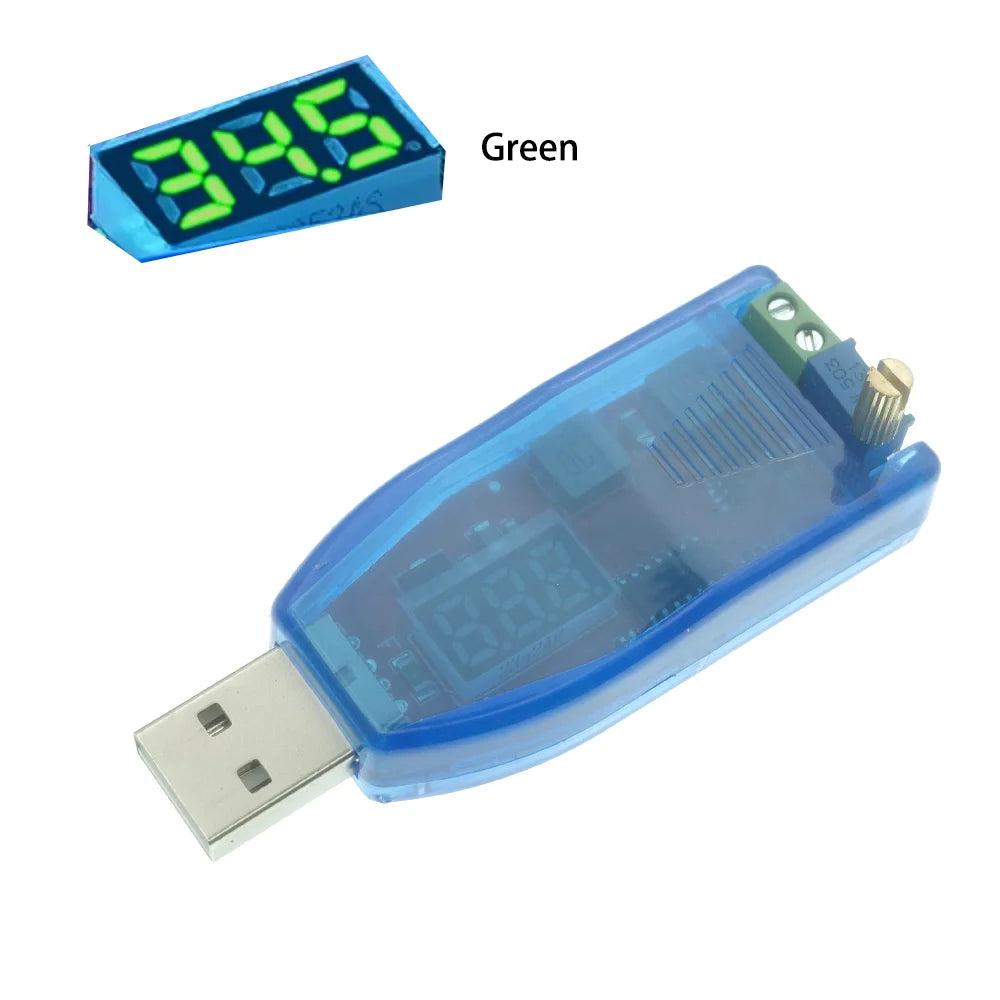

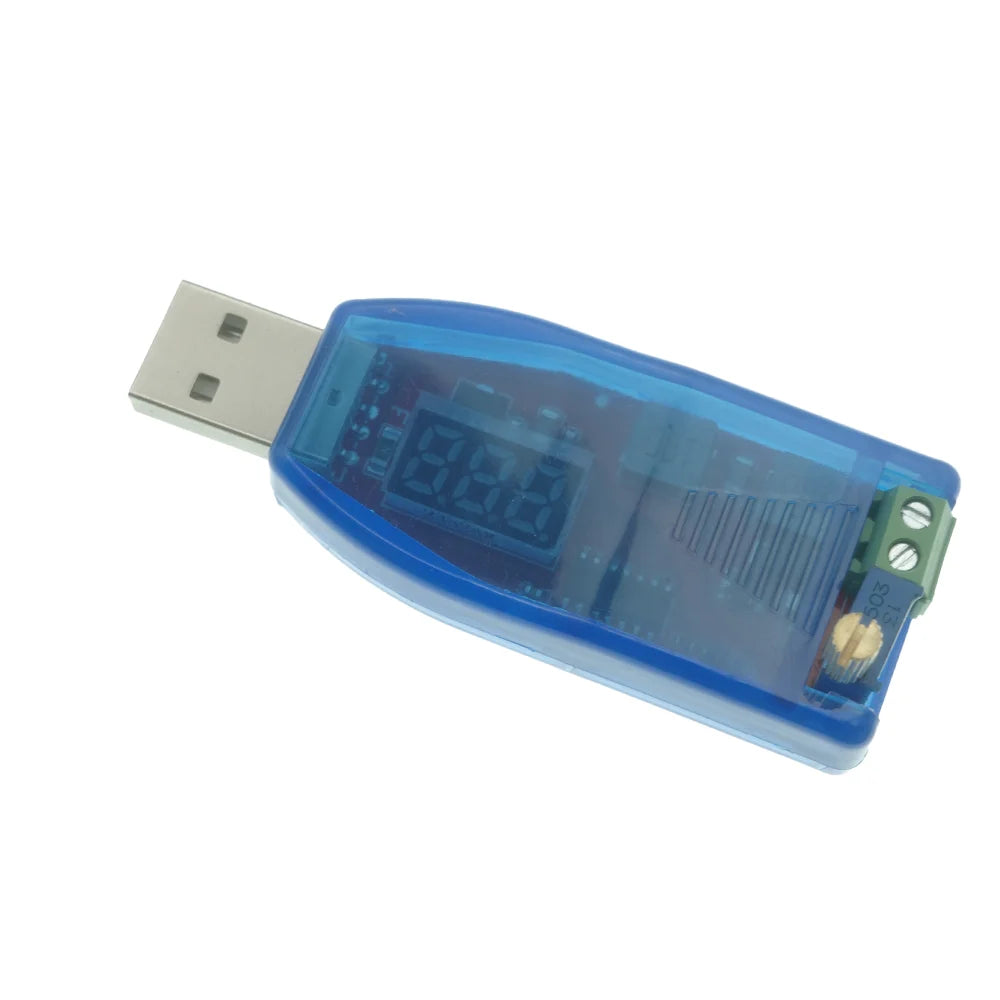

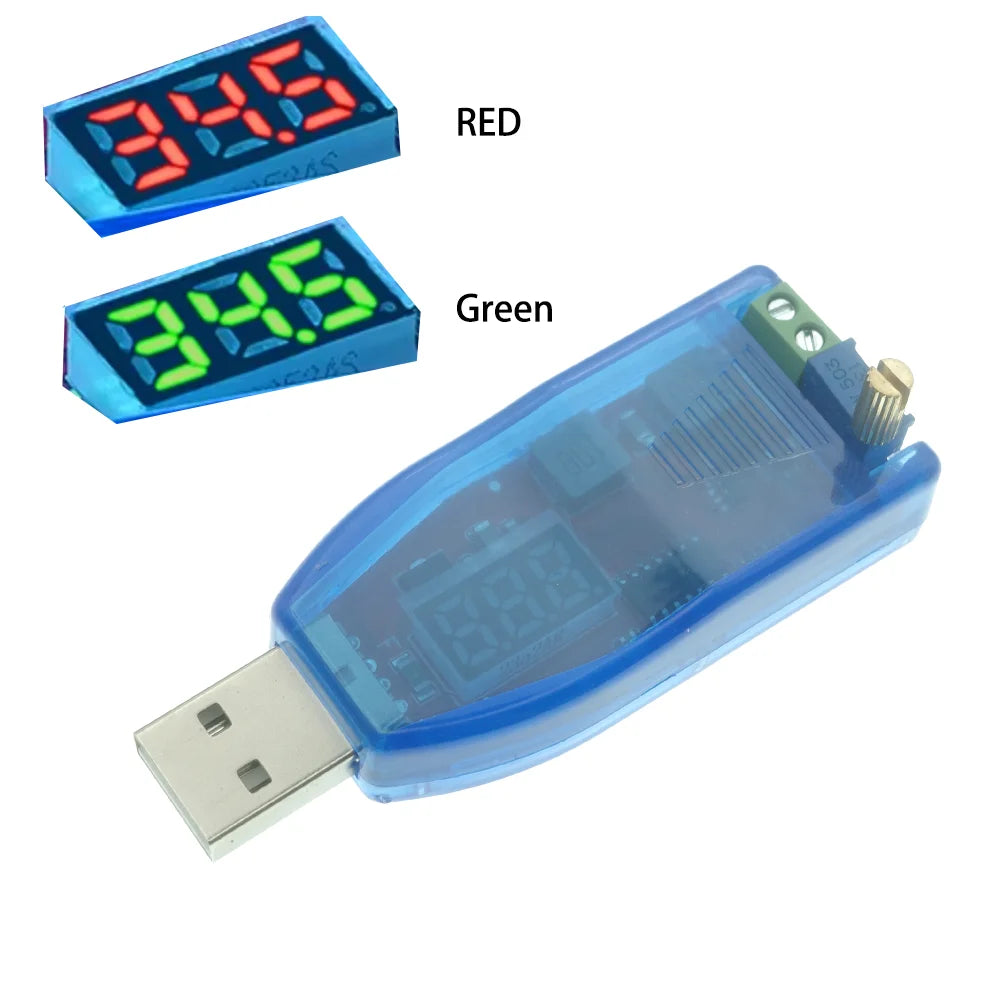

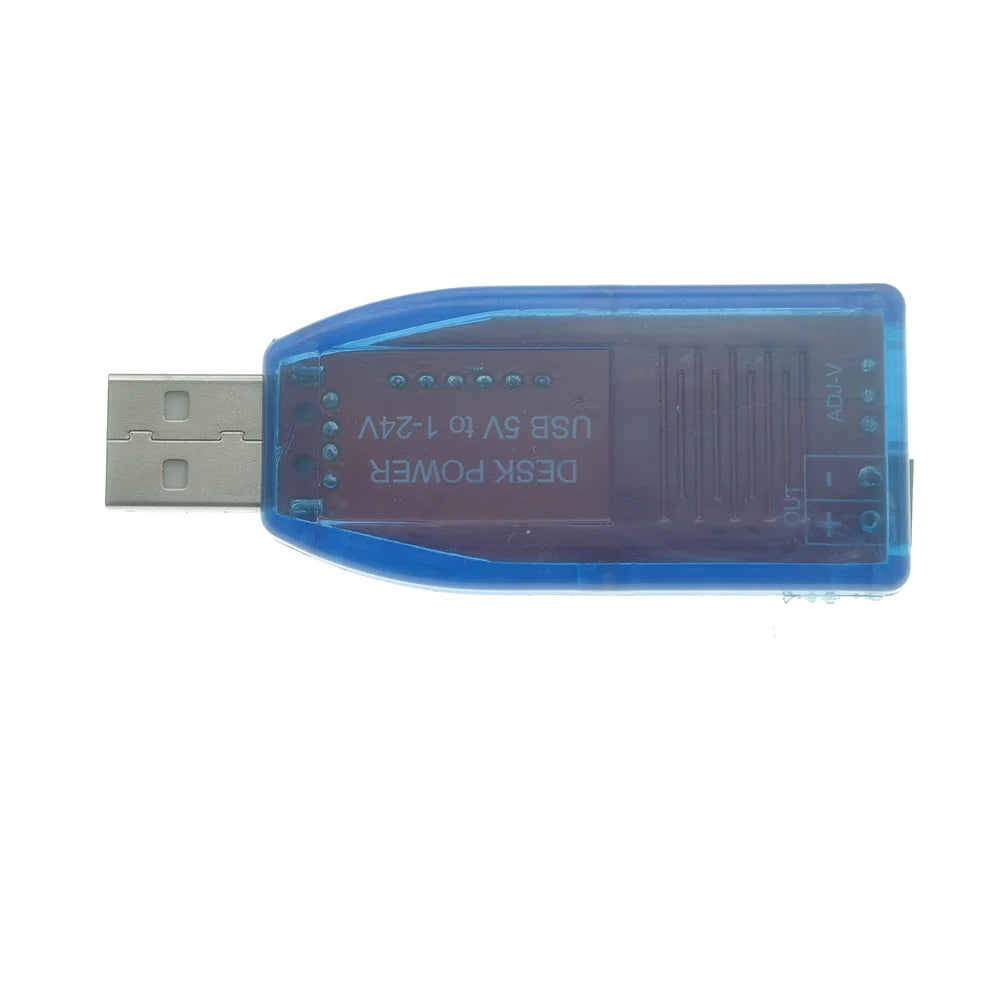

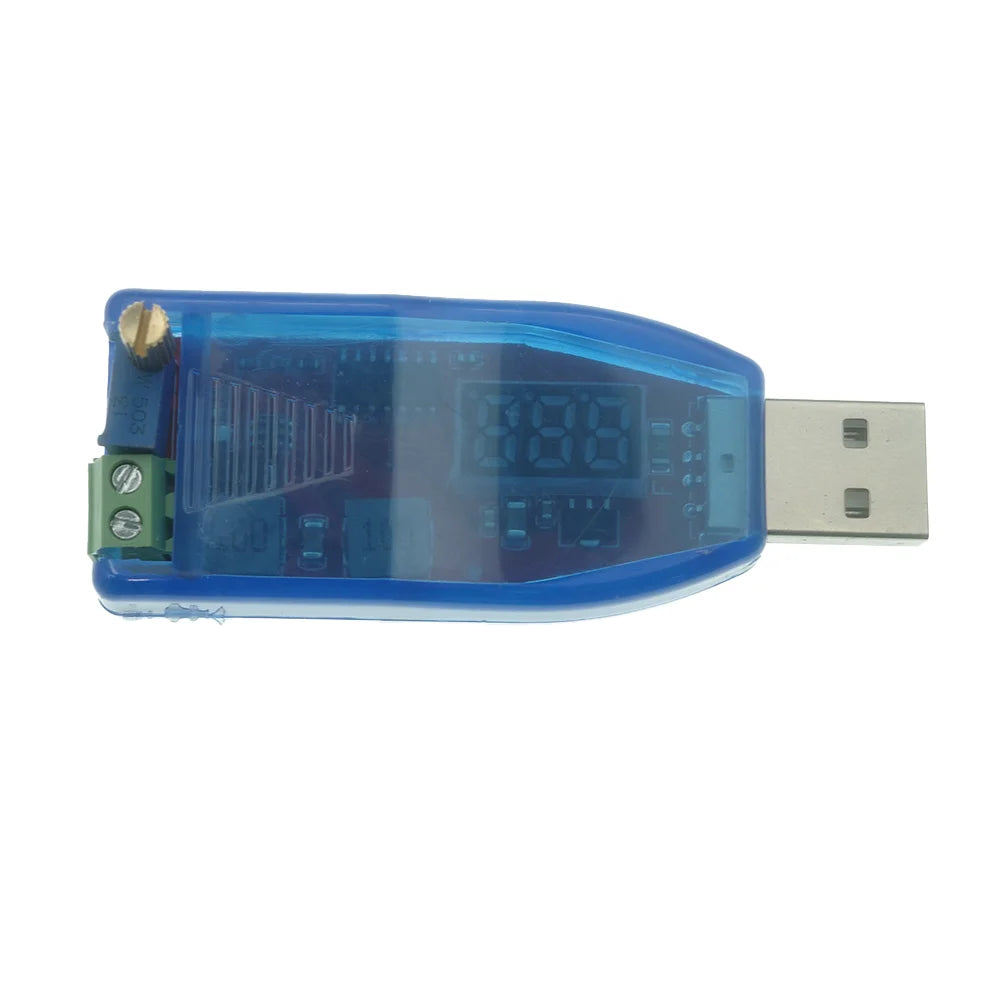

The module is a DC adjustable step up/down power supply module with 3Bit LED digitaltube display. Display output voltage in real time. Rotate potentiometer to adjust outputvoltage. Set output voltage to meet the require. It can be used as ordinary buck powersupply module. Simple and efficient, practical.

Feature
Low power supply
Wide voltage output
Support boost and buck
Long handle potentiometer adiustment

Parameter
Input Voltage: DC 5V
Output Voltage: DC 1.0V-24.0V
Output Power: 3W(Max)
Conversion efficiency:94%
Working current: 30mA
Working Temperature range:-20C~85CWorking Humidity range: 0%-95%RH
Size:70*26*22mm

USAGE
Input DC 5V from USB male socket:

Adjust output voltage by potentiometer to meet require:

Remove input voltage
Connect load at output terminal;
Re-connect power ON and enjoy using

NOTE
Please don't short output
lts maximum output power is 3W, which cannot exceed.
Please read use manual and description before use.

APPLICATION
Ordinary power supply
Battery charger
LED drive power
Instrument voltage display
Test meter
Circuit test
Power conversion
