WT32-ETH01 Embedded Serial Port Networking Ethernet Bluetooth-Compatible WIFI Combo Gateway MCU ESP32 Wireless Module Board
WT32-ETH01 Embedded Serial Port Networking Ethernet Bluetooth-Compatible WIFI Combo Gateway MCU ESP32 Wireless Module Board
Couldn't load pickup availability
SPECIFICATIONS
Application: Computer
Brand Name: NONE
Choice: yes
Condition: New
High-concerned chemical: none
Origin: Mainland China
Package: DIP
Supply Voltage: 5V
Type: Module
is_customized: Yes
WT32-ETH01 Embedded Serial Port Networking Ethernet Bluetooth WIFI MCU Module ESP32 Wireless Combo Gateway Module Board

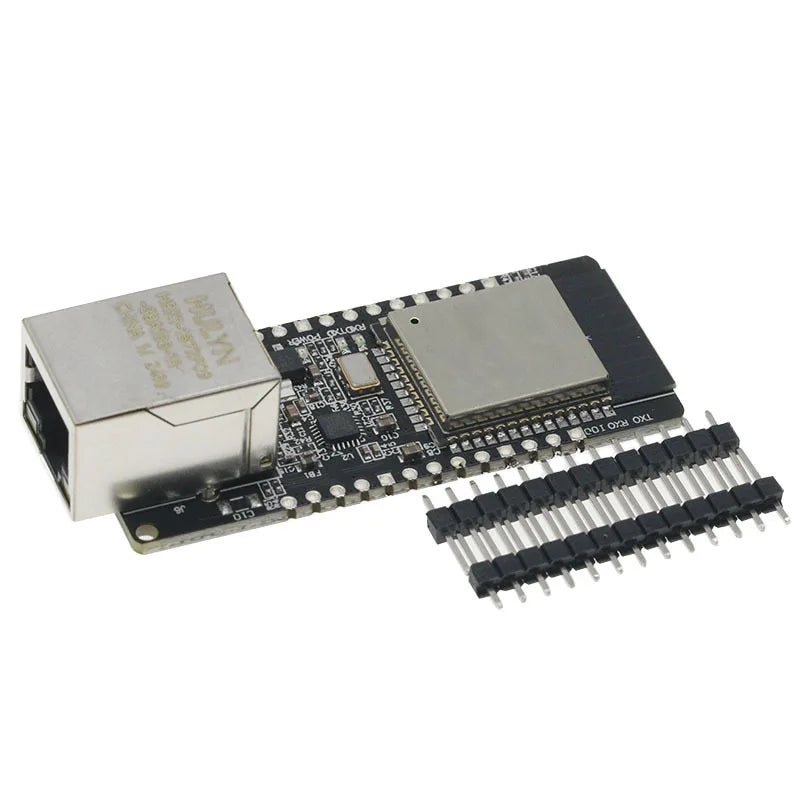

Note:it is not included pins
Main features of ETH 01 gateway:
Using dual-core Xtensa 832-bit LX6 microcontroller. Integrated SPI flash memory 32 Mbit\SRAM 520 KB
Support TCP server, TCP client, UDP server, UDP client working mode
Supports four data ports of serial port, wifl, Ethernet and Bluetooth to be combined in pairs, and data is transparently transmitted
Support to connect to the network via wired network or wifi to upgrade the firmware
Support wifi to connect to the Internet or LAN through the router, establish tcp/udp connection, and access the user's designated service
Device.
Support wired network access
Support user secondary development
Industrial grade working temperature range: -40~+85
Serial port baud rate: 80-5000000
Network protocol: IPv 4, tcp/udp
Software encryption: AES/RSA/ECC/SHA
