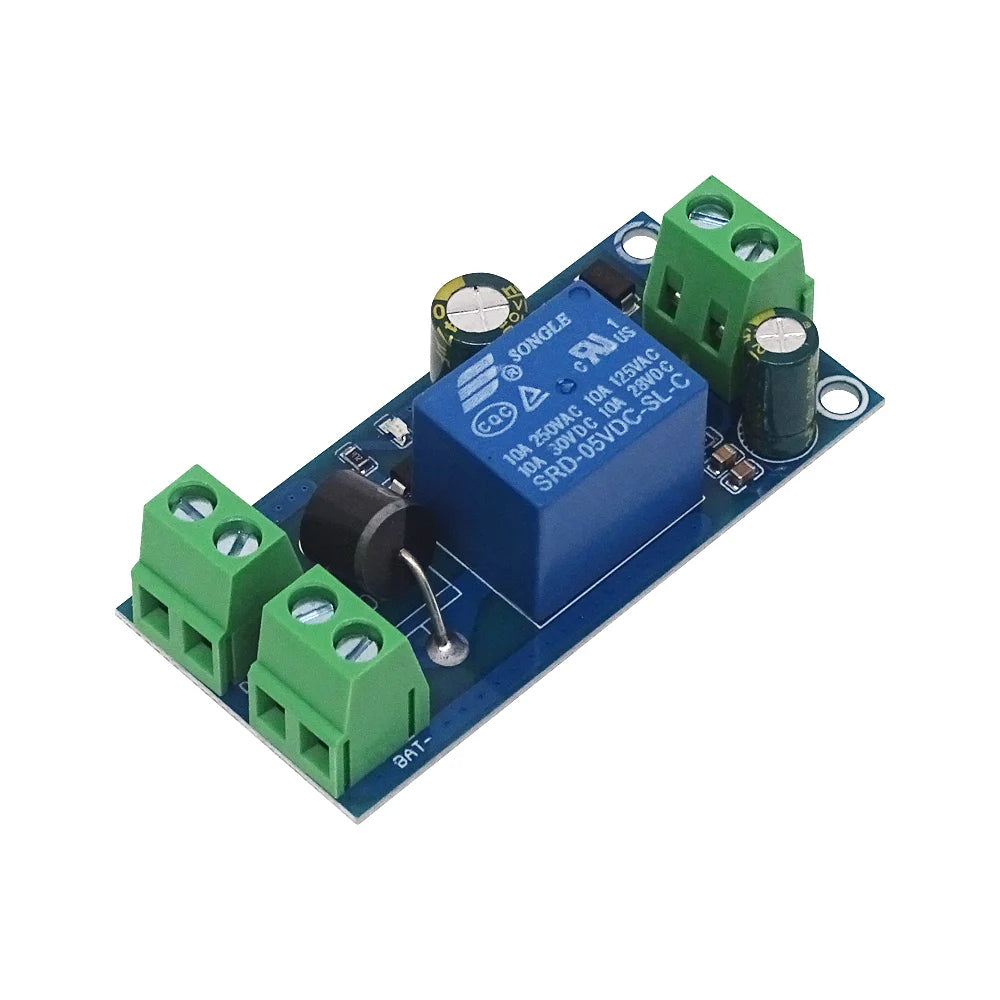

YX850 Power failure automatic switching standby battery lithium battery module DC 5V-48V universal emergency converter JY-850

YX850 Power failure automatic switching standby battery lithium battery module DC 5V-48V universal emergency converter JY-850

Rs. 182.23 INR
Rs. 182.23 INR Rs. 182.23 INR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color

SPECIFICATIONS

Application: Computer

Brand Name: HZWDONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: SMD

Supply Voltage: 5-48V

Type: Timer

is_customized: Yes

Product Parameters

Product Name: power failure automatic switching module

Product model: YX850

Scope of application: DC5V-48V

Product load: 10A

Product size: 61*30*18mm (length * width * height)

Mounting hole size: 3mm

Installation hole spacing: 23mm

Product weight: about 22g

Connect the DC terminal to the battery for charging when there is power

The charging parameters have nothing to do with this module, but depend on your DC terminal, battery and load.

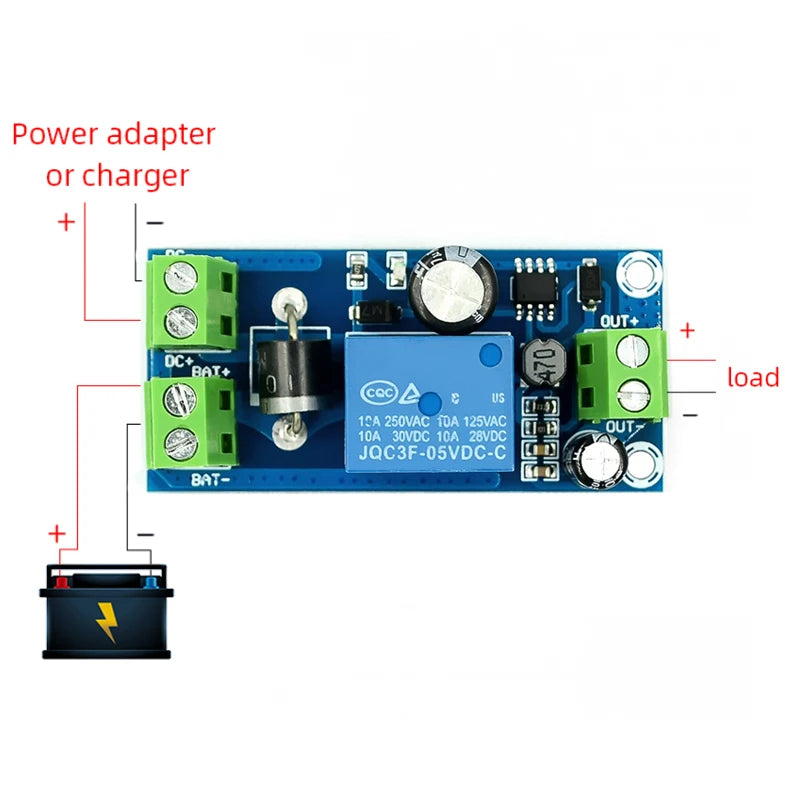

Product Wiring Example



Be Careful

1. power off for a few tenths of a second during switching.

2. the power supply, battery and load shall have the same voltage.

3. when there is power at the DC end, it is preferred to supply power to the load.

When the DC terminal is powered on, connect the battery for charging (the specific parameters confirmed by yourself have nothing to do with this module)

4. when there is no power at the DC end, the automatic battery will supply power to the load.
